Product Specifications
| Prod Model: |
PY-550D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Work Area(X*Y*Z): |
500/500/100mm |
| Max. Speed: |
0.1~800/500 mm/Sec |
| Resolution: |
0.01mm/Axis |
| Repetitive Positioning Accuracy: |
+/-0.01mm/Axis |
| Operation Interface: |
Handhold Control Box |
| Drive Mode: |
Micro Stepping Motor/Belt |
| Axis: |
3 or 4 Axis Available |
| Suitable Glue: |
All Kind of Glue, One or Two Components |
| Type: |
Automatic |
| Warranty: |
12 Months |
| Automatic Grade: |
Automatic |
| Gluing Mode: |
Automatic Paper Paste Gluing Machine |
| Glue Type: |
Hot Melt Adhesive |
| Application: |
Leather Belt |
| Driven Type: |
Electric |
| Packaging Type: |
Cartons |
| Packaging Material: |
All Kinds of Material |
Product Description

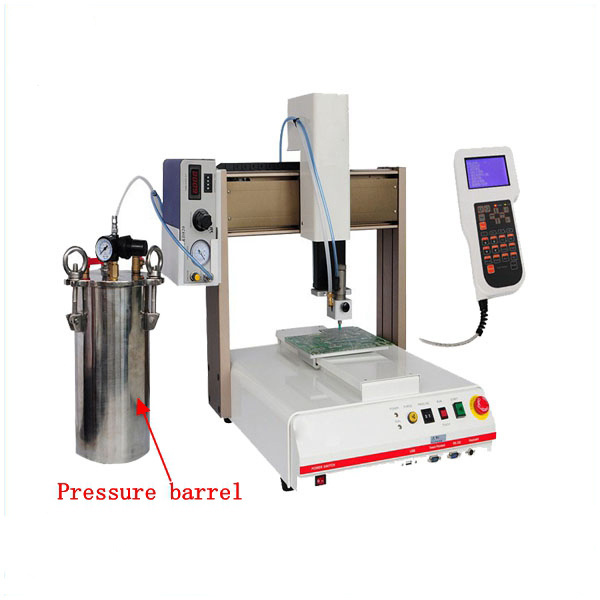

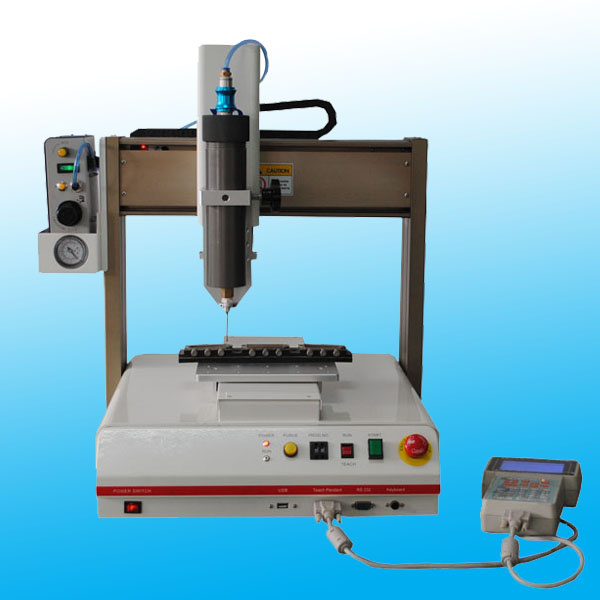

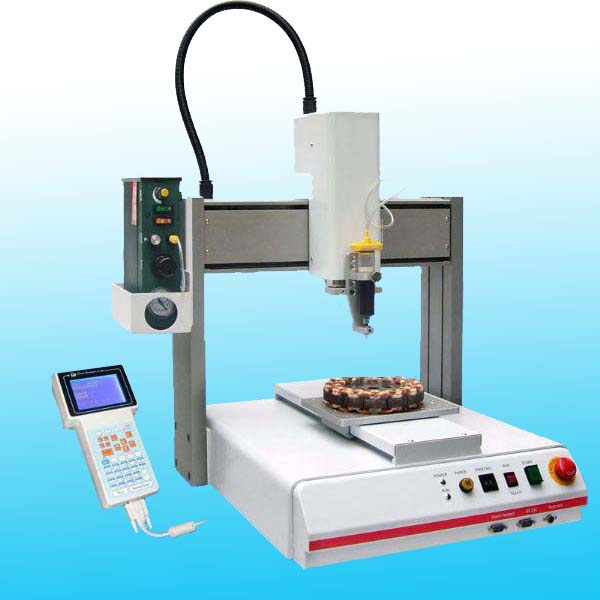

High Speed and Precision Desktop Glue Dispenser Desktop Glue Dispense is used to Chevrons, fridge magnets, key chains, power supply, cell phone, energy saving light, LED, DVD, DC, Switch, Connector, relay and other industries needing fluid glue solder.
Package and delivery Package: Wooden cases, suitable for a long distance shipment.
Delivery: In 15 days after order comfirmation
Features 1. English handhold control box, easy use.
2. Dispense points, lines, surface, circles, arc, irregular curves, three axis controllable.
3. The software has array, horizontal move and rotate operation function.
4. Can set the glue amount, speed and time etc. Stable glue flow and no leaking.
5. Four barrels work at the same time to improve efficiency.
Suitable liquids
Various solvents, adhesives, paints, chemical materials, including silicone glue, etc., EMI conductive glue, UV glue, AB glue, fast rubber, epoxy adhesive, sealant, hot glue, grease, silver plastic, red plastic, paste, thermal grease, anti-paste, lacquer, screw fixation agent, wood glue, anaerobic adhesive, acrylic plastic, wear rubber, Crystal, potting compound, plastic horn, blink ring, rubber paint, enamels, lacquers, inks, paints and so on.
| Model | PY-220D | PY-330D | PY-440D | PY-550D |
| Work area (X/Y/Z)mm | 200*200*50 | 300*300*100 | 400*400*100 | 500*500*100 |
| Max. speed(mm/see) | 0.1~500/350 | 0.1~800/500 | 0.1~800/500 | 0.1~800/500 |
| Dimensions(W*D*H mm) | 385*380*500 | 485*505*610 | 585*610*610 | 685*700*660 |
| Load Yaxis/Aaxis | 5kg/3kg | 10kg/5kg | 10kg/5kg | 10kg/5kg |
| Resolution | 0.01mm/Axis |
| Repeatability | +/-0.01mm/Axis |
| Program capacity | Min 100group,4000paints/group |
| Operation interface | LCD touch panel/Handhold control box |
| Drive mode | Micro stepping motor/belt |
| Control method | PTP&CP |
| Control method | 3 axis or 4 axis |
| Signals port | 8 Inputs/8 Outputs |
| Net weight | 23kg | 34kg | 41kg | 52kg |
| Operation environment | Humidity:20-90% RH, Temperature:0-40°C |
| Date storage type | CF Card |
| Power | AC220V 50-60HZ 0.8KW |
