High Reliability 180W/M-K~210W/M-K Thermal Conductivity Aln Thermal Pad
| Price: |
US $ 1.5-2.1/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
T/T,Western Union,Paypal,Money Gram |
Product Specifications
| Prod Model: |
TC-027 |
| Breakdown Voltage Strength: |
15kv/mm |
| Specific Gravity: |
>=3.6g/cm3 |
| Hardness: |
>=88hra |
| Thermal Conductivity: |
180~230W/M.K |
| Usage: |
High Power Devices |
| Shape: |
Sheet Type |
| Sinterling Temp: |
1780-1880 Degree |
| Name: |
Aluminum Nitride Ceramic Substrate |
| Application: |
Switch Baseplate |
| Type: |
Insulation Sheet |
| Chemistry: |
Organic Insulation |
| Material: |
Ceramic |
| Thermal Rating: |
250 250 |
| Maximum Voltage: |
20KV~100KV |
| Brand: |
Jrft |
Product Description

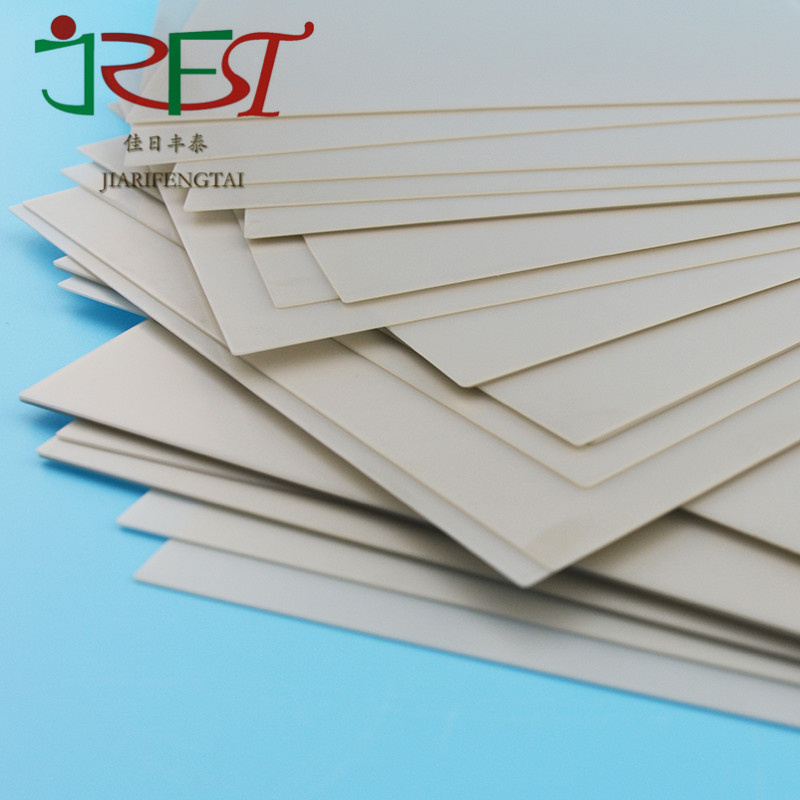

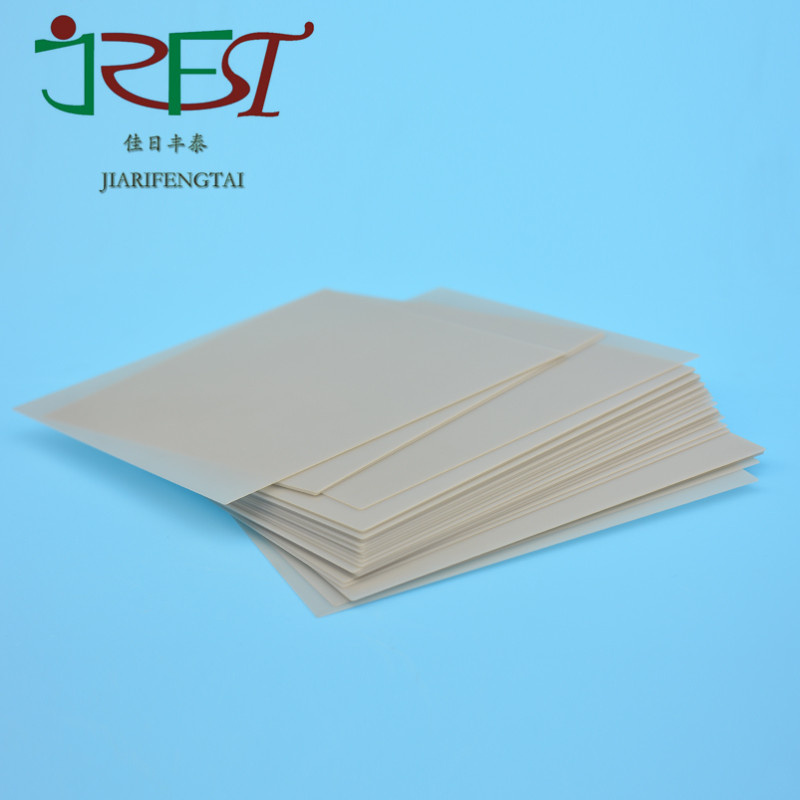

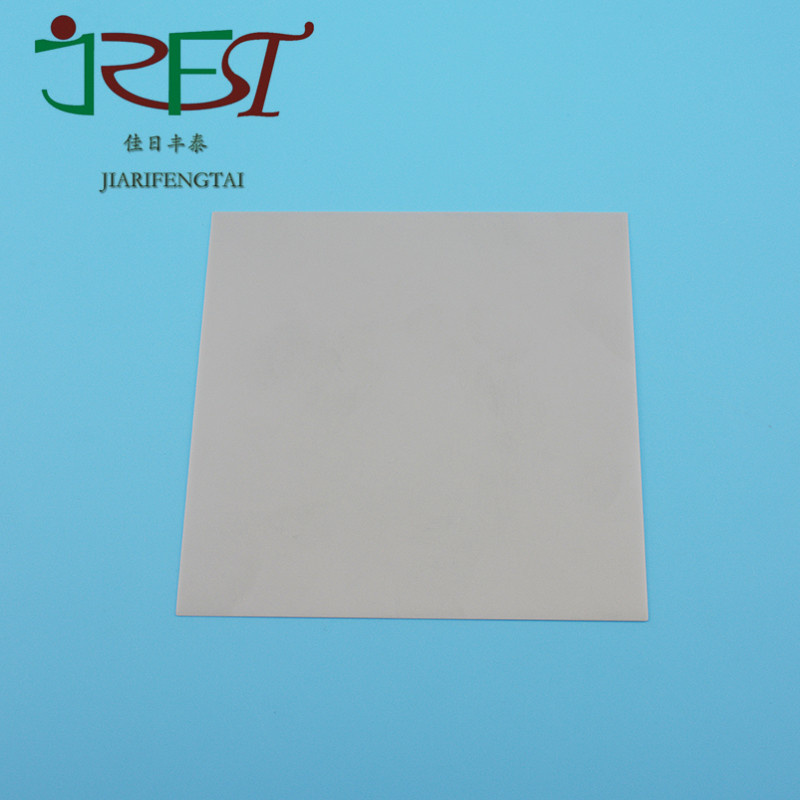

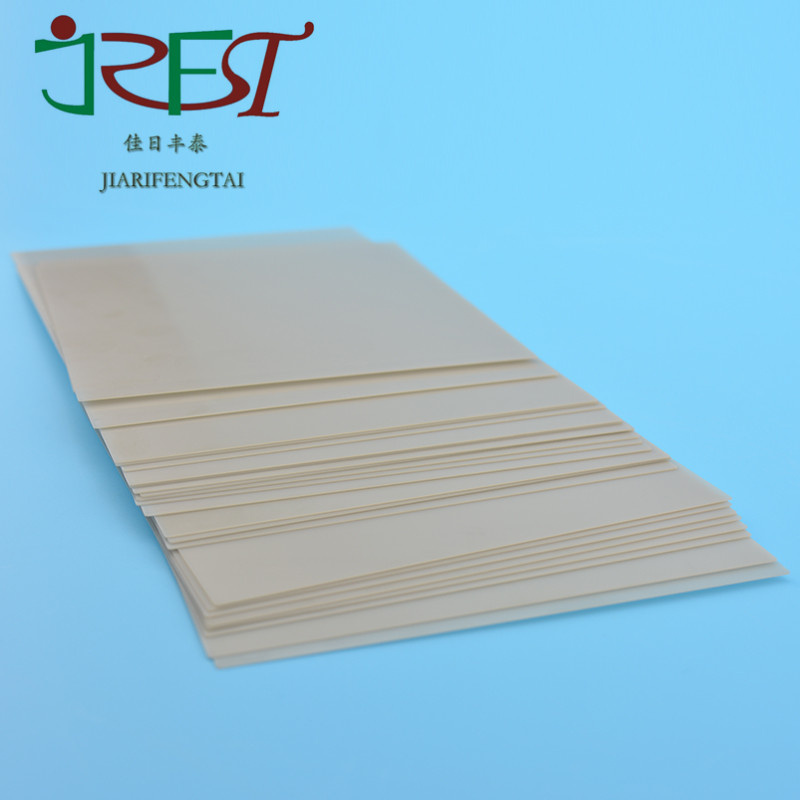

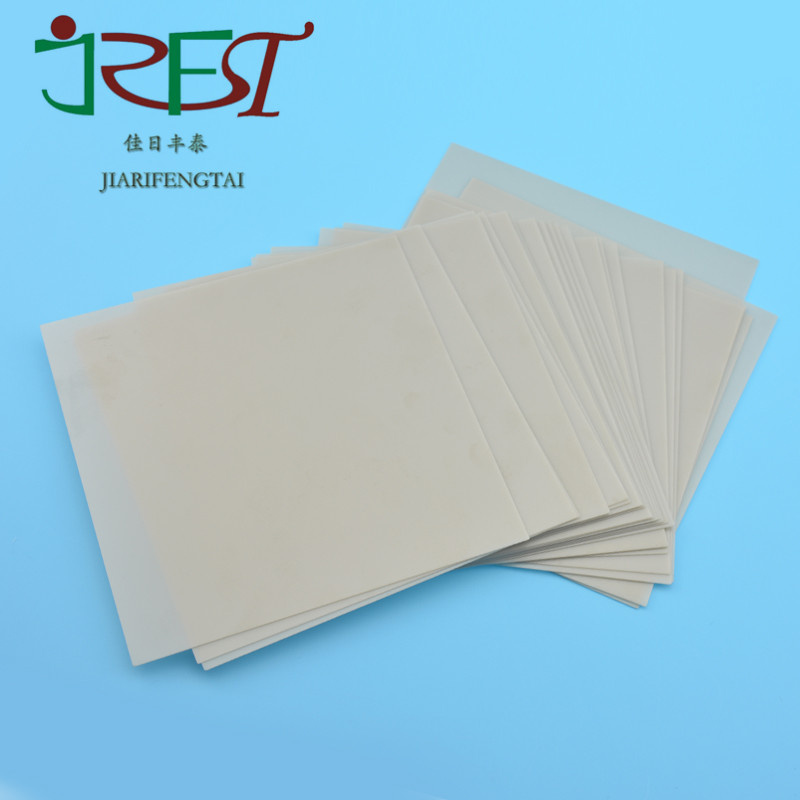

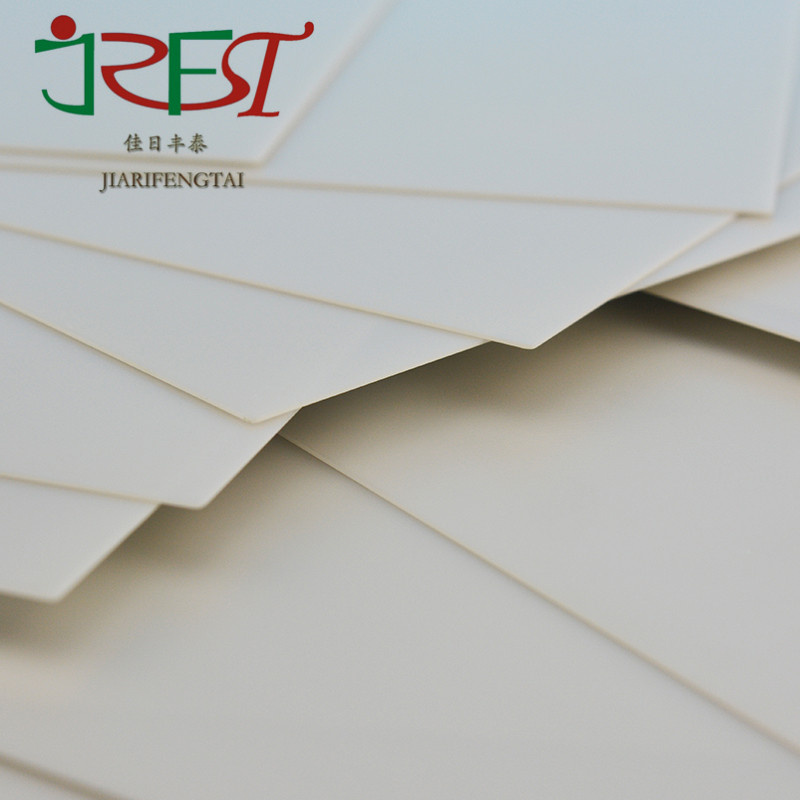

High thermal conductivity aluminum nitride cermaic insulation substrateProduct IntroductionAluminum nitride ceramic thermal plate, high thermal conductivity, low coefficient of expansion, high Strength, high temperature resistance, chemical resistance, high resistivity , low dielectric loss, is the ideal LSI heat dissipation board and packaging materials.Aluminum nitride ceramic plate use heat resistant melt erosion and thermal shock resistance,Can produce GaAs crystal crucible, Al evaporation pan, MHD power generation equipment and highTemperature turbine corrosion resistant parts, using its optical properties can be used as an infrared Window.
Aluminum Nitride Applications1.Heat sinks & heat spreaders 2.Electrical insulators for lasers
3.Chucks, clamp rings for semiconductor processing equipment
4.Electrical insulators 5.Silicon wafer handling and processing
6.Substrates & insulators for microelectronic devices & opto electronic devices
7.Substrates for electronic packages 8.Chip carriers for sensors and detectors
9.Chiplets 10.Collets 11.Laser heat management components
12.Molten metal fixtures 13.Packages for microwave devices
Feature:1.High hardness , diversity 2.High precision and density
3.High reliability and stability 4.High thermal conductivity
5.Extremely abrasive resistance performance 6.Wide scope of application
| PROPERTIES PARAMETERS |
| Test Item/Unit | Numerical Value | Test Item/Unit | Numerical Value |
| Material | AIN | AIN | Al2O3 | Material | AIN | AIN | Al2O3 |
| Volume Density (g/cm3) | 3.335 | 3.32 | 3.6 | Volume Resistance (Ω.cm) | 1.4×1014 | 1.4×1013 | 1.4×1014 |
| Thermal Shock Resistance | None Crack | Bending Strength (Mpa) | 382.7 | 335 | 380 |
| Chemical Stability (mg/cm3) | 0.97 | 0.97 | 0.97 | Thermal Expansivity (/ºC,5ºC/min,20~300ºC) | 2.805×10.6 | 2.805×10.6 | 6.9×10.6 |
| Breakdown Voltage Strength(kv/mm) | 18.45 | 18.45 | 15 | Roughness Ra(μm) | 0.3~0.5 | 0.3~0.5 | 0.2~0.4 |
| Dielectric Constant (1MHz) | 8.56 | 8.56 | 9.5 | Thermal Conductivity(W/m-k) | 180~190 | 190~210 | 20 |
| Color | Dark Gray | Dark Gray | White | Varpage (length‰) | ≤2‰ | ≤2‰ | Class |
Product specifications:Regular size and models :
0.38mm*114mm*114mm 0.38mm*120mm*120mm
0.5mm*114mm*114mm 0.5mm*120mm*120mm 0.635mm*17mm*12mm 1.0mm*17mm*22mm
1.0mm*140mm*140mm 3.0mm*114mm*114mmSpecial size could be customized.
