Product Specifications
| Prod Model: |
YH--1325 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engraving Machine Type: |
CNC Engraving Machine |
| Usage: |
Woodworking |
| Control: |
CNC |
| Current: |
AC |
| Laser Type: |
No Laser |
| Working Size: |
1250*2500mm |
Product Description

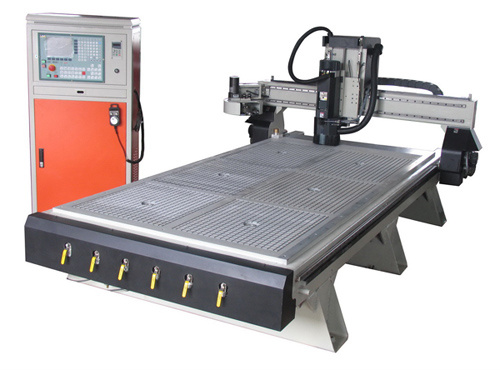

1325 wood cnc router
Details:
1. The machine is a special economic type processing center, with a paltoon type knife library. The main electric parts adopting intermational leading components.
2. The power of import bearings water cooling broach spindle, low noise and durable service life.
3. Three axis imported linear party rail, high-speed gear rack drive X Y, Z imported the ball screw, smooth operation, carving precision is high.
4. Three shaft axis adopt high power high-speed bass error rate very low servo drives and motors, accurate positioning, smooth operation
5. Standard integrated control system, adopting 7 inch LED display, with the high cost-effective and high reliability. System based on WinCE operation platform, free virus, no maintenance, simple
NC/ENG/DXF and so no many kinds of processing documents, support breakpoint resume, ball screw error compensation and so no many kinds of senior function. The keyboard keys using imported micro switch, the service life is long.
6. Lathe bed the thick wall square tube welding and become, after the giant LongMenBao processing, distort strong and durable.
7. Note oil system can effectively to carving machine transmission part of lubrication, enhances the machine service life.
8. Equipped with spindle temperature display, can be clear at a glance see clear respectively spindle temperature, but fundamental avoid high temperature and reduce the spindle for service life.
Applicable industry
This machine is especially suitable for carpenter, wooden door, furniture, cabinets, mould etc of various materials to the lot processing.
Strong Service Support:
10 year's exporting experience help you with professional documentaries, shipping matters, importing guidance and timely follow-up notice. Make you whole process worry-free!
One year warranty! Online skill training till you can operate! Professional technician provide with lifelong support to make you feel worry-free to use, buy and profit!
Performance indicators
| YH-6015 | YH-1212 | YH -1315 | YH -1325 |
Size Platform
| 700×1450mm | 1300x1450 | 1350×1750mm | 1250*2500mm |
X, Y-axis stroke
| 60×1200mm | 1200x1200mm | 1200×1500mm |
|
Z-axis stroke
| >100mm | >110mm | >110mm | >110mm |
Spindle
| 2.2KW |
The maximum
road speed
| 4-5m/min |
The maximum speed carving
| 2-3m/min |
Resolution
| 0.005mm |
Repeat positioning accuracy
| 0.005mm |
Feeding the maximum high
| 150mm |
Carving instructions
| G code*.u00*.mmg* plt |
Operating System
| windows98/2000/xp |
Power (non-spindle)
| 600W |
Voltage
| AC220V/50Hz |
Spindle power
| 2.2-4.4KW |
Spindle Speed
| 0-24000rpm/min |
Work methods
| Stepping |
