High Quality PVD Coating Machine for Door Handle, Door Knob

High Quality PVD Coating Machine for Door Handle, Door Knob
Price: NegotiableSet
Min Order: 1Set
Pay Type: L/C,T/T

Product Specifications

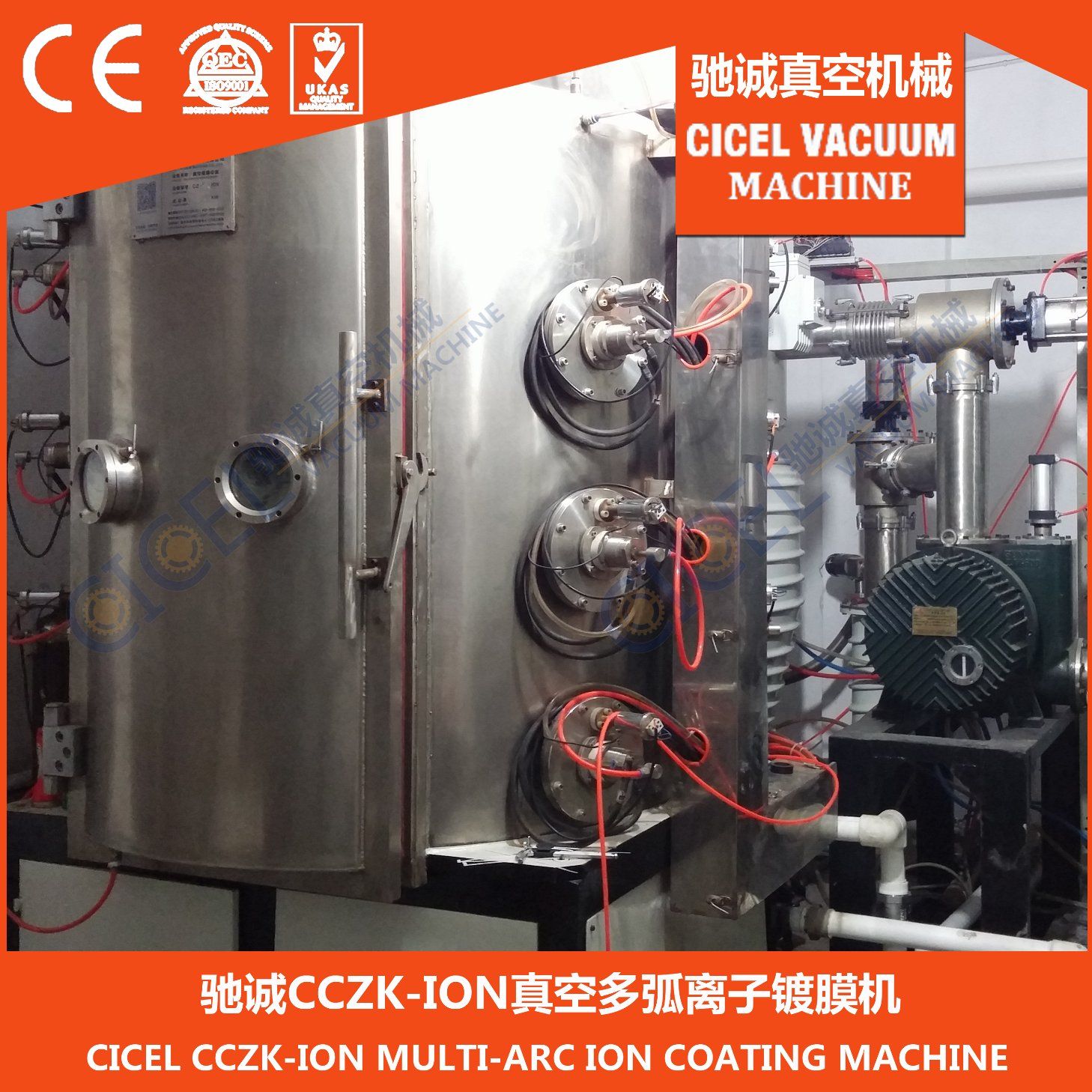

Prod Model: CCZK-ION
Machine Type: Stainless Steel Multi-Arc Ion PVD Coating Machine
Chamber Size: Can Be Customized According to Details Requirement
Application: Sanitary Ware,Stainless Steel Plate,Hard Ware,etc
Coating Color: Golden, Rose Gold,Black,Blue,Rainbow Color,etc
Coating Film: Tin, Tic, Ticn, Tialn, Crn, Cu, etc
Sputtering Target: Titanium, Chrome,Zirconium,Titanium Aluminium ,etc
Gas: Nitrogen,Argon,Oxygen,Acetylene
Voltage: 380 V or as Request
Package: Wooden Package or as Request
After Sales: Free Training & Oversease After Sales Available
Type: Coating Production Line
Coating: Vacuum Coating
Substrate: Stainless Steel ,Glass, Metal, Ceramic, Crystal

Product Description

high quality PVD coating machine for door handle, door knob

What is PVD Vacuum metalizing?How PVD Vacuum metalizing is done?

COATING PROCESS:
Parts are sprayed with a basecoat (becoming obsolete in new technology with highly polished molds using amorphous materials).
Parts are racked, racks put into the chamber, the chamber is then sealed.
Argon gas( or other gas) is introduced into the chamber in a continuously flowing manner.
Electricity creates an active Argon plasma field in front of the cathode. (The cathode is an assembly which contains magnets and provides a mounting for the target - a plate of the material which will be deposited. The magnets are located behind the target.)
The positively charged (ionized) Argon atoms are accelerated by passing through a magnetic field  (created by magnets inside the cathode).
The positive atoms are attracted to the negative charged cathode which contains the target.
The target is bombarded with each ion particle, they individually break off ("chip") an atom of the target material with each collision (target hit continuously).
Continuous (and directed) sputteing of tghe release target atoms are "shot" onto the surface of the part  (direction is assisted by the magnetic field - perpendicular to the target.
The basecoat material/paint (or high gloss amorphous part) provides a smooth surface for the atoms to be deposited together and build up on the part.
The part is top coated with HMDSO (in monomer form, polymerized by passing through a plasma created by high voltage rods - the polymer condensates onto the coating surface).
The chamber is vented and parts removed/reloaded.


Why PVD Vacuum metalizing?
  • Dramatic Improvement in Tool Life
  • Minimal Dimensional Changes
  • Low Maintenance
  • Higher Speeds & Feeds
  • Protects Against Corrosion
  • Strip & Recoat Multiple Times
  • Resistant to Chemicals
  • Environmentally Safe
  • High Heat Resistance
  • Reduced Friction
  • Uniform Coating
  • Decorative Colors
  • Low Coating Temperature for Sensitive Parts
  • Excellent Adhesion

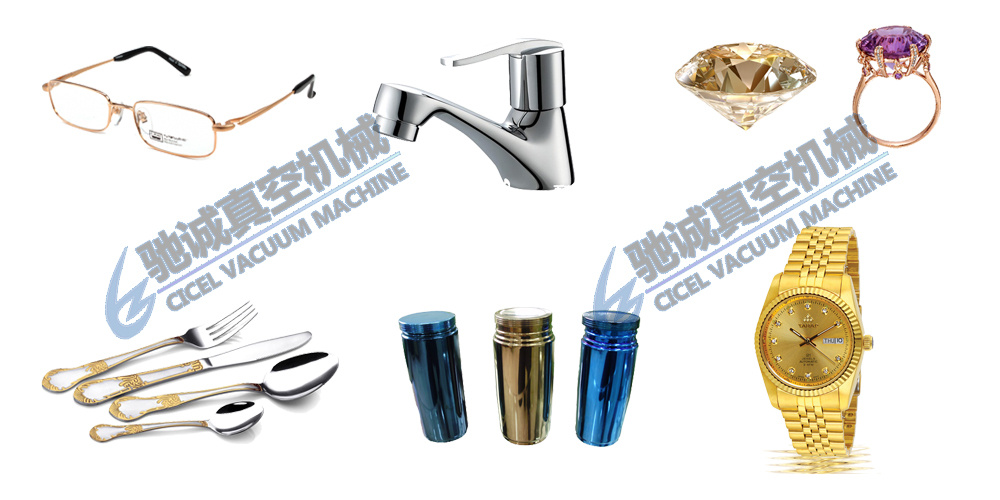

Applications
Vacuum metallizing process is used for decorative metallic finishes, EMI/RFI Shielding, and Reflective coatings on plastic, glass, and metal substrates.

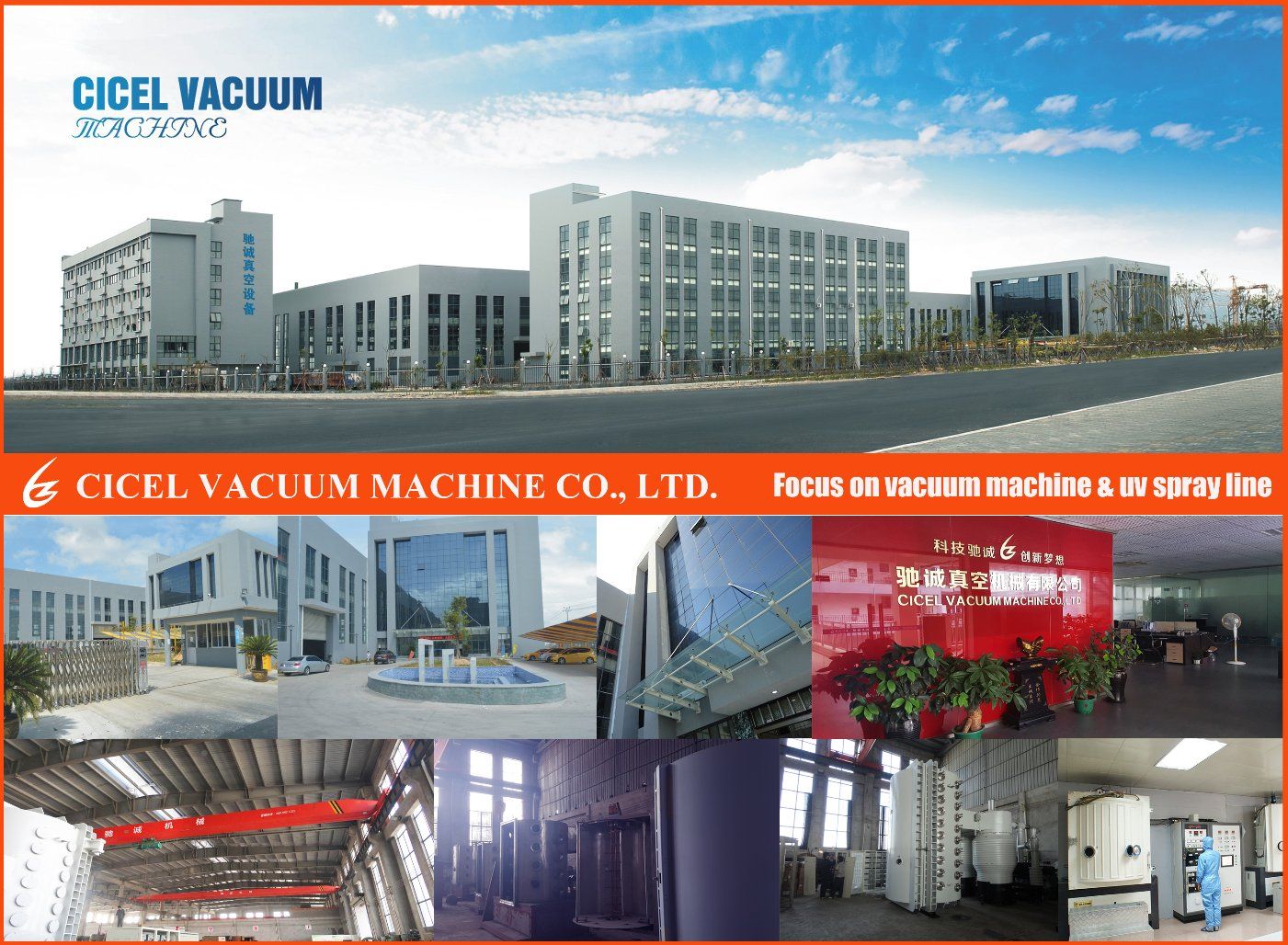

Our factory

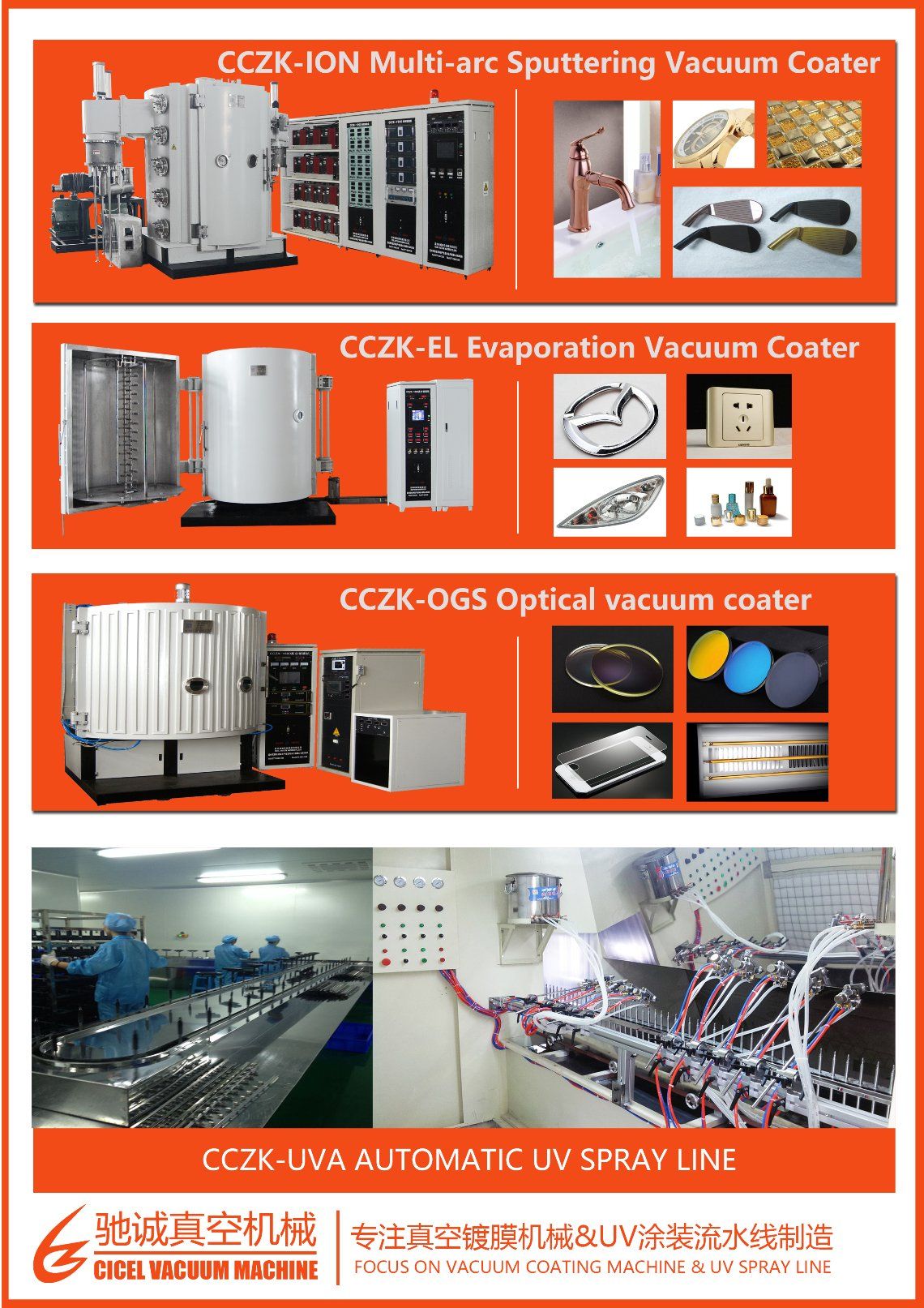

Our products

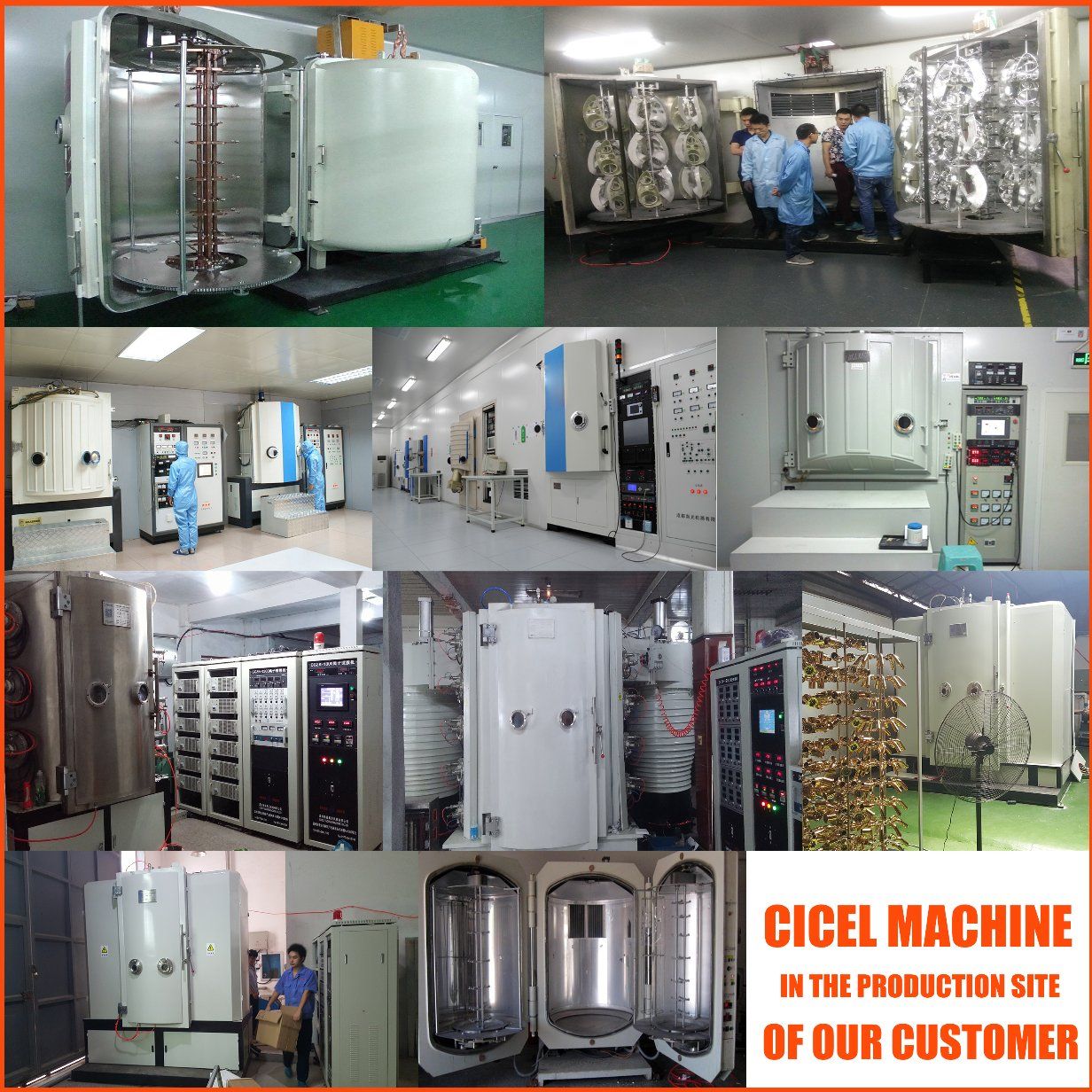

Our customer






Delivery picture


Support Service & Philosophy
At CICEL, we stand behind our systems with a dedicated service team who can diagnose and provide support when required, allowing you to maximize the return on your investment. Some of the parts and services that we offer include: Our dedicated service team is available 24/7 to provide superior service and to meet the needs of our customers.  From the initial installation and training to providing maintenance on existing equipment, we are here for you.
Contact us for more information on PVD vacuum Coatings machine or to request a quote



Innovators in Physical Vapor Deposition (PVD) Coating Machine and Systems

For almost decade years, Cicel vacuum machine Col, Ltd. has been an industry leader in vacuum coating equipment. We provide PVD coating machine, magnetron sputtering vacuum coating equipment, plastic vacuum metalizing machine, optical electron beam coating machine, automatic UV spray line, etc. All of our vacuum coating machine and UV spray line has passed the EU CE certificated.

We are committed to developing long-term relationships with our customers from abroad and domestic, and strive to provide the highest possible levels of satisfaction through our innovative vacuum machines and services.

To learn more about our vacuum metalizing machines and services, please just feel free to contact us at anytime.
