Product Specifications
| Prod Model: |
HST 01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe |
| 1220 X 1830mm, 1220 X 2440mm, 2050 X 30: |
Color: Clear, Milky, Opal, Black, Red, Blue, Yello |
| Material: |
Acrylic |
Product Description
WHY CHOOSE US?
Imported glass models (from Pilkington Glass in U. K. ), Taiwan production line, 100% pure raw Lucite material.
Available in a wide variety of standard sheet sizes and thickness and custom sheet sizes up to
HAIYAN HUASHUAITE PLASTIC APPLIANCES CO., LTD
MEASURE LIST CAST ACRYLIC SHEET
Note : :this thickness we don't have suitable model |
| THICKNESS | R (mm) | M (mm) | M1 (mm) | J (mm) | E (mm) | K (mm) | V (mm) | V1 (mm) | V2 (mm) |
| 2mm-2.9mm |
|
|
|
|
|
|
|
|
|
| 3mm-6mm | 2160*2660 | 2160*3160 | 2050*3050 | 1600*2560 | 1540*3040 | 2050*2400 | 2020*2100 | 2100*2140 | 1930*1970 |
| 7mm-10mm | 2150*2650 | 2150*3150 | 2040*3040 | 1590*2550 | 1530*3030 | 2040*2390 | 2010*2090 | 2090*2130 | 1920*1960 |
| 11mm-13mm | 2140*2640 | 2140*3140 | 2030*3030 | 1580*2540 | 1520*3020 | 2030*2380 | 2000*2080 | 2080*2120 | 1910*1950 |
| 15mm-19mm | 2130*2630 | 2130*3130 | 2020*3020 | 1570*2530 | 1510*3010 | 2020*2370 | 1990*2070 | 2070*2110 | 1900*1940 |
| 20mm--24mm | 2120*2620 | 2120*3120 | 2010*3010 | 1560*2520 | 1500*3000 | 2010*2360 | 1980*2060 | 2060*2100 | 1900*1940 |
| 25mm | 2090*2590 | 2090*3090 | 1980*2980 | 1530*2490 | 1470*2970 | 1980*2330 | 1950*2030 | 2030*2070 | 1900*1940 |
| THICKNESS | T (mm) | T1 (mm) | Q (mm) | L (mm) | H(mm) | H1(mm) | LI(mm) | F1(mm) | Y(mm) |
| 2mm-2.9mm | 1090*2050 | 1080*2060 | 1270*1880 | 1260*2480 | 1390*2610 | 1390*2510 |
| 1190*2340 |
|
| 3mm-6mm | 1080*2040 | 1070*2050 | 1260*1870 | 1250*2470 | 1380*2600 | 1380*2500 | 1290*2490 | 1180*2330 | 1750*1950 |
| 7mm-10mm | 1070*2030 | 1060*2040 | 1250*1850 | 1240*2460 | 1370*2590 | 1370*2490 | 1280*2480 | 1170*2320 | 1740*1940 |
| 11mm-13mm |
|
| 1240*1850 | 1230*2450 | 1360*2580 | 1360*2480 | 1270*2470 |
| 1730*1930 |
| 15mm-19mm |
|
| 1230*1840 | 1220*2440 | 1350*2570 | 1350*2470 |
|
| 1710*1910 |
| 20mm--24mm |
|
| 1220*1830 | 1210*2430 | 1340*2560 | 1340*2460 |
|
| 1680*1880 |
| 25mm |
|
| 1190*1800 | 1180*2440 | 1310*2530 | 1310*2430 |
|
|
|
Florescence plexiglass
What is Acrylic?
Acrylic sheet is named PMMA sheet, Plexiglass or Organic glass sheet. The Chemical name is Polymethyl methacrylate. Acrylic holds the physical properties among plastics due to the excellent transparency which sparkling &transparent like crystal,it is praised as "Queen of Plastics" and is very delighted by the processors.
The term "acrylic" is used for products that contain a substance derived from acrylic acid or a related compound. Most often, it is used to describe a clear, Transparent Colored Plastic Sheets glass-like plastic known as poly(methyl) methacrylate (PMMA). PMMA, also called acrylic glass, has properties that make it a better choice for many products that might otherwise be made of glass.
Product Information

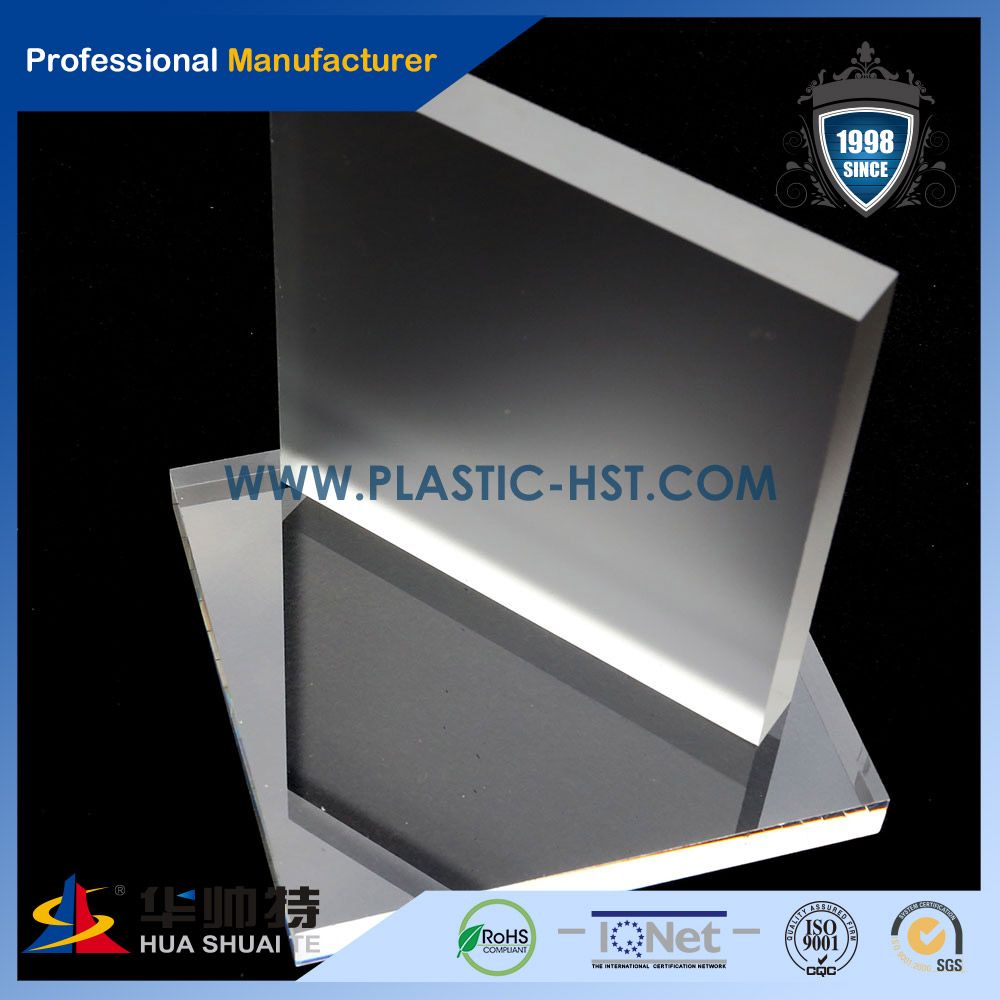

Item:PMMA Sheet / Perspex Sheet / Plexiglass Sheet / Cast Acrylic sheet
Material:PMMA
Type:Led Advertising Light Board
Color:Various colors available, clear, transparent, translucent, opaque, milky white, black, red, yellow, green,fluorescent,etc.
Thickness:2—100mm
Feature:Energy-saving, easy-cleaning and durably-using
Application:Advertising, decoration, sign, furniture, sanitary appliance, handicraft, lamp-box, etc.
Certificate:SGS, ROSH,ISO9001
Shipping & Payment
MOQ:45 pieces for each color / totally 2 tons
Packing Methods:
Inner Package: Kraft paper or PE film covered on both sides
Outer Package:Pallet or wooden case
Delivery Date:15 days after down payment on our account
Delivery Clause: FOB Shanghai or Ningbo
Payment terms:T/T L/C
Characteristics
Led Advertising Light Board is a lightweight substitute for glass that has better optical quality and is more economical. It provides low distortion and will not yellow after prolonged exposure to sunlight. It offers four times more impact resistance than glass.
Excellent light transmittance up to 93% with high gloss
Excellent resistance to weather, anti-UV, and easy to clean
Good processability, suitable for mechanical process and thermal-forming
Good resistance to impact and chemical corrosion
Easily dyed and suitable for surface decoration such as spraying, silkscreen printing, vacuum coating ,etc.
Excellent surface hardness as aluminum alloy and anti-scratch
Excellent stability during 40 degrees below zero to 90 degrees
Production Flow
Loading Pictures
| Item name | Cast Acrylic Sheet /PMMA sheet |
| Packaging | Both sides covered by PE films or kraft paper |
| MOQ | 3 tons |
| Delivery time | Within 15 workdays |
| Certification | ISO9001& SGS & ROSH |
| Color & OEM | As your requirement, all kinds of color are avaible. OEM are welcome. |
| Shipping Terms | FOB/CRF/CIF |
| Payment Terms | T/T 30% desposite.70% at sight of B/L copy |
| HS Code | 3921510000 |
Established in 1998, Haiyan Huashuaite Plastics Electric Appliance Co., Ltd. is a leading Chinese producer of polycarbonate, PC sheet, PVC foam sheet and PVC profiles. All of our products are manufactured in line with ISO9001, ROTHS and SGS requirements and feature numerous advantages over traditional building materials including age resistance, impact resistance and durability.
Our company employs 250 staff members, including 58 technicians, and has always focused on the application of technology to improve product quality and development. Furthermore, we have 7 imported polycarbonate sheet production lines, 30 PVC profile extrusion lines from Germany and Italy. And 1 cast acrylic sheet line from England.
with quality viewed as the life of our enterprise, we utilize our team of quality inspectors and advanced apparatus to maintain the quality of our products throughout our entire production process. Moreover, our products are currently being used in major projects including Daqing Oil Fields and 2008 Beijing Olympic Games fields and gyms.
Haiyan Huashuaite Plastics Electric Appliances Co., Ltd. Continuously strives to enhance our good reputation whilst perfecting our products, management techniques, processes and level of customer service. If you are interested in any of our products, or are searching for a supplier to fill your OEM order, please contact us to discuss your requirements.
