High Quality CO2 Laser Beam Expander 3X for Marker Machine
| Price: |
US $ 20-60/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
Product Specifications
| Prod Model: |
laser beam expander |
| Type: |
Convex Lens |
| Shape: |
Single-lens |
| Material: |
Zns Znse Si Ge CaF2 Mgf2 Baf2k9 Bk7 Uvfs |
| Coating: |
Ar Bbar |
Product Description
The laser beam expander mainly has two purposes: one is to expand the diameter of the laser beam;second is to reduce the divergence angle of the laser beam. The purpose in the laser device is to extend the diameter of the beam. Due to the smaller diameter of the laser beam produced by the laser generator, compared to a beam without the beam expander, the beam after the beam expander can be focused smaller. in laser marking machine, the beam expander is always used with flat scan lens, making the marking spot finer, more accurate marking.
There are two types to fix the beam expander, one is to use M22 threaded connection, another is to fix directly on the adjustment frame with screws.
the shape of the laser beam expander can be divided into two, one is straight type, the other is trumpet. in most cases, the shape won't affect the performance, the same magnification beam expander lens installed in two shape are the same, you can replace each other.
The straight beam expander supplied by link laser, can be used to connect in two ways. the usual way is to use screws to place it in the frame slider. when the cap at one end of the beam expander is removed, you can use the threaded connection.The most common type beam expander is derived from Galilean telescope which usually has one negative input lens and one positive output lens. The input lens presents a virtual beam focus at the output. For low expansion ratio, the Galilean telescope is most often employed due to simplicity, small package size and low cost. Beam expander is commonly used to magnify the laser diameter to be focused back in smaller spot size.

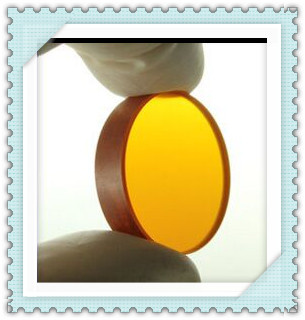

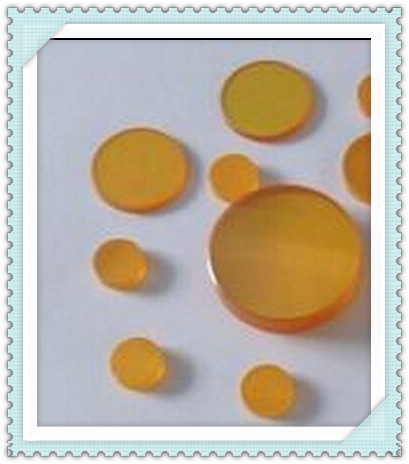

The absorbability of Zinc Selenide to the infrared wavelengths is low, and can flitter visible light, it is the top choice of beam expander lens.
Standard Beam Expander for CO2 Laser:| Dia(mm) | Magnification | Length(mm) | Input(mm) | Output(mm) | Wavelength
(μm) | Product Number | | 22.00 | 2 | 40 | 10 | 14 | 10.6 | ICC-BELZ0701 | | 25.00 | 3 | 52 | 10 | 18 | 10.6 | ICC-BELZ0702 | | 31.00 | 4 | 78.5 | 10 | 24 | 10.6 | ICC-BELZ0703 | | 33.00 | 5 | 105.5 | 10 | 26 | 10.6 | ICC-BELZ0704 | | 38.00 | 6 | 125 | 10 | 28 | 10.6 | ICC-BELZ0705 | | 45.00 | 8 | 150 | 10 | 29 | 10.6 | ICC-BELZ0706 |
|
Qinhuangdao Intrinsic Crsytal Technology Co., Ltd, based in China, is a recognized leader in high-performance optical solutions across a broad infrared spectrum. Combining adequate IR material supply, extensive fabricating experience, and the standardized service, U-Optical specializes in producing high-precision IR optical components for the Medical/Life Sciences, Defense & security, Semiconductor, and Industrial OEM markets. From optics designing, to material purchase, to volume production, our company endeavor to optimize your IR products for performance, cost, quality and delivery.
Our Strengths
Ample, stable and cost-efficient supply of IR materials.
ICC also offers the ability to combine infrared material supply, precision optical processes, various coating, reliable inspection and commercial service into a complete procedure, providing full professional support for both optics and trades. This enables our customers to obtain the highest level of optical integration and business advantage, minimizing time and cost while ensuring quality, performance and manufacturability.
Consistent and high-performance manufacturing
During its years of operational experience, ICC have developed unique techniques of micro-polishing which enable to easily produce elements needed for high transmission and low scattering and absorption applications.
The accumulated experience in the IR optics market, in addition to the high qualifications and strong optical background of the company's leading staff allow U-Optics to be a reliable supplier to many OEM customers and R&D institutions around the world.
Excellent quality and efficient service
From design to delivery, our material control, in-process testing and final inspections assure that our products meet your highest specifications and quality standards.
Our sales team possess a wide range of experience of not only optics, but also the international business services. By staying close to our customers and giving straightforward honest advice, we are confident to provide our overseas customers with the excellent IR products from China.
Competitive Prices
ICC can offer the customers with most competitive prices and high quality of products, supported by the close associations with the domestic suppliers, its comprehensive optical manufacturing capabilities, as well as its strong ability in exploring overseas markets.
Stable and reliable business partner
We place equal focus on processing technique, customer service and innovative research. Meanwhile, we create customer value by understanding customer needs, by unconditionally guaranteeing our work and by keeping abreast of customer developments.
Contact us today to discuss your needs. To my email: Optics@intrnsiccrysal. COM Tel: 18833844340
