Product Specifications
| Prod Model: |
Ck61125 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Maximum Diameter Of Lathe Bed: |
1250mm |
| Maximum Work-Piece Length: |
1000/1500/2000mm |
| Hole Diameter Of Spindle: |
130mm |
| Surface Roughness: |
Ra1.6 |
| Cone Hole Taper Tailstock's Sleeve: |
Mt6 |
| Resetting Accuracy: |
0.01mm |
| System: |
GSK,Siemens,Fanuc |
| Terminal Structure: |
C11 |
| Power Of Main Motor: |
15kw |
| Length Of Section Of Knife Handle: |
30*30mm |
| Type: |
Horizontal Lathe |
| Automatic Grade: |
Automatic |
| Precision: |
High Precision |
| Power Source: |
Electric |
| Setting Mode: |
Floor-type |
| Controlling Mode: |
CNC |
| Processing Accessory: |
Chuck CNC Lathe |
| Tool Holder: |
4/6/8/12 |
Product Description
Company information
Taian Crystal Machinery Co., Ltd., is a modern and high- tech company which is a professional manufacturer of CNC LATHE, CNC MILLING, CNC MACHINE CENTER . With 5,000sqm workshops and offices, we have more than 15 years experiences in cnc machine research and production.Our machines have been exported more than 40 countries.we welcome all customers and friends to come to our company!
Our guarantee1.We are cnc machine manufacrurer, can provid the high quality, competitive price and good after-sale service.
2.We have our own technical team, can provide the customized solutions according to your request.
3.We go the full 24-hour performance and accuracy test before shipment.
4.Warranty is one year; we would offer the parts. Quality problem is free of charge
during this period.
5.One year guarantee for whole machine expect of CNC system, which guarantee is
three years
6. 24 hours technical support e-mail.
7. User manual and detailed video.
Main feature1.horizontal flat bed structure;
2.spindle bore increase (φ130mm);
3.bed rail super audio quenching;
4.saddle and slide rails combined surface using "laminating" treatment;
5.using the servo drive;
6.precision ball screw, high rigidity precision composite bearing structure;
7.ball screw, rail joint surface with automatic forced lubrication;
8.there is a vertical four-station turret, six-position vertical, horizontal six-station and other options;
9.according to the requirements, to equip the manual, pneumatic, hydraulic chuck or manual, pneumatic, hydraulic tailstock.
10.the control system has GSK, Beijing KND, Guangtai NC, Siemens, FANUC other options.
11.the whole cast foot of the bed, the whole bed structure;
Standard configuration1.System:GSK928TD-L, servo motor and drive
2.Manual 3-jaw chuck, 4-station electric tool post.
3.Manual tailstock, Semi-Rugged
4.Cooling system;Lighten system;Automatic lubrication system
Optional configuration1.Optional brands of CNC systems
SIEMENS,FANUC
2.Optional types of the tool post
Horizontal Six-station, horizontal eight-station
3.Optional types of the workpiece clamping
Hydraulic chuck,pneumatic chuck,spring chuck
4.Optional types of the tailstock
Hydraulic tailstock,pneumatic tailstock
5.Optional patterns of feeding
Automatic feeding(Customized programs alone)
Instructions of other devices1.Protective cover and door
Metal plate cover and double protective door
2.Position of CNC system
On the left side, rotation type
3.lighting system
Standard T8 fluorescent lamp
4.Cooling system
Water cooling
5.Lubrication system
Automatic lubrication controlled by microcomputer
6.Brands of motor-driven tool carrier
Hongda and Sanhe
7.Type of cabinet base
Overall cast iron
Specification| Lathe specifications | Specifications |
| Maximum diameter of lathe bed (mm) | Φ1250mm |
| Maximum tactical diameter of sliding plate (mm) | Φ1050mm |
| Maximum work-piece length (mm) | 1500mm |
| Form | Three gears No grade to
change frequency |
| Rank of spindle speed | No grade |
| Range of spindle speed(r/min) | 6-500 rpm |
| Terminal structure | C11 |
| Hole diameter of spindle (mm) | φ130mm |
| Spindle hole fore-end taper | Metric 120 1:20 |
| Power of main motor (KW) | 15KW |
| Maximum route of knife rest (mm) | X:530 mm Z:1700mm |
| Speed of quick-travel (mm/min) | X:4000mm Z:5000mm |
| Resetting accuracy | X:0.012 Z:0.016 |
| Precision of work piece | IT6-IT7 |
| Surface roughness | Ra1.6 |
| Sleeve diameter of tailstock (mm) | φ100mm |
| Sleeve trip of tailstock (mm) | 250mm |
| Cone hole taper tailstock's sleeve | MT6 |
| Standard configuration | Four-station vertical
electrical knife rest |
| Alternative configuration | Horizontal Six-station
electrical knife rest |
| Resetting accuracy (mm) | 0.01 |
| Length of section of knife handle (mm) | 30*30mm |
| Length*width*height | 3700*1920*1990mm |
| Net weight (Kg) | 5600kg |

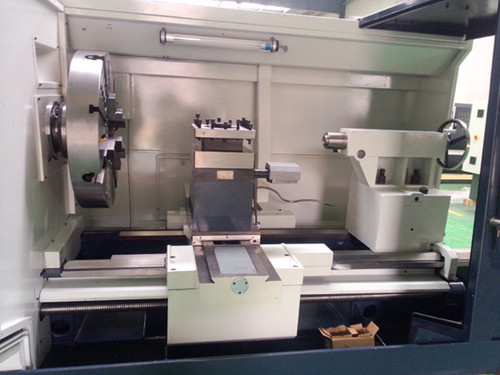

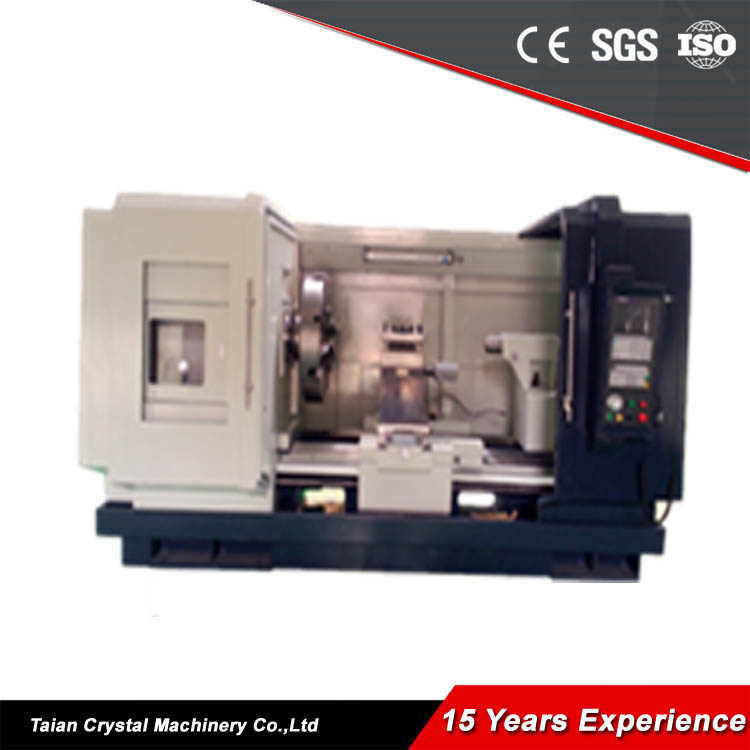

Product display

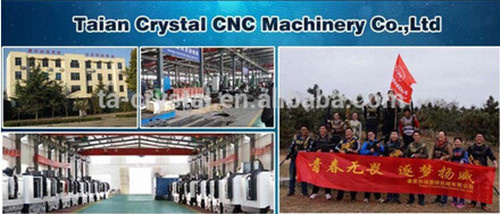

Taian Crystal Machinery Co., Ltd., is a modern and high- tech company which is a professional manufacturer of CNC machining Center, CNC Lathe Machine, Wheel Lathe machine With 5, 000sqm workshops and offices, we have more than 15 years experiences in CNC machine research and production. Our machines have been exported more than 40 countries. We welcome all customers and friends to come to our company!
Our team have great experience on manufacturing and exporting. Our service department has experienced technicians that can offer you answers to your technical questions, and in many cases, solve your problem effectively over the phone.
We are dedicated to provide customers with the best, highly value added machines. We have earned a strong reputation in design and manufacturing of a wide variety of CNC machine tools. We continuously improve the performance level of our machines, strengthen our quality control system, and offer worldwide support services. Our dedication to the global marketplace will create a new era of CNC machine tools.
Furthermore, we are serious about quality, customer input, and reacting to market demands. Our fully equipped quality control department performs the final inspection of the machine and in process inspection of parts. Our quality control personnel are well trained to conduct rigorous inspections by using precision, sophisticated instruments. We deeply believe that quality is the life of our company and customer service is the power that drives our company forward. We are also looking for cooperation with professional dealers in the world. This would make us to create a new opportunity in certain area and offer top service quality as we have in China.
