Product Specifications
| Prod Model: |
2030 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Area: |
2000*3000*200mm |
| Spindle: |
3kw/4.5kw/Water Cooling Spindle |
| Spindle Layout: |
Spindle Over |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Manual |
| Controlling Mode: |
CNC |
| Certification: |
SGS |
Product Description

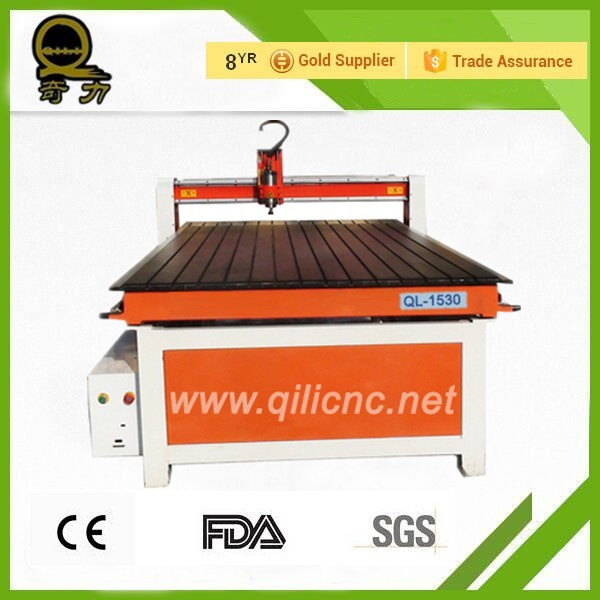

High precision! ! ! ! Sculpture wood carving cnc router machine
Applications of cnc wood1. Woodworking industry: Wave plate processing, wood cabinet, cupboard door, fine
Pattern's engraving, carving of the antique furniture, craft wood door, paint-free door, byobu, craft casement, etc.
2. Advertising industry: Advertising signs& label making, engraving of Acrylic, crystal words' processing,
Plastic molding's making, etc.
3. Crafts& gifts: Toys, and processing of copper, aluminum, plastic, double-color board, marble.
4. Others: Decorations, plastic light box, molds, wooden architechts'molds, product identification industry,
Furniture industry, teaching, enterprise and public institution, etc.
Features of cnc wood router1. Large working area for full length of wood, MDF, veneer or acrylic sheet.
2. Vacuum table area controlled separately for saving power cost.
3. Oil lubricating system one press can finish regular ma
4. Strong gantry carries high power spindles working tool sensor make machine working more precisely.
5. Aviation plugs make connection to machine in a easy way.
6. Strong dust collector exhausts dust and fragment effectively.
7. DSP control panel with USB interface-working in more easy way.
8. Typeset software diversify, compatible with G code software.
Technical specification of cnc wood router:Working area
2000*3000*200mm
Spindle
3kw/4.5kw/water cooling spindle
X Y Z travel positioning accuracy
0.02/300mm
Table surface
Vacuum and T-slot combined
Frame
Steel tube structure
Drive system X-Y axis
Rack and pinion
Drive system Z axis
Ball screw
Max power consumption
5.5kw(without spindle)
Max working speed
20000mm/ min
Spindle speed
0--18000 rmp
Working voltage
AC 380v (220v)
Command language
G code
Interface
CF card, ethernet
Operating system
NCstudio/MACH3/DSP controller
Flash memory
512M
Software
UGS, Alpha Cam, Type3, UcancamV9
Packing size
3300*2200*2000mm
Net weight
1650KG
Gross weight
2000KG
Equipment available
A. Vacuum hold down
B. Oil lubrication system
C. Dust collector system
| Machine Model | QL-2030 |
| X. Y working area | 2000*3000mm |
| Z working area | 300mm |
| Table | 3000*4200mm |
| Max. Speed | 8m/min |
| Max. working speed | 6m/min |
| Working delicacy | 0.005mm |
| Repositioning accuracy | 0.05mm |
| Command | G code*. u00*. mmg*. plt |
| Surroundings for software | windows98/2000/xp |
| Power (spindle is not included) | 1500w |
| Working voltage | AC380V/50Hz |
| Spindle power | 3.0kw |
| Spindle rotating speed | 0-24000rpm/min |
| Drive motor | Stepper |
