High-Frquency 3D Laser Engraving Machine (all-in-one style)
| Price: |
US $ 26000/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
Product Specifications
| Prod Model: |
HSGP-4.5KB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Laser: |
Semiconductor Diode |
| Laser Wavelength: |
532nm |
| Laser Frequecny: |
4kHz |
| Laser Power: |
3W |
| Max Pulse Energy: |
1.2mj |
| Max Engrave Speed Points: |
≤280000dots/Minute |
| Resolution: |
800dpi-1200dpi |
| Focus Length: |
100mm |
| Focus Diameter: |
0.02mm |
| Cooling: |
Air Cooling |
Product Description

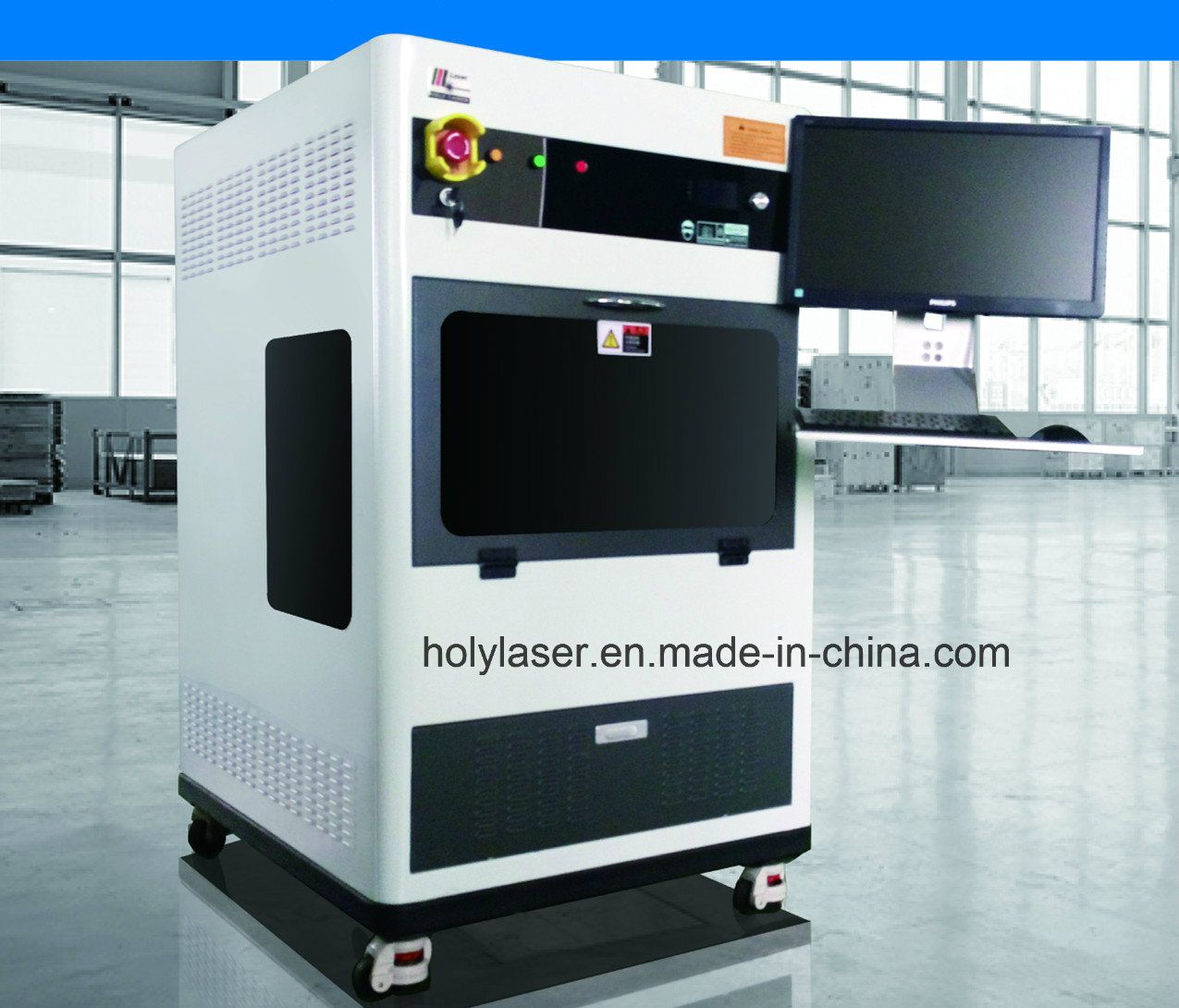

Features of High-frequency 3D Crystal Laser Engraving Machine:
The HSGP series 3D laser engraving machine (also known as laser engraving inner machine or crystal laser engraving machine) is self-research by Holy laser with imported laser and self-design software which can meet common and special needs of users. The operation of hardware and software is efficient and stable and the engraving effect is amazing
Application Industry High-frequency 3D Crystal Laser Engraving Machine:
Our 3D crystal laser engraving machine is widely used in 2D&3D crystal photo engraving, personalized crystal engraving gifts, high finesse crystal product processing, high-grade glass products, etc
Application Material:
Can be used for engraving inside of crystal cube, common glass, transparent acrylic, and also can marking on surface of hard plastic
Sample Show:
Techinical Parameter:| Type | HSGP-4.5KB (all-in-one machine) |
| laser / laser wavelength | semiconductor diode/ 532nm |
| laser repetition frequency | 4000HZ |
| max. marking speed | 240,000dots/min. |
| max. marking scope | 300*400*130MM |
| focus diameter/resolution | 0.02nm/ 1200DPI |
| working | with high speed scanner+X+Y+Z (5 axis) |
| positioning accuracy | 10μm |
| continuous working time | 24 hours |
| cooling | air cooling |
| lifetime | >50,000hours |
| gross power/noise | 3W/ 50db |
| power requirement | single phase 220V or 110 V (+/- 10%), |
| 50Hz or 60 Hz |
| suitable materials | crystal, glass, hard plastic, acrylic, etc. |
| working environment | temperature15-30°C |
Packing and delivery:
Packing: Packed in wooden case with waterproof felt inside, keeping machine safe
Delivery: 3-5 days upon receipt of your payment
After-sale service:
One year warranty for product quality
Free training for machines installation and operation
Free design of machine as you required
Lifelong maintenance and spare parts supply
Free marking samples as you required
Factory Profile:
We are the manufacturer with 13 years' history on researching and producing all kinds of Lasers
Cooperated with the Zhejiang University and update new technology in-time
Key enterprise supported by the government of Yiwu City
For more detailed information, please feel to contact with me or check our website: http://holylaser.en.made-in-china.com
Zhejiang Holy Laser Technoloy Co., Ltd, is a factory Located in YiWu City, ZheJiang Province. We specialize in: 3D laser machine, Large size glass engraving machine, Laser marking machine, Laser cutting machine, etc.
We are here because we are qualified for serving you by the bellow advantages:
1, We can supply machine in 7-10days once you confrim the order.
2, We supply complete service: Machine, design, crystal and LED base factory info. Design for free, technology support for all liftime, training for free.
3, We have our own factory garden that more than 1600squre meter. Wihch suport by government in yiwu economic development zone.
4, All our productions with CE, FCC, FDA, SGS, TUV certification s. Cause suitable for all city in the world.
5, We also have our son desiner team which have more than 15 years experience. Can supply you 2D or 3D desing with your special photo or supply beautiful design in tock.
You are always welcome to visit our factory in any time, , you are here not just our customer, most important is we are friends.
