Product Specifications
| Prod Model: |
HSGP-3KD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
Small Power |
| Drive Type: |
Hybrid Servo Drive |
| Engraving Machine Type: |
Laser Engraving Machine |
| Control: |
Automatic |
| Current: |
AC |
| Laser Type: |
Diode |
| Usage: |
Crystal, Glass, Acrylic |
| Certification: |
Ce, FC, FDA, TUV, SGS |
| Condition: |
New |
| Brand: |
Holylaser |
Product Description

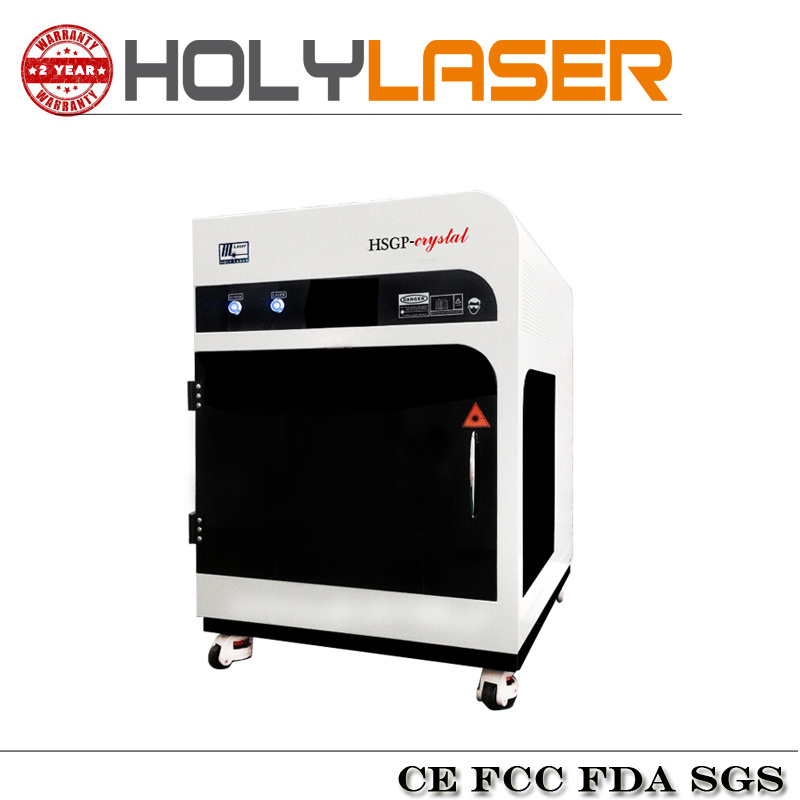

High-Frequency Crystal 3D Photo Laser Subsurface Engraving Machine(HSGP-3KD)
Description for High-Frequency Crystal 3D Photo Laser Subsurface Engraving Machine:
HSGP-3KD Laser Engraving Machine for Crystals adopts industrial design, which can engrave one big block of crystal or several small blocks at the same time. Its products can give person crystal-clear and fine noble visual image, that' s elaboration for your home decoration.
Applicable materials:
Crystal glass etc
Applicable area:
The High-Frequency Crystal 3D Photo Laser Subsurface Engraving Machine is definitely suitable for fine model engraving processing centers, gift shops, craft shops, photo printing shops, wedding photography, souvenirs, personalized gifts shops, etc.
Advantages of our High-Frequency Crystal 3D Photo Laser Subsurface Engraving Machine:
1. CE, FCC, FDA, TUV, SGS approved,
2. This machine can engraving both 2D and 3D, (depends on your design).
3. Our machine good for quantity production.
4. With newest generation laser, high speed 120000dots/min.
5. Our machine also good for big size engraving as big as 150*200*80mm (also very suitable for small size materials).
6. To finish engraving one block of crystal, just only need 2-3 minutes.
After-sale service:
· One year guarantee period for product quality. (man made damaged is negotiable).
· Lifetime maintenance and spare parts supply.
· Free design of fixtures as customers required.
· Free training for machines installation and operation of the staffs.
· Free samples marking of customer provided.
Factory Profile:
1. Supported by the Yiwu City government
2. Cooperate with the Zhejiang University, update for technology
3. We are the manufacturer, our price are more competitive.
4. With 14 years history on reseaching and producing all kind of laser machine
5. Our company welcomes AGENTS all over the world
Certification:
Our products are certificated with CE, FCC, FDA, PATENT
Warmly welcome you visit our factory! ! !
Warmly welcome you contact us directly for more information! ! !
| Model number | HSGP-3KD |
| Laser/laser wave length | Semiconductor diode / 532nm |
| Laser frequency | 3000hz |
| Engraving speed | 180,000dots/min. |
| Max. engraving area | 150*200*80mm |
| Focus diameter/ Resolution | 0.02nm/ 800DPI |
| Working | with high speed scanner+X+Y+Z (5 axis) |
| positioning accuracy | 10μm |
| Continue working time | 24 hours |
| Cooling/warranty | Air cooling / one year |
| Lifetime | more than 20,000hours |
| Gross power | 1.5KW/ 50db |
| Power requirement | Single phase 220V or 110 V (+/- 10%),50Hz or60 Hz |
| Suitable material | Crystal, glass, hard plastic, acrylic, metal, etc. |
| Working environment | temperature10-28°C, humidity less than 70%,non-condensed |
Zhejiang Holy Laser Technoloy Co., Ltd, is a factory Located in YiWu City, ZheJiang Province. We specialize in: 3D laser machine, Large size glass engraving machine, Laser marking machine, Laser cutting machine, etc.
We are here because we are qualified for serving you by the bellow advantages:
1, We can supply machine in 7-10days once you confrim the order.
2, We supply complete service: Machine, design, crystal and LED base factory info. Design for free, technology support for all liftime, training for free.
3, We have our own factory garden that more than 1600squre meter. Wihch suport by government in yiwu economic development zone.
4, All our productions with CE, FCC, FDA, SGS, TUV certification s. Cause suitable for all city in the world.
5, We also have our son desiner team which have more than 15 years experience. Can supply you 2D or 3D desing with your special photo or supply beautiful design in tock.
You are always welcome to visit our factory in any time, , you are here not just our customer, most important is we are friends.
