Topbest Technology Limited >> High Efficiency Automatic Dispensing Machine /Automatic Dispensing Equipment/Automatic Dispenser / Automatic Dispensing System
High Efficiency Automatic Dispensing Machine /Automatic Dispensing Equipment/Automatic Dispenser / Automatic Dispensing System
| Price: |
US $ 3000-4000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Specifications
| Prod Model: |
Topbest-DJ-441 |
| Working Area: |
400*400*80(X*Y*Z) |
| Dispensing Accuracy: |
+/-0.01mm |
| Power Supply: |
AC 220V |
| Weight: |
70 Kg |
| Working Humidity: |
20-90% Rh |
| Working Temperature: |
5-40 |
Product Description

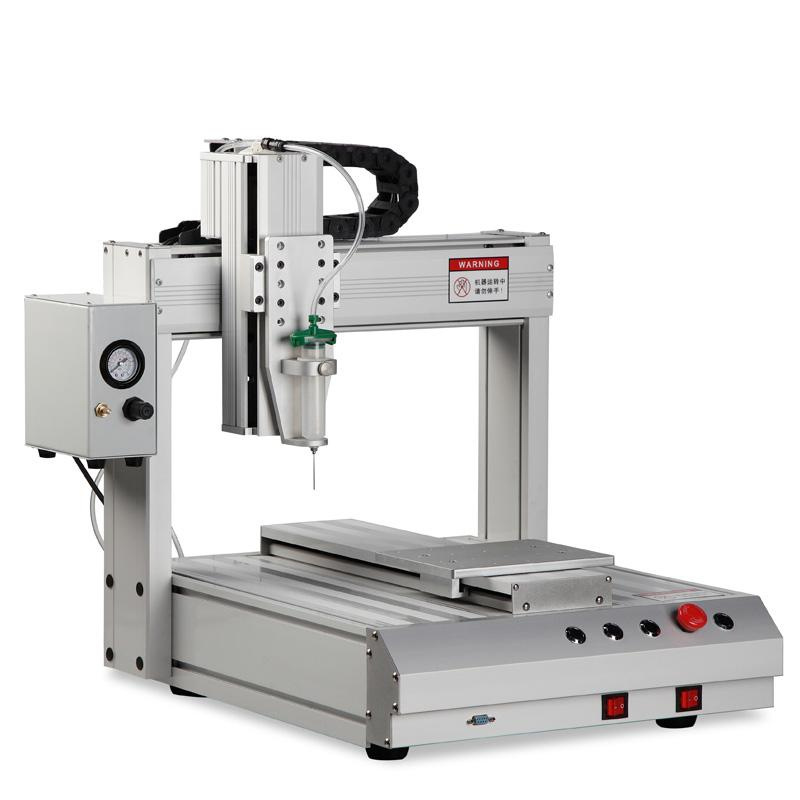

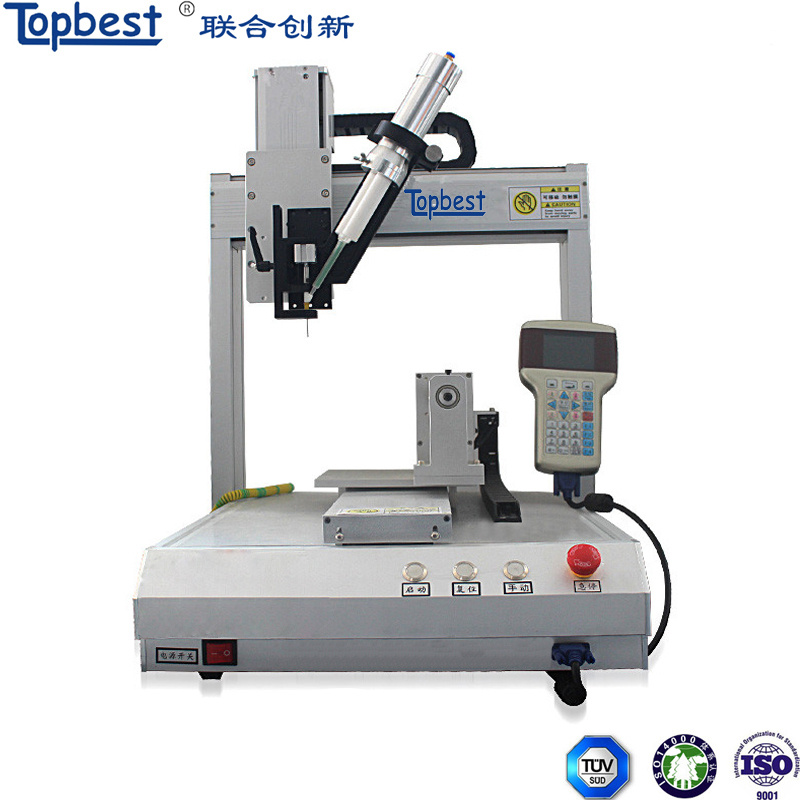

Topbest-DJ-441 Desktop 3-Axis Single Head Single Y Automatic Dispensing Robot
DescriptionBrief introduction
Automatic fluid dispensing machine is widely used in various industries, such as mobile phones, hard drives, keyboards, toys, LCD / LED modules,
communications equipment, electrical appliances, auto parts and other electronic processing assembly.The dispensing machines can solve many
substantial problems of small, medium and large enterprises, such as labor shortage, low production efficiency, high labor intensity, increased material
consumption costs, and increased difficulty in management.
Parameters| Model | Topbest-DJ-441 |
| Dimension (L*W*H) (mm) | 630*730*850 mm |
| Weight(kg) | 65 |
| Operation Range (X*Y*Z) (mm) | 400*400*80 mm |
| Axes | 3 Axis (X,Y,Z) |
| Control System | Motion Controller or PLC + Teach Pendant |
| Driving mode | Precision Stepping Motor+Timing belt |
| Move speed | X,Y 600-800MM/S,Z 400MM/S, |
| Repeated precision | +/-0.02MM |
| Dispensing Control | Dispensing Control System |
| Dispensing speed | According to customer's product requirements and glue types |
| Control Panel | Teach pendant |
| External Interface | USB + RS232 |
| Air pressure requirement | 0.4 to 0.6MPa (4 to 6kg/cm2) as dry air |
| Working Temperature | 5-40C° |
| Working Humidity | 20-90% RH |
Features
1. Desktop type, can be placed on the production line.2. High-rigidity aluminum alloy multi-axis design ensures reliability and accuracy.3 glue automatic feeding, glue thickness, glue speed, dispensing time, stop time can be set parameters, the glue stability is high.4. Optional fixtures and tools.5. Has a variety of functions, such as drawing points, lines, polygons, arcs, circles, irregular curves, continuous tween and three-axis movement.6. The dispensing machine can work without a teach pendant connection.Available Dispensed Material
UV glue, instant glue,silica gel, hot melt adhesive, red glue, silver glue, AB glue, EPOXY resin, COB
black glue, white glue, conductive glue, thermal paste, solder paste, transparent paint, etc. Application
1. Electrical Products: Electronic parts, integrated circuits, circuit board solder paste, fixed and dust and moisture protection, LCD liquid crystal screen, speakers, headphone, audio, LED, optical lens, SMD transformers, relays. 2. Communication Products: Keypad, mobile phone casing bonding, radio, telephone, Computers, MP4, electronic toys, chassis bonding, switches, connectors, plug cable.
Application video
1. The hand-held screwdriver machine with the automatic feeder application video
https://youtu.be/uK8OOR3RyBE One of the application video of the hand-held screwdriver with the automatic feeder
https://youtu.be/UR0LNInVdCg One of the application video of the hand-held screwdriver with the automatic feeder
https://youtu.be/zn8yHIwKLX0 The application video of the hand-held screwdriver with the blowing type feeder.
2. The desktop screwdriver machine with the automatic feeder application video
https://youtu.be/7F-vvaXxmKA The application video of the desktop automatic screwdriver with the adsorption type feeder.
https://youtu.be/L6lfQ3DOMic The application video of customized automatic feeder screwdriver machine
https://youtu.be/zQcK5yhYQZc The application video of customized automatic feeder screwdriver machine
3. The soldering robot application video
https://youtu.be/Awceg_tdBio One of the application video of the soldering robot.(Point Soldering)
https://youtu.be/KBHxwWci9pI One of the application video of the soldering robot.(Slide Soldering)
https://youtu.be/zE0xF7Y8H0w One of the application video of the soldering robot.(Solder paste dispensed and then soldering)
4. The automatic adhesive dispensing machine application video

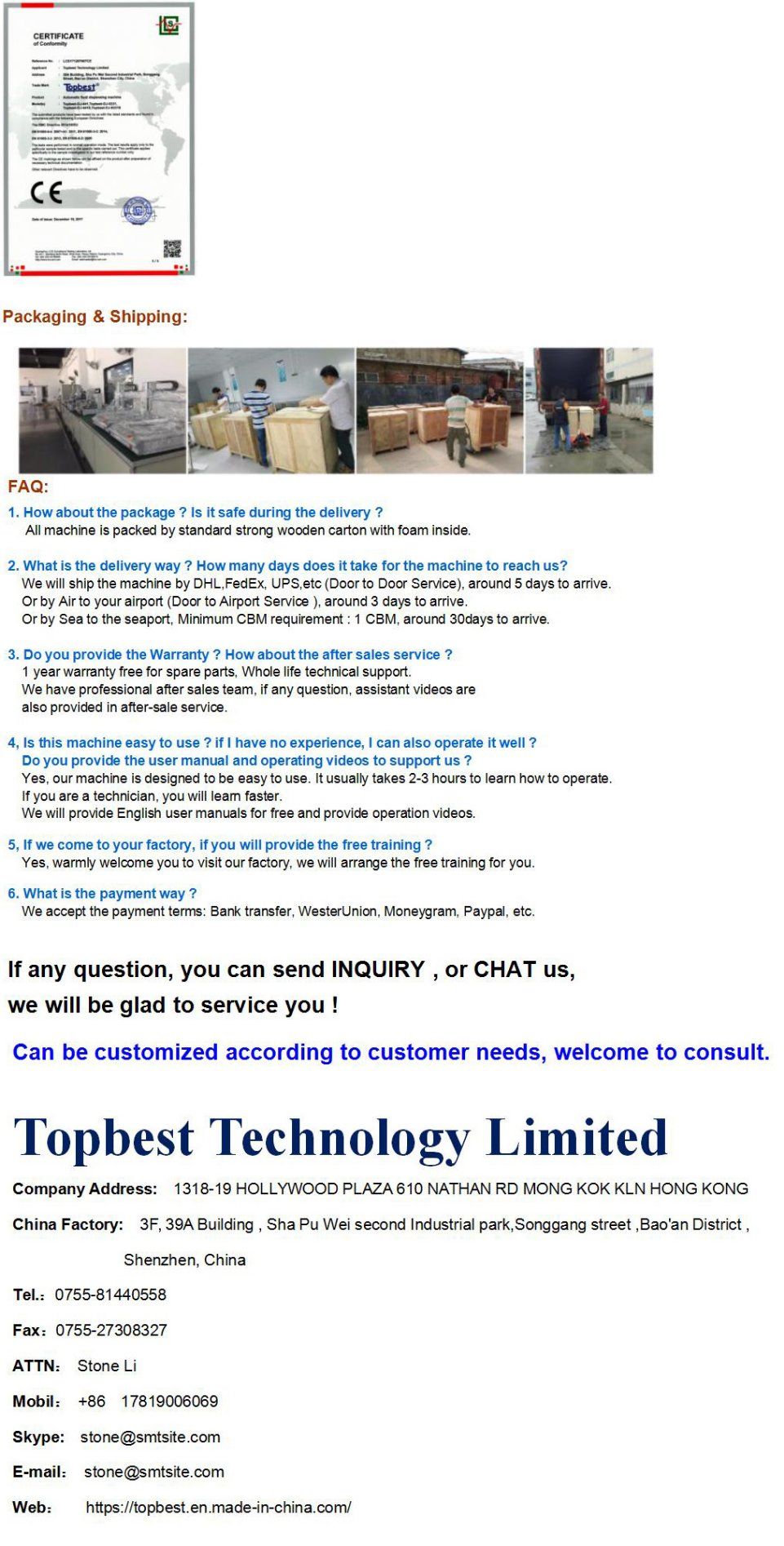

https://youtu.be/21uW6CcdmFo The application video of automatic adhesive dispensing machineCE Certificates
TOPBEST TECHNOLOGY LIMITED, established in 2000, is national-level high-tech enterprise accredited by Shenzhen government
Our Focus: Developing and manufacturing automatic soldering machine, automatic locking screw machine, automatic glue dispenser and intelligent assembly line (automatic assembly line), non-standard equipment and other automation
Wide Applications: Communications, Industrial Control, Power Supply, Medical Devices, Lighting devices, Automotive Electronics and Consumer Electronics.
Work Objective: Improve production efficiency, ensure product quality, reduce labor cost, Quality Assurance: High-quality and High- reliable performance and Excellent Service.
Our company supplies different kinds of automated electronic equipment...High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
