Product Specifications
| Prod Model: |
blank |
| Diameter: |
52.8mm |
| Type: |
Flat Lens |
| Usage: |
Instruments |
| Shape: |
Round/Square/Polygon |
| Material: |
Sapphire |
| Lenses Color: |
Transparence |
| Coating: |
Mirror |
Product Description
The material is synthetic sapphire(hardness 9H)
High Crystal Purity:> 99.995%;
Crystal orientation: Provide A plane, R plane, C plane, M plane and other random plane for sapphire crystal product.
Directional accuracy: ±0.05°We can always provide high quality service, we will respond for the customer's requirements in a short time.
Product Family Description
- Features Extreme Surface Hardness Chemical Resistance
- Transmits Wavelengths Ranging From UV to Mid-Infrared
- Thinner and Stronger than Standard Glass Windows
HCH Sapphire Windows are manufactured from single crystal sapphire, making them ideal for demanding applications (such as laser systems) because of their extreme surface hardness, high thermal conductivity, high dielectric constant and resistance to common chemical acids and alkalis. Sapphire is the second hardest crystal next to diamonds and, because of their structural strength, sapphire windows can be made much thinner than other common dielectric windows with improved transmittance. Chemically, sapphire is single crystal aluminum oxide (Al2O3) and is useful in a transmission range from 0.2 - 5.5μm.
Specifications
| Uncoated | | 10-200 |
| ±0.10 | | 1-30 |
Thickness Tolerance (mm): | ±0.05 | Type: | Protective Window |
| Surface Roughness (μm): | 0.1 per inch | | 0.008 for Visible Light
Orthogonal to Optical Axis |
| Orientation of Axis | C/A/M or R | Wavelength Range (nm): | 200 - 5500 |

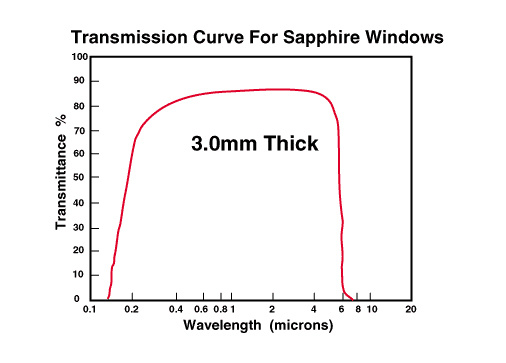

Technical Images
