Hot Searches:

Harga Mesin Laser Cutting Mini

Name: Harga Mesin Laser Cutting Mini
Brand: china-crystals.com
SKU: 716824592
Availability: InStock
Rating: 4.8 (88 reviews)

Price:	US $ 4000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	GY-1390T
Working Area:	1300*900mm
Working Table:	Knife Working Table

Product Description

1390T CO2 Laser Cutter for MDF Wood Acrylic Leather

Model: GY-1390T
Features

RD PMC & HMI controller
Safety Tunneled Mirrors & Lens
Feeding extra long material door
RECI Co2 Laser Tube, '8000 Working Hours at 100% Power', other standard tubes last 800-1000 Working Hours 100% Power (RECI Is The Best Laser Tube In The Market)
Components & Parts also from Germany or Japan for better Accuracy and Smoothness
Co2 Filtered Glass on the Door
Bigger & Silent Extraction Fan and Tube
Bigger Air compressor
Modern 'ZNSE Focus Lens
Updated software, completable with all Windows Systems.
More stable step motors
Machine comes with both 'Legs & Locking Wheels' Can used both at once.

Repositioning accuracies is 0.01mm

Working area:    1300mm X 900mm (Full 100%)
Laser power:    Genuine Co2 Laser Power 170 Watts
Laser type:    CO2 sealed laser tube, water-cooling
Engraving speed:   0-36000mm/min (0-1417inch/min)
Laser Output Resolution:    1-100%     1000DPI
Resetting positioning accuracy:    0.01mm
Power supply:    220V/50HZ
Operating temperature:   0 - 45°C
Operating humidity:    5 - 95%
Min. shaping character:    English 1.0 x 1.0mm
Graphic format supported:    BMP, HPGL, JPG, PLT, DXP, DXF,DWG, PLT, DST, DXF, AI
Software supported:    CorelDraw, AutoCAD
Driving system:    Stepper Motor
Equipment Dimension:    L(182cm) X W(142cm) X H(107cm)
Packing Dimension:  L(188cm) X W(148cm) X H(120cm)
Net Weight:        380Kg

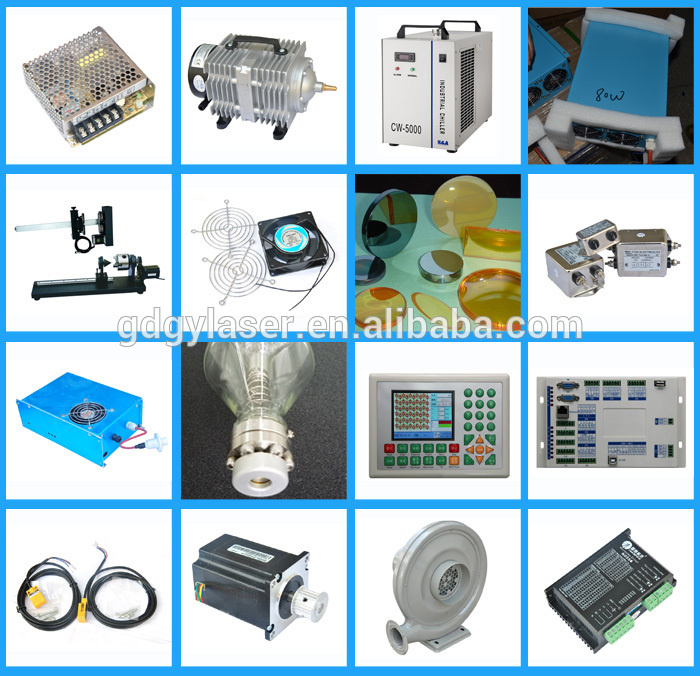

ACCESSORIES

Our Co2 Laser Machine Include all this extras:

Industrial Water Chiller CW5000
Industrial Exhaust Fan
Large Air compressor
Large Rotary device
Blades Table
Honey Comb Table
One Year Warranty
24/7 Support E-mail online, Skype video, Teamviewer online
Professional User's manual
CD installation video and Training video
Free Training on supplier factory.

Machine Maintenance

Detailed maintains steps was mentioned at the User's Manual!

Using Software
Adjust the optical laser path
Health And Safety Precautions

Can be used with following materials:

Acrylic, Perspex, Plastics, PVC, Glass, Acrylic Mirror, Leather, Slate, Stone, Paper, Granite, Wood, Organic Glass, Crystal, Garments, Jeans, Paper, Leather, Rubber, Stones, Ceramic, Mobile phones.

You are most welcome to come for a demonstration and view the machine, the cutting speed & all the accessory's that we provide with our Laser Cutting Machine. If you are unable to come at this moment you also are most welcome to send your material and a files so our engineer can send you a full report on the cutting speeds on the different materials.

We do deliver our machines all over the world, machine will be testing 24*7 hours. User's Manual, CD with video will show you how to maintain your Co2 Laser Machine & all the health and safety precautions and how to use the software.

SERCIVE

a. One Year Warranty

b. 7*12hrs online service(E-mail, Skype WeChat, Whatsapp,Teamviewer)

c. Manual, Software, Video, CD

d. Free training in factory

e. Technician local service available

FAQ

1. What kinds of laser machine do you have?

For industry purpose, there are many different laser sources for different laser application!

1)40w-150w CO2 Laser (S, D, E series)

Engraving and Cutting Non metallic material like Acrylic, Plastic, Wood, MDF, Paper, Fabric, Textile, Leather, Marble, Ceramic etc.

2)Mixed CO2 Laser Cutting Machine 150w 200w 300w (CS/CM series)

Cutting Thicker Acrylic, MDF, Wood and Thin Steel 2mm

3)Fast Flow CO2 Laser Cutting Machine1000w 1500w 2000w (H series)

Cutting Thicker Metal and Wood MDF Acrylic

4)Fiber Laser Cutting Machine 500w 1000w 2000w (CYM series)

Excellent Cutting Different Metal in different thickness

5)10w--50w Fiber laser, 50w-100w YAG laser (DP series, FLM series)

Engraving and Marking any Metal and some non metal (ABS plastic)

Such as Marking production date, company logo, serial no. bar code, 2D code on the object surface.

6)100w 150w 275w CO2 Galvo Laser Marking Machine (GYRF series)

Marking wood, leather, Jeans, Garments, Fabric, Acrylic (light guide plate)

2. Which machine is good for Garments/Cloth/Fabric/Textiles cutting?

S series, D series is suitable,

Most of customer will choose model GY-1490D 80W!

And refer to some added function model

With Auto feeding function TF and TK Series

Three Heads Laser Machine ST series,

Four Heads Laser Machine F series

3. What kind of materials can a GY laser cut / engrave?

Acrylic	Cork	Leather	Paper	Styrene
Anodized Aluminum	Crystal coated metal	Marble	Plastic	Tile
Anodized metal	Fabric	Matte board	Polyester	Veneer
Bamboo	Fiberglass	Melamine	Polyester film	Vinyl
Carbide	Foam	Mylar	Pressboard	Wood
Cardboard	Glass	Nylon	Rubber
Ceramics	Kevlar	Painted metals	Silicon
Composites	Laminated plastic	Painted materials	Stone

4. Can I Engrave metals with a CO2 Laser?

Answer is No!

But Co2 laser can Engrave Anodized metal and some metal with Ceramic coatings, plastic coatings or paints!

5. How do I learn to operate lasers?

1) User manual, CD with video will along with machine for training you how to install, how to use, and how to maintains,

2) Moreover, Skype, Team viewer online service is available for you,

3) Free training will offer you on our factory, Engineer is available to offer international service!

4) Local agent service available is extending all over the world!

6. How can I become a Agent of Great Year Laser?

Agent all over the world is wanted, welcome to visit our factory to know more of each other for start our long term cooperation!

Welcome to contact us if any interest or questions about our laser equipment !

Looking for agents from all over the world!

Guangzhou Great Year Laser Technology Co., Ltd (hereafter referred to as GYC laser) is a high-tech enterprise in Guangdong province, which specializes in R&D, manufacturing, sales and maintenance of industrial equipment and precision machinery. The main products include fiber laser cutting machine, laser die cutting machine and CO2 laser cutting and engraving machine, which are special for processing metal materials, kitchen electrical appliances, light fixtures, auto parts, advertising signs, printing and packaging products, leather and textile, clothes accessories, etc.

Set up in November 2009, GYC laser focus on the innovation of the laser application solutions. The enterprise mission, to create the largest benefit for customers, encourages the staff to keep pursuing for breakthroughs. The speedy development of GYC laser depends on a professional research and development team which aims to fulfill the requirements of different customers, and an efficient service team which offers rapid response such as remote supporting, regular maintenance and spot training to assist our customers operating the machines better. Different models of our laser equipment have been sold to 65 countries and regions by December 2016, including the USA, Germany, Italy, Turkey, Mexico, Colombia, Peru, Thailand, Vietnam, Philippines, India, Iran, Egypt, Algeria, and got high appreciation from our customers in different industries.

We believe that there will be better and better in our laser technology career. Only continuous innovation and better quality can make our career flourishing. All staff of GYC laser will keep our mission in mind, which is striving for a global reputation for China's laser technology!
