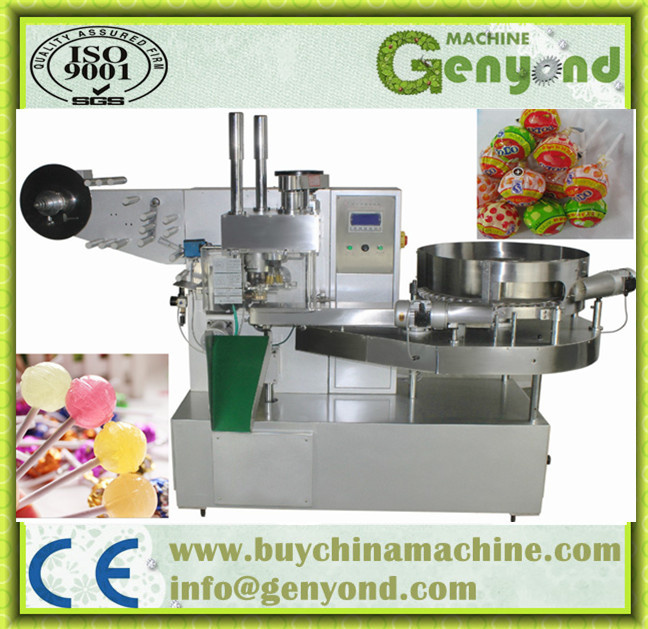

Hard Candy Ball Lollipop Production Line
| Price: |
US $ 24000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
Product Specifications
| Prod Model: |
gyl-1 |
| Material: |
Stainless Steel |
| Warranty: |
1 Year |
| Application: |
Candy |
| Customized: |
Customized |
Product Description
Complete lollipop/Hard Candy Depositing and packing Production Line
Brief Introduction:
This hard candy depositing line is a compact unit which can continuously produce various kinds of hard candies under a strict sanitary condition. It is also an ideal equipment which can produce high quality products with the characteristics of labor saving and space saving.
Working Process:
Raw material dissolving → Conveying → Felting → Storaging → Constant
Syrup conveying → Pre-heating → Micro-film vacuum cooking →
Mixing with flavor and color → Depositing → Cooling → De-moulding
Conveying → Packing → Final products
The strongpoint of the line is as following:
* PLC /computer process control available; LED touch Screen.
* Optional (mass) flowing controlled by Frequency inverters ;
* In-line injection, dosing and pre-mixing techniques for the proportional addition of liquid(milk); Dosing pumps for the automatic injection of colors, flavors and acids;
* One set of extra chocolate paste injection system for making chocolate-central candies; "two/three-color striped depositing"," two /three-color double layers depositing", "central filling", "clear" hard candies and etc.
* Moulds can be made according to the candies samples provided by the customer.
Main Technical Parameter:
MODEL |
GY150 |
GY300 |
GY450 |
GY600 |
Capacity(kg/hr) |
150 |
300 |
450 |
600 |
Max candy weight |
6g |
6g |
6g |
6g |
Depositing speed |
55-65n/min |
55 |
65n/min |
55 |
Compressed air requirement |
0.2m³/min,
0.4-0.6Mpa |
0.2m³/min,
0.4-0.6Mpa |
0.2m³/min,
0.4-0.6Mpa |
0.2m³/min
,0.4-0.6Mpa |
Working condition |
Temp:20-25ºC
Humidity:55% |
Temp:20-25ºC
Humidity:55% |
Temp:20-25ºC
Humidity:55% |
Temp:20-25ºC
Humidity:55% |
Total Power |
18kw/380V |
27kw/380V |
34kw/380V |
38kw/380V |
Total Length |
15m |
17m |
17m |
20m |
Total Weight |
3500kg |
4000kg |
4500kg |
5000kg |
Other Details:
1.Package: wooden cases for sea transportation
2.Delivery time: 30 working days after receiving the deposit
3.Installation : engineers available for installation and training overseas
4.Guarantee : 12 months after it is sent out
Plz feel free to contact me for any further information.
Shanghai Genyond Technology Co., Ltd. is a manufacturer of extracting unit and fruit & vegetable processing line with well-equipped testing facilities and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in food and beverage and other industries.
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
Fruit and vegetable pharmaceutical processing equipment through Shanghai genyond Technology Limited production, withGermany concise durable and practical design style, uphold Japan sophisticated manufacturing process, combined with our twenty years of industry experience, this paper gathered the food technology, pharmaceutical technology, plant extracting technology expert and mechanical equipment engineer, have been the introduction of mechanical technology of fruits and vegetables the most advanced machining from Germany, Italy, followed soon introduce, much improved, innovative concept of scientific and technological progress, using new technology and new process, the mechanical, to select the best combinationwith industrial technical data, the equipment layout is more scientific and reasonable, provide all equipment and turnkey projectgreen products for the domestic external number of fruit and vegetable processing, pharmaceutical processing and plant extractprocessing enterprises, and formed a unique market competitive advantage.
Its characteristics are embodied in the:
Into the lower disposable equipment;
The quality of the equipment installation quality and engineering, security and maintenance cost of the whole system, reasonable process flow, compact structure, beautiful appearance, stable operation, low running;
Comply with GB16798-1997 food machinery safety and health standards, "ACCP" food safety and health management system and "GMP" pharmaceutical health and safety management system and other relevant provisions.
The successful development of the project:
3-40 tons / belt type juice production line;
The processing technology of the carrot juice concentrate, fruit juice, powder technology and production line;
Processing technology of the cactus, aloe vera drinks, juice concentrate, powder technology and production line;
Processing technology of various beverage, concentrated juice, juice, jam, powder technology and production line;
Technology and processing, all kinds of vegetables, vegetable dehydration and drying processing technology production line;
Processing technology of the tropical fruit drinks, juice, juice, jam, powder technology and production line;
Technology and processing the various wine, vinegar, jam and other processing production line;
Processing technology of the various protein beverage, powder technology and complete sets of production line;
Process and equipment for processing the various vegetables and plant extraction liquid, oil, concentrated, powder etc.;
All kinds of fruits and vegetables crisp, preserved fruit and frying process and equipment of food processing technology etc.;
All kinds of pickles processing technology and equipment;
All kinds of fruit grading, waxing and polishing equipment;
Processing a variety of fruits and vegetables, pharmaceutical and extraction of laboratory and scientific research institutions of complete sets of equipment;
The corresponding part of the equipment and all kinds of packaging production line;
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
