Product Specifications
Product Description

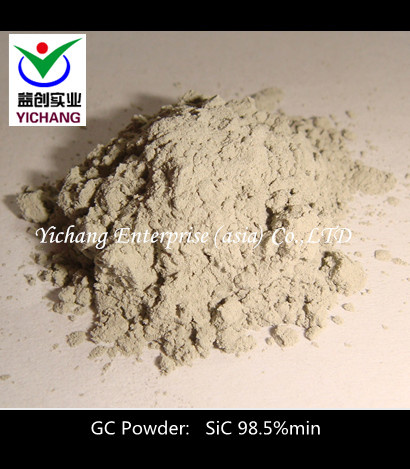

Green silicon carbide /Green carborundum powder 1.Microcosmic shape is a hexagonal crystal, Mohs hardness is 9.3, Vickers hardness is 2940-3300 kg/mm, microhardness is 2670-2815 kg/mm3.
2.Among abrasives, silicon carbide's hardness is higher than corundum, and ranked below diamond, CBN and boron carbide.
3.Density generally viewed is 3.20g/ mm3 , density of heap is 1.2-1.6g/ mm3 , specific gravity is 3.20~3.25.
4.Raw material are petroleum coke and quality silicon sand, appended with salt, then smelted in electric arc furnace. Mechanical strength is higher than corundum.
Silicon Carbide is characterized by its high wear resistance and good mechanical properties Its typical characteristics are as following
Low density and high strength
Good resistance to high temperature
Good wear resistance and anti-friction properties
Excellent resistance to sudden changes in temperature
Good chemical resistance and oxidation resistance
Low thermal expansion and high thermal conductivity (superior to steel)
Good electrical conductivity
Main applications:solar wafer, semiconductor wafer and quartz chip wire sawing and lapping; bonded and coated abrasive tools; stone polishing; processing metal and non-ferrous metal with low tensile strength, such as gray pig iron, brass, aluminum, stone, leather and rubber.
Particle size comparison of commonly used abrasive | | Particle size distribution (micron) | Chemical Index | Physical Index |
| Size | D3 | D50 | D94 | SiC ≥(%) | Fe2O3≤(%) | F•C ≤(%) | PHValue | Density of heap | Magnetic Materials≤(%) |
| GC#800 | ≤20.0 | 14.0±1.0 | ≥9.0 | 99.00 | 0.20 | 0.2 | 6--8 | 1.18 | 0.008 |
| GC#1000 | ≤18.3 | 11.5±1.0 | ≥7.0 | 98.50 | 0.20 | 0.2 | 6--8 | 1.15 | 0.008 |
| GC#1200 | ≤17.5 | 9.5±0.8 | ≥5.5 | 98.50 | 0.20 | 0.2 | 6--8 | 1.13 | 0.005 |
| GC#1500 | ≤14.5 | 8.0±0.6 | ≥4.5 | 98.00 | 0.20 | 0.2 | 6--8 | 1.12 | 0.005 |
| GC#1800 | ≤13.5 | 7.0±0.6 | ≥4.2 | 98.00 | 0.20 | 0.2 | 6--8 | 1.05 | 0.005 |
| GC#2000 | ≤13.0 | 6.7±0.6 | ≥4.0 | 98.00 | 0.20 | 0.2 | 6--8 | 1.00 | 0.005 |

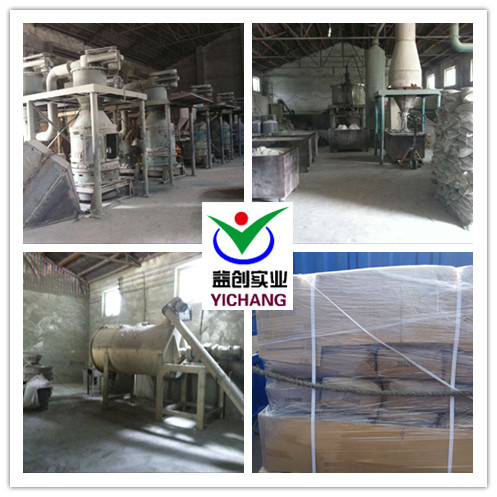

Factory Views:
Our Advantage:
1. For Samples: We can provide samples free for your testing.
2. Quality: Firstly, We control the quality of raw materials (lumps) strictly by lab testing.
Second, We will inspect the size in the production by many times. Thirdly, We will choose the finished goods from diffrent directions of bag and
mixed them to do the lab testing so that the goods are qualify.
3. Delivery Time: Whithin 15~20 working days after reciept of the deposit or L/C at sight.
Yichang Enterprise (Asia) Co., Ltd is a leading and professional for exporting abrasives & Refractory raw materials in China.
We are group for three factories including Brown Fused Alumina, White Fused Alumina, Green Silicon Carbide powder s which are located in the Zhengzhou city, covering an area of 20000 square meters.Now we have fixed furnace, 5000kVA dumping furnace and other large scale smelting equipments, there are several sand production lines such as barmac, ball milling and roller in the sand making factory.Our annual output is 60000tons.
The main products of our company:Brown Fused Alumina, White Fused Alumina, Green Silicon Carbide, Black Silicon Carbide, Boron Carbide, Mullite, Magnesium Aluminum Spinel, Fused Zirconia Alumina, Tabular Alumina, Sub-white Fused Alumina, etc.They are widely used in abrasive & tool, refractory and ceramic industries.
Our production runs under the certifications of GB, ISO, FEPA, JIS.Standard and are popular in domestic market and in abroad such as Japan, Korea, Southeast Asia, Europe and America.
Quality is the life, reputation is the guarantee and talent is the fundamental of the enterprise.The company continue to emphasize on promoting the quality of the staff and control the products strictly.Always following the quality policy of "keep improving, strive for excellence" and adhering to the tenet of "people-oriented, business integrity", we strives to provide our customers with the most professional products and efficient service.
We welcome new and old customers from all walks of life to contact us and we look forward to establish a long term cooperation with you and enjoy a win-win future!
