Grear Year Laser Equipment Products Laser Cut Wood Die Making Machine
Price: |
US $ 22000/Set |
Trade Terms: |
FOB,CIF |
Min Order: |
1/Set |
Pay Type: |
T/T |
Product Specifications
Prod Model: |
GY-1218SH |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Type For Cutting Machine: |
Laser Cutting Machine |
Laser Power: |
400W 600W |
Certification: |
CE, SGS |
Working Area: |
1200*1800/1300*2500mm |
Product Description

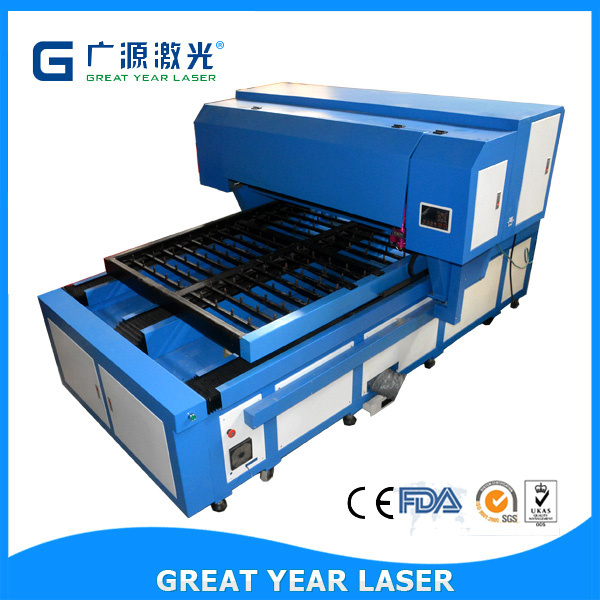

Plywood Die Board Laser Cutting Machine for Packaging (GY-1218SH) :
Product Description:
SAMPLE:
Features
Red light pointer
Human friendly software
Talent Controller RD CAM
Safety Tunneled Mirrors & Lens
Feeding extra long material door
RECI Co2 Laser Tube, '8000 Working Hours,
Components & Parts also from Germany or Japan for better Accuracy and Smoothness
Co2 Filtered Glass on the Door
Bigger & Silent Extraction Fan and Tube
Bigger Air compressor
Modern 'ZNSE Focus Lens
Updated software, compliable with all Windows Systems.
More stable stepper motors
Machine comes with both 'Legs & Locking Wheels' Can used both at once.
Technical Parameter: Model No. | GY-1218SH |
Processing scale | 1200mm*1800mm |
Net Weight | 2500Kgs |
Dimension(L*W*H) | 3100*2100*1600mm |
Laser Type | CO2 Sealed Laser Tube |
Laser Power | 400W Single Head |
Moving way | Gantry Type |
Driving Motor | High precision Ball screw rail and Servo Motor |
Cutting Depth | 6mm-22mm Plywood |
Cutting Precision | ±0.05MM |
USB Port Connection | Yes |
Operating Temperature | 0-45°C |
Mould Knife Thickness | 0.45mm, 0.71mm,1.07mmetc. controllable |
Cutting Speed | 25-30meters/hour |
Protective Gas | Dry and Oil-free Air |
Power Supply | Single-phase Electricity 220V±5% 60Hz 10A |
Numerical Control Panel | LCD Screen, Light-touched Key-press |
Software Supported | CorelDraw, Auto CAD, Photo Shop, |
Graphic format support | PLT,DXF,BMP,JPG,GIF,PGN,TIF |
EMS Memory | attached 32MB memory, can work under off-line condition |
Assistant Equipments | Air Dryer, industrial chiller, Exhaust Fan, Computer System |
Recommend spare parts | Laser Tube and Lens |
Our Laser Die Cutting Machine Include all this extras:
Industrial Water Chiller CW3000 CW5000
Industrial Exhaust Fan
Honey Comb Table
One Year Warranty
24/7 Support E-mail online, Skype video, Teamviewer online
Professional User's manual
CD installation video and Training video
Free Training at supplier factory.
Machine Maintenance
Detailed maintains steps was mentioned at the User's Manual!
Using Software
Adjust the optical laser path
Health And Safety Precautions
Can be used with following materials:
Acrylic, Perspex, Plastics, PVC, Glass, Acrylic Mirror, Leather, Slate, Stone, Paper, Granite, Wood, Organic Glass, Crystal, Garments, Jeans, Paper, Leather, Rubber, Stones, Ceramic, Mobile phones.
You are most welcome to come for a demonstration and view the machine, the cutting speed & all the accessory's that we provide with our Laser Cutting Machine. If you are unable to come at this moment you also are most welcome to send your material and a files so our engineer can send you a full report on the cutting speeds on the different materials.
We do deliver our machines all over the world, machine will be testing 24*7 hours. User's Manual, CD with video will show you how to maintain your Co2 Laser Machine & all the health and safety precautions and how to use the software.
Please feel free to ask any questions. we reply back each call !
We have machine and a full spares Parts in stock !
Service
a. One Year Warranty
b. 7*12hrs online service(E-mail, Skype WeChat, Whatsapp,Teamviewer)
c. Manual, Software, Video, CD
d. Free training in factory
e. Technician local service available
Looking for agents all over the world! Any questions, welcome to contact us!
