Grain Moisture Meter
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
Product Specifications
| Prod Model: |
SR6822G, SR6828G, SR6828P |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

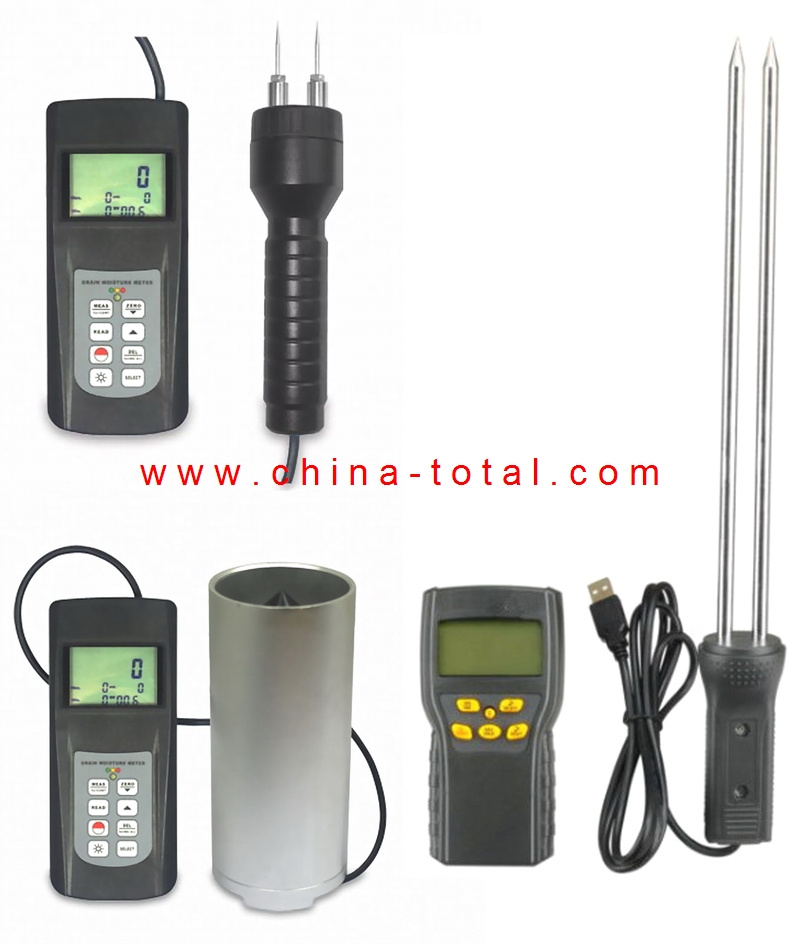

SR6822G Grain Moisture Meter
Feature:
Digital food seeds moisture meter. Test within the scope of plant water (soybeans, wheat, corn, paddy, coffee beans)
Specification:
1. Moisture measuring range: 2% to 30%
2. Maximum error: ± (1%Rh +0.5)
3. Resolution: 0.5%
4. Temperature measuring range: -10° C to 60° C
5. Maximum error: ± 2° C(± 4° F)
6. Resolution: 1° C /2° F
7. Environment
8. Ambient temperature: -10° C to 40° C
9. Ambient humidity: 0~70%RH
10. Dimension: 174*38*73mm (main unit)
11. Weight: 406g
12. It is the digital food seeds moisture meter. Test within the scope of plant water (soybeans, wheat, corn, paddy, coffee beans)
13. Accessories: Portable box, operation manual, measurement probe.
SR6828G Grain Moisture Meter (Cup Type)
Applications:
Used for fast and accurate measurement of moisture in the process of allotment, acquisition, storage, machining of packed grains, feedstuff, powder.
Features:
* Able to measure grains up to 36 species.
* The cup type measurement causes small error.
* Wide measuring range.
* Two presentations, digital display and color coded LED indication.
* Use the exclusive Micro-computer LSI circuit and crystal time base to offer high accuracy measurement. It can obtain automatically the temperature corrected moisture value.
* Use "USB data output" and "RS-232 data output" to connect with PC.
* Provide "Bluetooth ™ Data output" choice.
Standard Accessories:
1. Main Unit
2. Cup Sensor
3. Carrying Case
4. Operation Manual
Optional accessories:
1. USB, RS-232C data cable with software
2. Bluetooth data out put with software
SR6828P Moisture Meter (Pin type)
Applications:
Applicable of wood fiber materials, wooden articles, Chinese traditional medicine, tobacco, cotton paper, building, soil and other fibre materials.
Features:
* Measure the moisture of sample by testing the conductivity between two pin probes.
* Two presentations, digital display and color coded LED indication.
* With storage and statistical functions.
* Use "USB data output" and "RS-232 data output" to connect with PC.
* Provide "Bluetooth ™ Data output" choice.
Standard Accessories:
1. Main Unit
2. Carrying Case
3. Operation Manual
4. Measuring Pin (P28)
Optional accessories:
1. Moisture Standard 18 %
2. USB, RS-232C data cable with software
3. Bluetooth data out put with software
|
Model |
SR6828G |
|
Grains |
22 Species |
|
Measuring Range |
0~50 % |
|
Accuracy |
± (0.5n%+0.5) |
|
Resolution |
0.1 |
|
Display |
4 Digits, 10 mm LCD, With Color Coded LED Indicator |
|
LED Indicator |
Green LED represents a safe, air-dry state |
|
Yellow LED represents a borderline state |
|
Red LED represents a damp state |
|
Calibration |
Automatic |
|
Battery Indicator |
Low Battery Indicator |
|
Data Output |
USB, RS-232, Bluetooth |
|
Operating Conditions |
Temperature: 0~50 %°C, Humidity: < 90 %RH |
|
Power Supply |
4*1.5V AAA Size (UM-4) Battery |
|
Dimensions |
Uint: 150*65*30 mm |
|
Sensor: 175*76*76 mm |
|
Weight |
690g (Not Including Batteries) |
|
Model |
SR6828P |
|
Meaning |
Pin Type |
|
Specifications |
Wood Over 150 Species |
|
Measuring Range |
0~80 % |
|
Accuracy |
± (0.5%n+0.5) |
|
Resolution |
0.1 |
|
Display |
4 Digits, 10 mm LCD, With Color Coded LED Indicator |
|
LED Indicator |
Green LED represents a safe, air-dry state |
|
Yellow LED represents a borderline state |
|
Red LED represents a damp state |
|
Calibration |
Automatic |
|
Battery Indicator |
Low Battery Indicator |
|
Data Output |
USB, RS-232, Bluetooth |
|
Operating Conditions |
Temperature: 0~50 %°C, Humidity: < 90 %RH |
|
Power Supply |
4*1.5 AAA Size (UM-4) Battery |
|
Dimensions |
Main Unit |
150*65*30 mm |
|
Measuring Pin |
192*44*44 mm |
|
Weight |
324g (Not Including Batteries) |
