Product Specifications
| Prod Model: |
GPPS-YY |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Granules |
| CAS No.: |
9003-53-6 |
| Density: |
1.04-1.111g/cm3(20c) |
| Grade: |
Injection Blow Extrusion Pipe |
| Product Name: |
Virgin PS /GPPS/ HIPS Granules |
| Model Number: |
GPPS |
| Materials: |
General Purpose Polystyrene/GPPS |
| Delivery: |
Within 7-15days After The Payment |
| Colour: |
Transparent,White,Blue,Green,Red,Yellow |
| Name: |
General Purpose Polystyrene Granules |
| Material: |
General Purpose Polystyrene/GPPS |
| Usage: |
General Plastics |
| Color: |
White |
Product Description
GPPS granules Specifications:
GPPS/ HIPS
1:virgin/recycled gpps raw material
2:CIQ SGS ISO9001:2000
3:Manufacturer not a trader
4:Free sample MSDS COA
GPPS/ General Purpose Polystyrene Granule / HIPS/ High Impact Polystyrene Granule

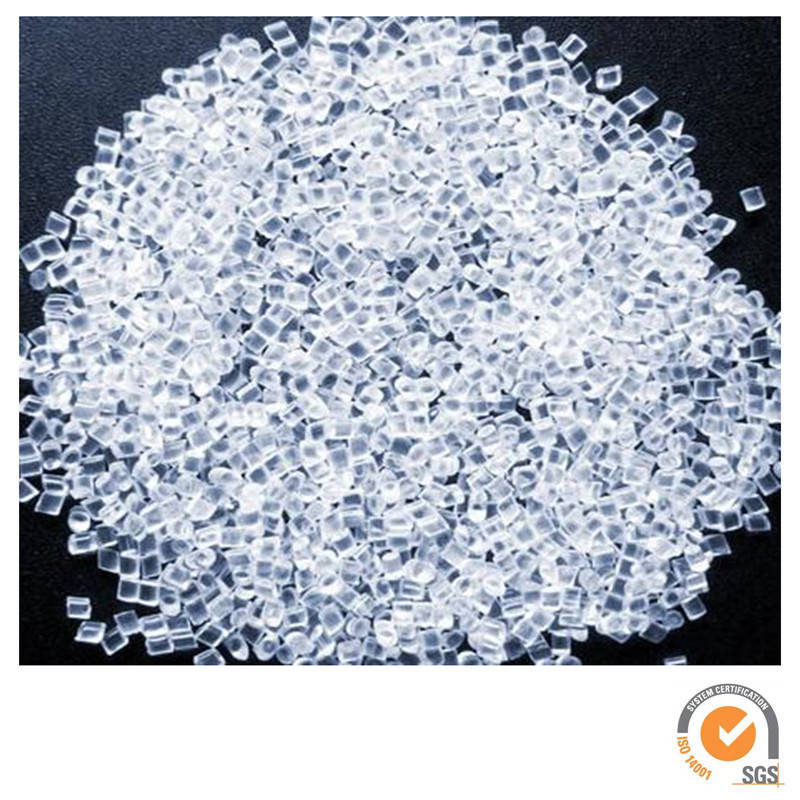

virgin GPPS granules
Introduction of GPPS granules:
General Purpose Polystyrene is a kind of thermoplastic resin, is a colorless, odorless, tasteless, shiny, transparent beaded or granular solid. Density is 1.04 to 1.09, transparency is 88% to 92%, refractive index is 1.59 to 1.60. In the stress function, resulting in birefringence, the so-called stress - optical effect. Product of the melting temperature is 150 to 180 ° C, thermal decomposition temperature is 300 ° C, the heat distortion temperature is 70 to 100 ° C, long-term use temperature is 60 ~ 80 °C
GPPS granules Characteristic:
High transparency, high temperature resistant and high strength
GPPS soluble in aromatic hydrocarbon, chlorinated hydrocarbon, aliphatic ketone and ester.
Resistant to some mineral oil, organic acid, alkali, salt, low alcohol and the role of the aqueous
solution.
Performance is excellent, volume resistance and surface resistance are very high, and not affected
by temperature, humidity change effects and also do not suffer the effects of corona discharge.
Radiation resistant performance is also very good.
GPPS granules SPECIFICATION :
| Item | Test conditions | Test method | Test data | unit |
| Density |
| ISO 1183:1987 | 1040 | kg/m3 |
| Water absorption |
| ISO 62:1999 | <0.1 | % |
| Melt flow rate | 200°C/5kg | ISO 1133:1997 | 3.8 | cm3/10min |
| Process shrinkage |
| ISO 294-4:1997 | 0.4-0.6 | % |
| Charpy impact strength | 1eU | ISO 179:1993 | 15 | kj/m2 |
| Tensile modulus | 1mm/min | ISO 527-2:1993 | 3300 | MPa |
| Elongation | 50mm/min | ISO 527-2:1993 | 3 | % |
| Tensile strength at break | 50mm/min | ISO 527-2:1993 | 55 | MPa |
| Ball indentation hardness H | 358N/30s | ISO 2039-1:1993 | 150 | N/mm2 |
| Bending strength | 2mm/min | ISO 178:1993 | 100 | MPa |
| HDT | 1.8MPa | ISO 75-2:1993 | 84 | °C |
| Linear coefficient of thermal expansion | (23-80)°C | DIN 53 752 | 0.8-1.0 | K-1 |
| Heat conduction |
| DIN 52 612 | 0.16 | W/mK |
| Vicat softening point | B50/oil | ISO 306:1994 | 93 | °C |
| Flame retardance | >1.4mm | UL-Standard 94 | 94HB | Class |
| tem | Testing standards
| Test Conditions
| Units | PG-22 | PG-33 | PG-80 | PG-80N | PG-383 | PG-383M |
Melt flow index
| D-1238 | 200°C*5kg | g/10min. | 17.5 | 7.4 | 4.0 | 5.7 | 3.0 | 3.0 |
Softening point
| D-1525 | 1kg. | °C | 87.0 | 94.0 | 97.7 | 97.6 | 105.0 | 96.3 |
Tensile strength
| D-638 |
| Kg/cm² | 420 | 470 | 500 | 490 | 560 | 520 |
Tensile modulus
| D-638 | - |
| 26460 | 26220 | 26720 | 26720 | 28140 | - |
Bending strength
| D-790 | - | Kg/cm² | 540 | 670 | 690 | 690 | 820 | - |
Flexural modulus
| D-790 |
| Kg/cm² | 31000 | 31000 | 31000 | 31000 | 33000 | - |
Heat distortion temperature
| D-648 | - | °C | 75 | 79 | 81 | 81 | 86 | - |
| Use | - | - | - |
Mixed leveling
|
Injection level
|
Injection level
|
Injection level
|
Board-level charge
|
Injection level
|
GPPS granules Application:
1.Food packaging.
2.Electrical industrial, instrumentation, communications equipment industry and other various instruments has been widely used as a shell, lamp, optical parts, equipment parts, transparent windows mirror, transparent model, acid, chemical storage tank, acid tank transport, telecommunications components, high frequency capacitors, high frequency insulation pads, brackets, inserts and frozen insulating materials.
3.All kinds of daily necessities,such as Plastic Cutlery, Toys.
Note:As the various of types,if you have any requirement,please tell me your reqirement about the product,the MFI and your specific application,then we could supply you the right product and best price,also we could produce follow your demand.
GPPS granules Storage:
It should avoid damp, contaminated and direct sun light during transport.And should be stored in ventilated and dry place. Do not put it with flammable and corrosive substances together,and away from the fire
GPPS granules Packing:
25kg/bag 20t/20'FCL
