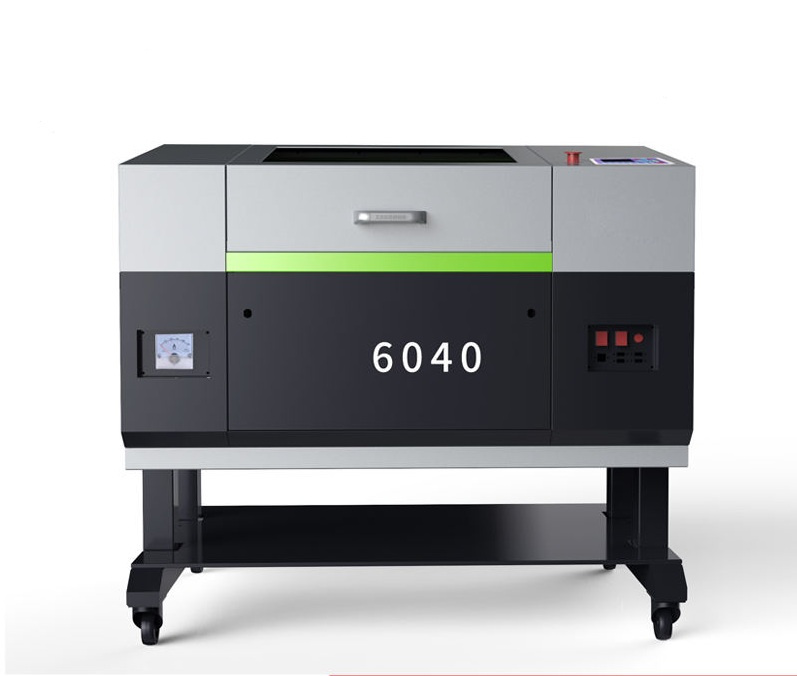

Good Quality High Quality Jsx-6040 High Speed CO2 Laser Cutting

Name: Good Quality High Quality Jsx-6040 High Speed CO2 Laser Cutting
Brand: china-crystals.com
SKU: 820422435
Availability: InStock
Rating: 4.6 (146 reviews)

Price:	US $ 2500-2900/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	JSX-6040

Product Description

Main features

1) small working area 600*400mm; good for small materials processing

2) can be installed with 60w/80w/90w/100w laser tube; for engraving & cutting

3) Small machine body, very easy to move or put on table

4) Very cheap price

Technical parameter

Model			JSX-6040 laser cutting machine
Working area			600*400mm
Laser tube power			25w-60w
Max. engraving speed			1000mm/s
Max. cutting speed			600mm/s
Laser type			CO2 laser tube RECI
Life time of laser tube			8000~10000hours
Work table			Blade table
Min. forming character			1*1mm
Max. scanning precision			0.0254mm
Positioning precision			0.01mm
Laser tube cooling			Water cooling
Power supply			220V/380V 50Hz/60Hz
Drive mode			Stepper motor
Software included			Laser cut 6.1
Design software			CorelDraw, AutoCAD (compatible), Photoshop
Picture format supported			PLT, DXF, BMP, AI (direct), JPG, GIF, PGN, TIF (conversion)
360° slope engrave			Yes
Communication interface			USB
Operating system			Windows98/2000/XP/VISTA/7
Engrave curve surface			< 1.5mm
Cooler			Water pump
Certificate			CE, FDA
Dimension			1020740570mm
Standard accessories			1. Laser engraving cutting software, laser cut 5.3 2. Blade table 3. USB cable 4. Red point 5. Air exhaust fan 6. Air pump 7. Imported 1 lens and 3 mirrors 8. Laser tube installed in the machine 9. Tool box that you need to repair or maintenance 10. User manual of machine that tell you how to run the machine and also about the problems and solutions

Applicable materials

Acrylic, PVC, rubber sheet, plastic, crystal, glass, wood, bamboo, oxhorn, figuline,marble, leathe,cloth,

double-color board, etc. nonmetal materials , timekeeper and jewelery industry and so on.

Parameters of Products

Engraving area	500*300mm	Gross power	1000W
Engraving speed	0-64000mm/min	Operating temperature	0-45
laser power	25W/35W/60W	Operating humidity	5%-95%
Resolution ratio	0.025mm	Graphic format supported	BMP,GIF,JPEG,PCX,TGA,TIFF,PLT,CDR,DWG,DXF
Minimum shaping character	1mm for letter,2mm for Chinese	Graphic format supported	BMP,GIF,JPEG,PCX,TGA,TIFF,PLT,CDR,DWG,DXF
Resseting positioning accuracy	0.01mm	Power supply	220V+-10%,50HZ/60HZ

Appicable Industry and Cutting Samples

Wood, paper, leather, cloth, organic glass, resin, acrylic, woolens, plastic, rubber, ceramic tile, crystal, bowler, bamboo.

Applicabe industries:
1. Stone Industry: marble, granite, white marble etc.
2.Artcrafts Industry: wood,bamboo, elephant's tusk,bone, leather, sea shell etc.
3. Advertisement  Industry: double color board,acrylic engraving and cutting,label engraving,crystal etc.
4. Model Industry: sand table constructtion model,plane model etc.
5. Packing Industry:rubber engraving,plastic,doubling plate,die board cutting etc.
6. leather and cloth processing Industry:compound leather,man-made leather,fabric,fur ,toy etc.
7. other industry : glass,crystal engraving,paper/greeting card cutting etc.

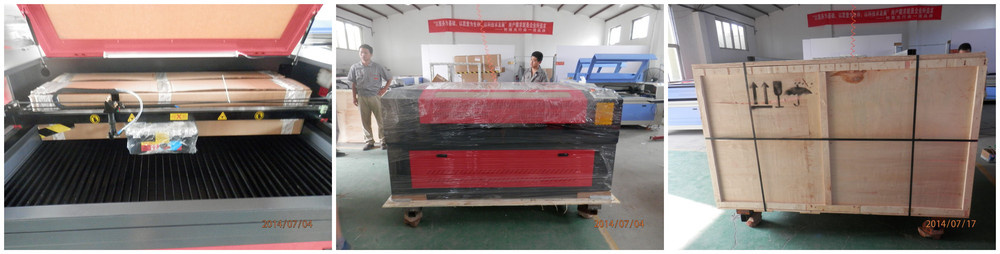

Packing wooden case is after fumigation treatment. Needn't timber inspection,saving shipping time.
Packing wooden case is after fumigation treatment. Needn't timber inspection,saving shipping time.
We can arrang shipment according to you request.
•Sea Transportation
•Land Transportation
•Air  Transportation

Warranty and Service
1.The quality warranty period is 1 years which counted from the day that the shipping commodity arrived at the port of destination, excluding the physical damage, We will provide you with the fittings for free during the guarantee period. But please kindly note that all users are kindly required to return us the damaged fittings by courier with your charge before we send back the alternative fitting parts. After warranty period, the fittings which you need repaired or changed should be in charge by you, and it will be reasonable charged.
2.Since it is difficult for our engineer to maintain the machine face to face, we will build a plenty of online-supports contact, which means we will give you technical supports by email, MSN/Skype, camera, video, telephone and fax when user meets some problems on installing, operating, adjusting, maintaining, etc.
3.When you meet some problems with installing, using or adjusting, but our online-support can not solve it, we also offer Door to Door service. If you need engineer(s) to assemble or maintain or adjust the machine in your country, you would like to be required to assist us to go through the visa formality, traveling expenses prepaid and accommodation arrangement during the business trip and the service period before they dispatched, and please kindly arrange the translating person for the engineer during their service period.  Or you can arrange your engineer to come to visit our factory to get a long-term free technical training as well!
Pre-sales & After-sales service commitment
Pre-sales service: Free sample making
For free sample making/testing, please send your samples or products CAD Graphics to our company in China. Try before you buy.Progressing Solution Design according to customer's product processing requirement, we can design the unique solution that supports higher manufacturing efficiency and better processing quality for customer.
After-sales service: Training to install(3 options):
A. We will supply the machine with training video and user's manual in English for installing, operation, maintenance and trouble-shooting, and shall give technical guide by e-mail, fax, telephone/MSN/ICQ and so on, when you meet some problems of installation, using or adjusting.
B. You can come to our laser factory for training. We will offer professional guide. Direct and effective face-to-face training. Here we have assembled equipments, all sorts of tools and testing facility. Training Time: 3~5 days
C. Our engineer will do a door-to-door instruction training service at your local address. We need your help to deal with the visa formality, prepaid traveling expenses and accommodation to us during the business trip and service period before their dispatch. It's better to arrange a translator for both of our engineers during the training period. Training Time: 7 days
Remark: The charge of visa application ,round air ticket, accommodation expenses in your country will burden by your side.
Please feel free to contact us for any question or problem, we will offer you a reply within 24 hours, our contact information as followings:

We are a professional R & D, production of industrial laser cutting equipment, high-tech enterprises. After several years of development and laser technology innovation, production base is located is known as "China's first town edge molding machine, ” --Jiangning District. JSX mechanical shearing bending follow the international forefront of laser technology, and cooperation with Germany, Russia, the United States and other world-renowned experts, and strive to build the concept of the global level of the device.

Our main products including medium power fiber laser cutting machine (300-2000W), large format inkjet printer, low-power CO2 laser cutting machine (<300W) and large-scale hydraulic bending machines and shears. JSX has long been used in machinery and equipment: Electric power, automobile manufacturing, machinery and equipment, electrical equipment, hotel kitchen equipment, elevator equipment, advertising signs, car decoration, sheet metal production, precision parts, metal products and other industries.

Our products are widely exported to countries all over the world, like Russia, Spain, India, Korea, Malaysia, Singapore, Saudi Arabia, South Africa, Iran, Indonesia, Turkey, Jordan, Dubai, Poland, Morocco, Mexico, Brazil, Lebanon, Thailand, Vietnam, Kazakhstan, Bangladesh, Hong Kong and Taiwan, more than 40 countries or regions and Chinese provinces and cities.

"Quality is the best brand" is the eternal philosophy of JSX machinery, research and development, design and production of each device are focused on technological innovation, scientific design, precision manufacturing, and in strict accordance with the ISO9001: 2008 (Germany's TUV certification) quality management system checks each production step to ensure the performance and quality of every factory equipment.
