Product Specifications
| Prod Model: |
MGO Board |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Grade: |
Grade A |
| Thickness: |
15mm |
| Appearance: |
Panel |
| Color: |
White |
| Material: |
Non-asbestos |
| Type: |
Magnesium Oxide Board |
| Edge: |
Square |
| Shape: |
Square |
| Refractory Temperature: |
1770~2000℃ |
| Usage: |
Building |
| Surface Finishing: |
No |
Product Description

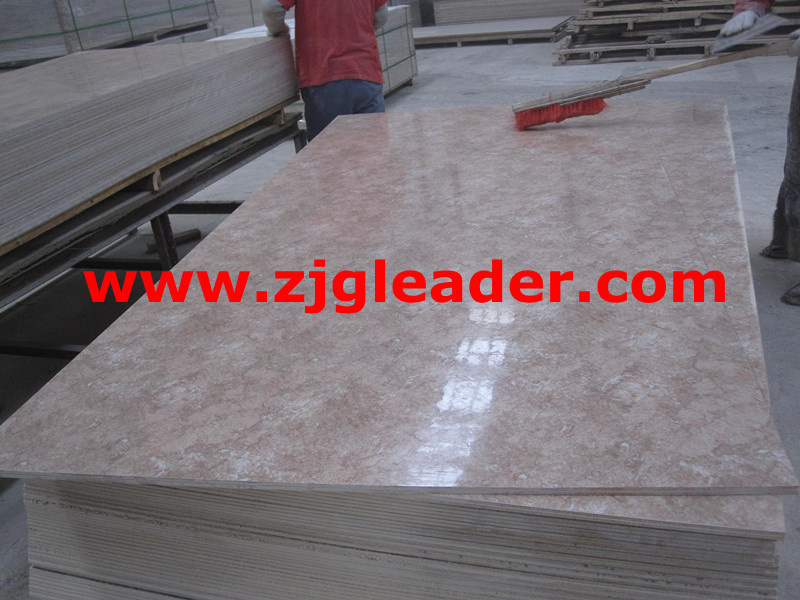

HPL laminate MGO board
Specifications
1. Size: 1220*2440 Other sizes can be cut.
2. HPL skin thickness 0.5-1mm.
MGO board thickness: 3-20mm
Surface: Glossy, matt, texture, crystal, mirror, pile face, plain colors, fine line, wood grain, wave, Solid texture, metallic, pearlescent, stone, etc
| Normal Size: | 1220mm×2440mm |
| Max Width: | 1220mm |
| Max Length: | 3000mm |
| Thickness Range: | 3-20mm |
| Availiable color: | White,grey,green,red and pink |
| Fireproof | A grade (GB8624) |
| Density | 0.96-1.03g/cm3 (GB/T7019-1997) |
| Intensity of bending resistance when dry | 18Mpa (GB/T7019-1997) |
| Intensity of bending resistance when moisture-saturated condition | 22Mpa (GB/T7019-1997) |
| The rate of deformation when pick up the moisture | 0.26% (GA160-1997) |
| The shrinking rate when heated | 1.0% (GA160-1997) |
| Water permeability | There is no drop of water to emerge in the back (CNS 13778) |
| Impact resistance | No carck,strip and run through (CNS 13778) |
| Thermal resistance | 1.14m2K/W (GB/T13475-92) |
| Sound insulation | >44db (GBJ121-88) |
| Security | 100% no asbestos |
Advantage:
1. Tough, abrasion-resistant, heat-resistant
2. Acid-resistant, alkali-resistant, oil-resistant
3. With smooth surface, easy to clean
4. Fireproof: Grade A non-combustible
5. Waterproof
6. Healthy and environmental friendly, doesn't contain asbestos, formaldehyde or benzene
Application: Interior decoration used in furniture, cabinet, Marine, kitchen, bathroom, teapots, windowsills, interior wall panel and so on.
Zhangjiagang Leader New Construction Material Co., Ltd.
The main products we manufacture and export as below:
A. MGO board
(Common board, Sanded board, Slurry board)
B. Ceiling and T-bar
(Perforated acoustic panel, PVC coated MGO ceiling, Mineral fiber ceiling, T-bar, T-grids)
C. SIP sandwich panel
(MGO+EPS/XPS+MGO, FCB+EPS/XPS+FCB, FCB+EPS/XPS+MGO)
D. Cladding
(Pattern: Impression, Tile, Face brick, Timber grain, Sand rock, Broken stone, Broken brick, Ceramic brick, ODD brick, Culture stone)
E. Fiber cement board/Calcium silicate board
F. Melamine MGO board
(HPL, UV, Plywood)
H. Accessories
(Joint Filler, Screws, Fiber Glass Tape, MGO board production line etc. )
Since 2007, we have invested over $10 million with 6 workshops and 6 automatic production lines in the production of construction materials, annual output is over 20, 000, 000 sqm. " ZJGLEADER" Brand of products are welcomed in Southeast Asia, the US, the Middle East and other countries and regions.
We produce your orders following ISO 9001: 2008 and CIS management guidelines. We constantly insist on the principle-quality and customers first that no substandard products can be delivered to clients.
Welcome to visit our company! For further information, pls contact us now, thank you!
Our official website: www.zjglearder.com
