| Price: | US $ 3100-3659/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Money Gram |
| Prod Model: | Vocano-Jet Pro |
|---|---|
| Model Number: | Vocano-Jet PRO T Shirt Printing Machine |
| Color: | Cmyk+Ww |
| Type: | Digital Flatbed Printing |
| Dimensions: | 89*75*54cm |
| Ink Type: | Pigment/Eco-Solvent/UV Ink |
| Voltage: | 110V50Hz / 220V50Hz |
| Rip Software: | Customise |
| After-Sales Service: | Engineers Available to Service Machinery Overseas |
| Max Printing Size: | 33*50cm |
| Color & Page: | Multi-Colour Printing Press |
| Printing Interface: | USB2.0 |
| System Supported: | Windows7, 8, 10, XP |
| Printing Speed: | A3/60s |
| Usage: | UV Printer |
| Structure: | Flatbed Printing |
| Plate: | Digital Inkjet Printing |

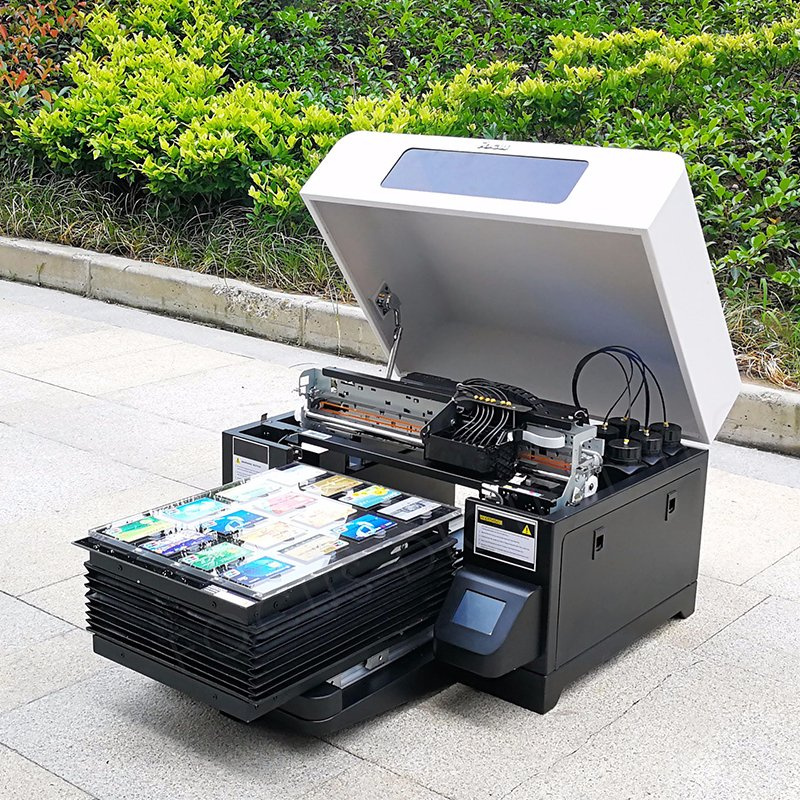

Vocano-Jet Pro A3 size pvc visa card printing machine iphone skin printer that made by focus digital, it can print on the galss, metal, plastic, acrylic, ceramic...etc. with vivid color and fast speed, it is really a good choice for entrel level customer or kiosk using.
it was made from R1390/1400 engine, can get max. printing speed by A4/63s, 6 color model, so can print on dak materials with CMYK+WW to get a good white ink density. also non-chips ink system can allow you refill the ink without buy original cartridges.
A3 size pvc visa card printing printer. Please check the details as following:
Speicification
| Model | Focus-Vocano-Jet | |
| UV lamp system | 6 Power degree adjustable system | |
| UV Power | 100W | |
| UV lamp life time | 50000hours | |
| LED-UV Function | UV light wavelength | 390-400nm |
| Light power | 500mw/w | |
| Cooling type | Water circulation | |
| Cooling adjustment | Automatic on/off between 25-30c | |
| Control Software | FocusRIP-UV V3.5.0 | |
| Repeat printing precision | Overlap small than 0.1mm | |
| Head maintain | Head clean during/after printing, Keep-wet system when idle. | |

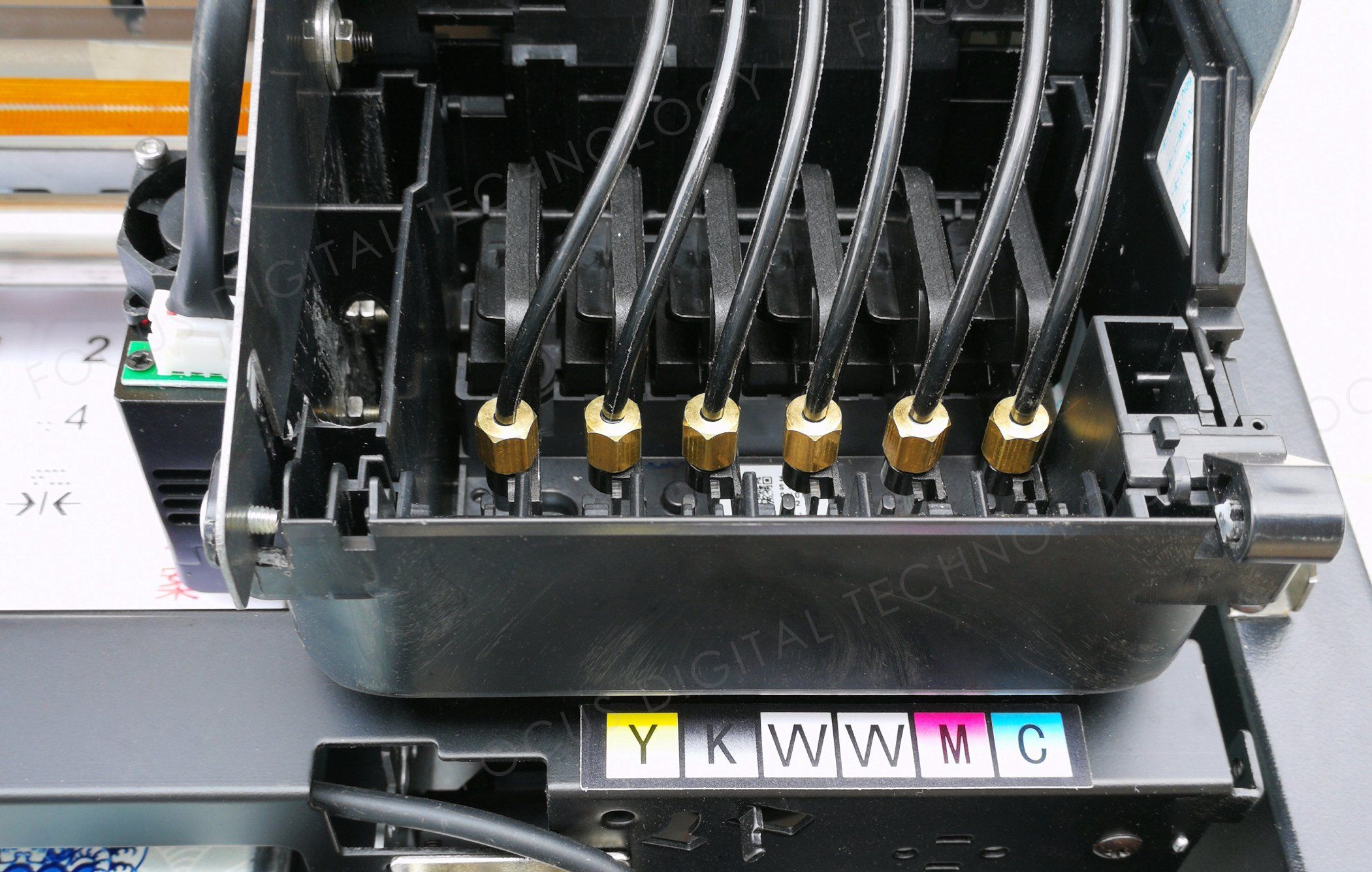

| Ink system | Ink damper refill system | |
| Max. printing size | A3+: 330mm*500mm | |
| Print head | Epson 1390/1400 | |
| Print color | CMYK+WW | |
| Print direction | Unidirection / Bidirection | |
| Print speed | A3(1440dpi)/ 90s | |
| Max. media thickness | 12CM | |
| Max. media weight | 25KG | |
| Max. printing resolution | 2880dpi*1440dpi | |
| Ink volume | 150ML | |
| Ink type | UV environmentally ink | |
| Height adjustable | Manual / Automatic | |
| Print head protection | Intellective automatic detect | |
| Working power | 110-220V 50-60HZ 75W | |
| Interface | USB2.0 /IEEE1394 | |
| System require | Windows XP / Vista/ Win7 / MAC I Linus | |
| Working environment | 25-30C, 50% Humidity, Dust free | |
| Net weight/Gross weight | 70KG/89KG | |
| Printer size | 75CM*65CM*50CM | |
| Packing size | 82CM*82CM*72cm | |
4. Thicken aluminium profile of pvc visa card printing as the keel of the machine to ensure the machine stable working.
5. Support max. material thickness 15cm. expand more printing area for customer.
6. Modularized design of the flatbed of pvc visa card printing to ensure the fast Focus-Pallet-Add-onfamily exchanging procedure for get a mass production.
7. Intelligent Anti-Scratch-Protectionsystem can detect the media by both red ray sensors to prevent the print head from scratching. And ball screw design can make printing resolution much higher and printing more stable.
8. Easy operation panel can control the flatbed for Backward, Foward, Up, Down, Pause/Stop, Online/Offline and ink changing, to let you operate Digital Printing on Glass Ceramic more convinence
9. Patented Focus APCDS system can automatic detect the X(carriage), Y(flatbed) motion pulse and send back the real motion data to mainboard for Interpolating, combine wiht the closed-loop structure circuit design to enhance the stability of the system and ensure the flatbed printing with one pass printing precision and repeat printing precision.
10. Ball screw and raster make printing resolution better

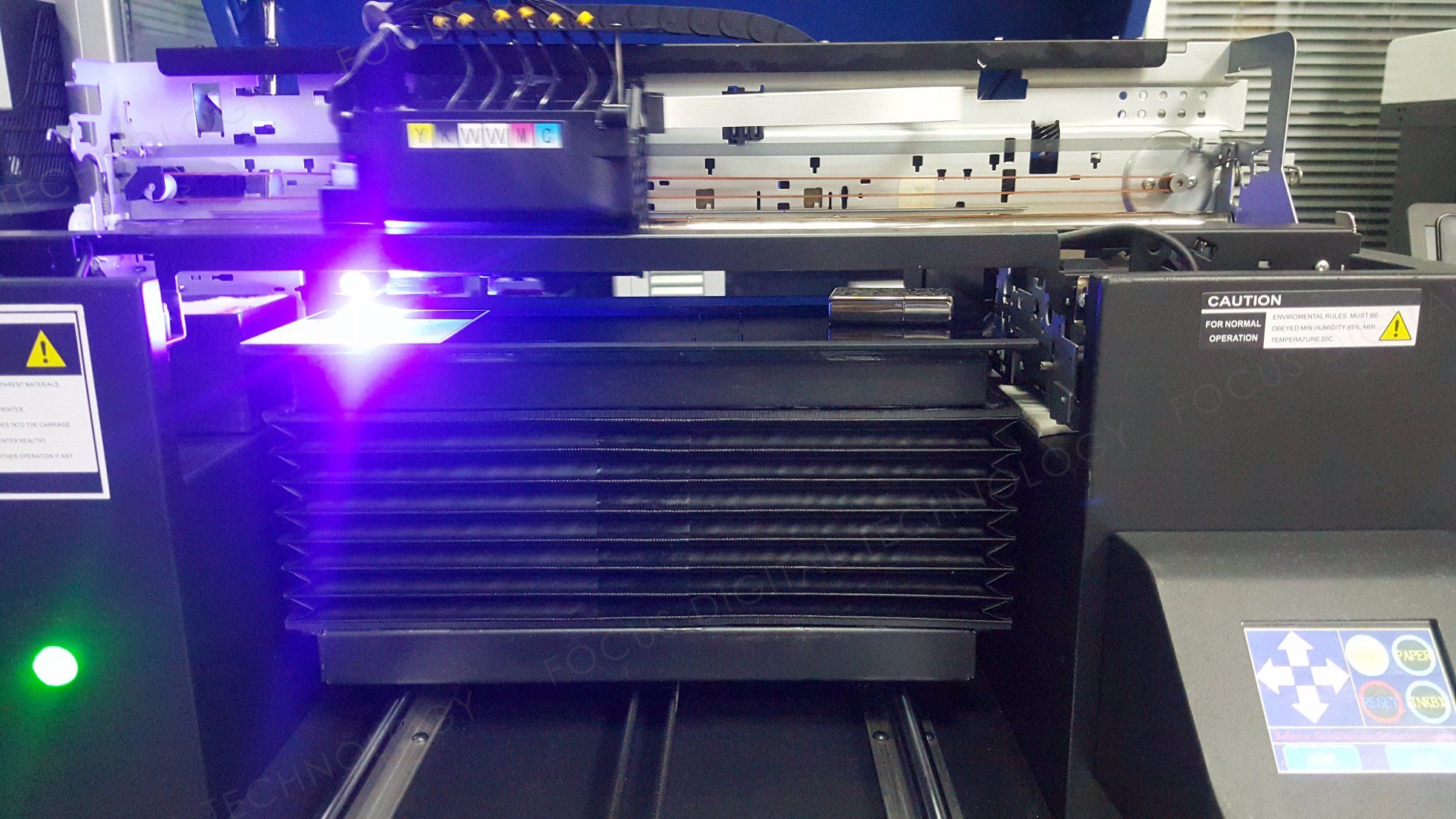

11. High quality LED UV curing system with 48pieces LED UV lamps, can get to the working power during 100W~200W immediately without waiting, also the LED light cost less power and harmless for human health. Combine with the high effective water circulation cooling system to ensure the stable printing.
12. 6 color customize channel of pvc visa card printing can get a high density brilliant printing results both on dark and light media with White ink and color ink printing.
13. Unique 3D texture output option of pvc visa card printing is available.
More details
1. We provide 13 months guarantee since the shipping date. All broken parts except some certain consumes will be exchanged for free.
2. We provide professional user manual, installation video go with products delivery to guide you the installation and daily maintenance.
3. We provide 2 days free online training by webcamera and Teamviewer remote login technology.
4. Focus engineer will fly to your site for final repair if needed.
