Product Specifications
| Prod Model: |
LS-S615-G53-A-ED-BWW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Diameter 111*63mm |
| Replacement: |
75W Halogen AR111 |
| LED Brand: |
CREE Chip |
| CCT: |
Customized 1800k-6000k |
| CRI: |
80ra-98ra |
| Lumen: |
780lm-960lm |
| Beam Angle: |
24 Degree to 40 Degree |
| Warranty: |
3 Years |
| Housing: |
White/Black |
| Base: |
G53/GU10 |
| Emitting Color: |
Full Range |
| Power: |
15W |
| Base Material: |
Aluminum |
| Usage: |
Decoration |
| Life: |
50000h |
| Certification: |
CB |
| Power Source: |
AC |
| Electric Current Type: |
DC |
| Input Voltage: |
100-240V |
| LED Chips: |
CREE |
| Diffuser: |
None |
| IP Rating: |
IP20 |
Product Description
Leiso lighting tech. Co., Ltd. (dongguan) is professional manufacturer for LED lighting integrate research & development, production, sales and service. The company offers complete product categories including LED lamp series, LED spotlight, LED bulb, LED t8 tube light, LED downlight, LED flexible tube light, LED module etc, which can be widely used in indoor lighting, outdoor landscape lighting, solar LED light, electronics, auto, communication, and so on.
Companies adhering to the philosophy of "customer priority, quality first " and the strategic policy of "quality, excellent service " to lead of energy saving LED lighting market. With years of experience in production and research and development. Excellent product quality recognition by our customers.
The factory total area of about 6, 000 square meters, high standards of clean production workshop, with automatic solid crystal, automatic wire bonders, automatic irrigation plastic, automatic color separation and packaging equipment. 300kk annual output more than the product of the making process of purification, anti-static work of international standard facilities closed. More than 200 employees, including 38 of engineering, QA and R & D staff.
"science and technology to create the future, quality creates brand. " LEISO based on domestic growth abroad. "quality first, customer first, innovation, service first"is the established policy of the company, to the colorful LED products, customers willing to form a close alliance, to add luster to the modern human.
Power: 15W
Replacement 75W halogen AR111
Input voltage: 100-240V AC 110V /220V AC
CCT: Customized from 1800-2500K, Standard CCT: 2700K, 3000K, 4000K, 5500K
Lumens: 840lm-960Lm
CRI: 80Ra/90Ra/ Customized 95Ra
Beam angel: 24/40 degree
Size: Φ 111*H63 mm
Dimmable: Available with external driver or GU10 base
Warranty: 3 years free replacement
Lifespan: 45000hrs
Advantage:
1. Adopt patented SCOB light source (stereoscopic chip on board).
2. Unique design makes it different from existing LED Bulbs of public mould.
3. Optically designed reflector keeps the same appearance and light distribution with traditional halogen lamp, which is easily accepted by users.
4. Long lifetime 45000Hrs(Calculated as 8 hours per day, average lifespan 10 years above).
5. No IR- and UV radiation.
6. Directly replace 75W halogen lamp, saving at least 80% energy.
7. TUV GS, CE, CB, SAA, EMC, ERP and RoHS obtained.
8. Customized color temperature from 1800K, 2200K, 2500K, and standard CCT: 2700K, 3000K, 4000K, 5500K
9: CRI 80 and 90 for choose
Notice
1. Make sure the power supplier is adapted to the right voltage before use;
2. Please insure that the switch is off before connect the power supplier;
3. Please dont touch the metal body and watch light source directly;
4. Indoor use only
Application:
Commerical lighting, Hotel, Shops, Shopping Mall and so on.
| Item No. | Data sheet | Power | Lumens (CCT) | Product Dimension | Voltage | Dimmable | Packing Data |
CTN
Qty | CTN
Dimension | Volume weight | Gross weight |

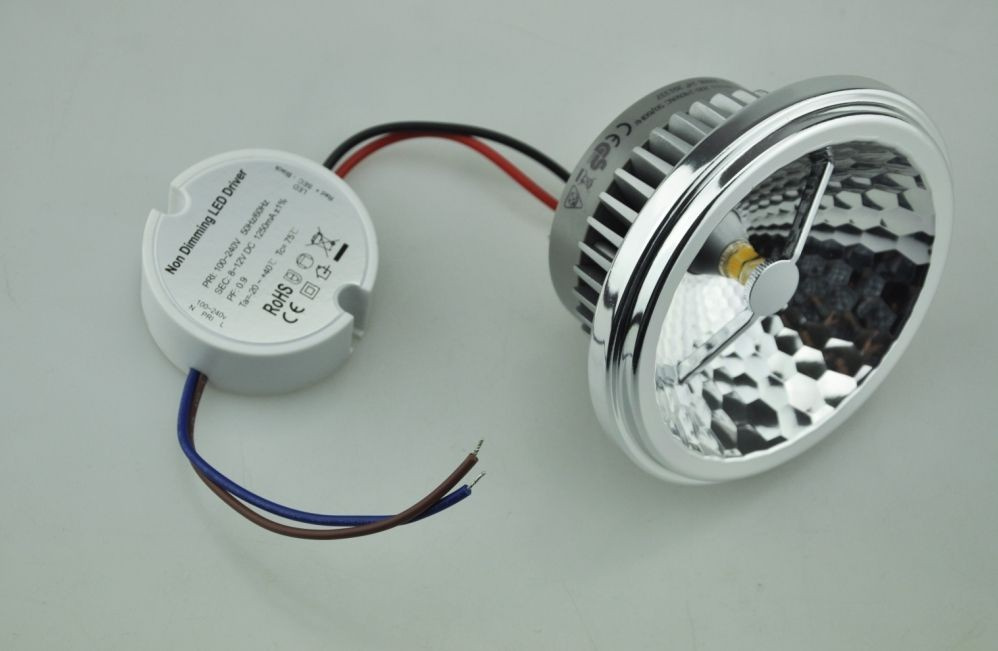

| LS-S615-G53-BWW/BW | * SCOB AR111
* reflector design
* CREE Chip
* Beam angle : 24°/40°
* G53 base | 15W | CRI >80, 840 lm (2700K)
CRI >80, 860 lm (3000K)
CRI >80, 900 lm (4000K)
CRI >80, 960 lm (5500K) | Φ111*H63mm | 12V DC/AC | NOT | 24 | 53x39x28cm | 11.6kg | 11kg |
| LS-S615-G53-A-BWW/BW | CRI >90, 780 lm (2700K)
CRI >90, 800 lm (3000K)
CRI >90, 820 lm (4000K) |
| LS-S615-G53-ED-BWW/BW | * SCOB AR111
* reflector design
* CREE Chip
* Beam angle : 24°/40°
* G53 base
* With External Driver | 15W | CRI >80, 840 lm (2700K)
CRI >80, 860 lm (3000K)
CRI >80, 900 lm (4000K)
CRI >80, 960 lm (5500K) | Φ111*H63mm | 100V~240V AC | NOT | 24 | 53x39x28cm | 11.6kg | 14.74kg |
| LS-S615-G53-ED-BWWD/BWD | CRI >80, 840 lm (2700K)
CRI >80, 860 lm (3000K)
CRI >80, 900 lm (4000K)
CRI >80, 960 lm (5500K) | 220-240V | YES |
| LS-S615-G53-A-ED-BWW/BW | * SCOB AR111
* reflector design
* CREE Chip
* Beam angle : 24°/40°
* G53 base
* With External Driver | 15W | CRI >90, 780 lm (2700K)
CRI >90, 800 lm (3000K)
CRI >90, 820 lm (4000K) | Φ111*H63mm | 100V~240V AC | NOT | 24 | 53x39x28cm | 11.6kg | 14.74kg |
| LS-S615-G53-ED-A-BWWD/BWD | CRI >90, 780 lm (2700K)
CRI >90, 800 lm (3000K)
CRI >90, 820 lm (4000K) | 220-240V | YES |
| LS-S615-GU10-BWW/BW | * SCOB AR111
* reflector design
* CREE Chip
* Beam angle : 24°/40°
* GU10 base | 15W | CRI >80, 840 lm (2700K)
CRI >80, 860 lm (3000K)
CRI >80, 900 lm (4000K)
CRI >80, 960 lm (5500K) | Φ111*H90.5mm | 100V~240V AC | NOT | 24 | 53x39x28cm | 11.6kg | 11.47kg |
| LS-S615-GU10-BWWD/BWD | 100-120V / 220-240V | YES |
| LS-S615-GU10-A-BWW/BW | CRI >90, 780 lm (2700K)
CRI >90, 800 lm (3000K)
CRI >90, 820 lm (4000K) | 100V~240V AC | NOT |
| LS-S615-GU10-A-BWWD/BWD | 100-120V / 220-240V | YES |
