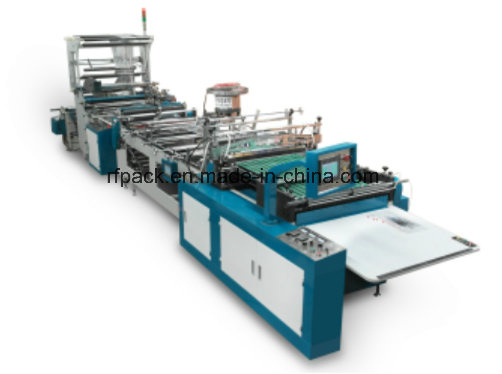

Fully Automatic PE Slider Ziplock Bag Making Machine
| Price: |
US $ 20000-25000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
Product Specifications
| Prod Model: |
TH-800B |
| Machine Type: |
Bag Forming Machine |
| Computerized: |
Computerized |
| Type: |
Plastic Bag Making Machine |
| Seals Mode: |
Zip Lock |
| Product Line: |
Plastic Bag Making Machine |
Product Description
Fully automatic Zip lock Bag Making Machine
Machine Description:1. This machine has following functions: edge-folding, end-folding, heat-fitting, spot-cutting, drilling, welding, and heat-cutting. It can be used to manufacture various types of clip-chain sealing bags, such as inside heat-fitting with spot-cutting, outside heat-fitting with locks.2. This machine has used advanced computer-controlled, liquid crystal display and automatic serving motor-driven. It can cut clip-chain and film, automatically alarm, shut down automatically when no material, stop printing automatically when electric eyes lapse, stop working automatically when temperature is not enough, and fold edges by using photoelectric corrective hemming and magnetic tension. 3. This machine operates easily, seals firmly and has quality appearance.The whole procedure is operated automatically from single film raw material to electric eyes correcting, edge folding, end folding, zipper fitting, pasting, edge welding, edge cutting, ultrasonic wave, electronic eyes printing, drilling, heat cutting, and automatically counting.Main Technical Parameter:| Name | PE Zipper Slider Bag Making Machine |
| Model | TH-800B |
| Raw Material | PE LDPE non-woven |
| Heater | 3kw |
| Bag Making Width | 750mm |
| Bag Making Length | 650mm |
| Bag Making Speed | 40-120pc/min, 8-6m/min |
| Film Thickness | 0.03-0.09mm(single layer) |
| Servo motor | 1.5kw |
| Main motor | 1.5kw |
| Food-out motor | 0.25kw |
| Ultrasonic | 1set |
| Conveying Electrical | 0.55kw |
| Cooling | 0.37kw |
| Voltage | 220V |
| Power | 15kw |
| Dimension(L×W×H) | 6500*1300*1800mm |
| Total Weight | 2T |
Configuration:Japan scholastic inverter 0.75 kw, 1.5 kw, servo motor1.5kw YASKAWA Taiwan weilun LCD mitsubishi PLCzipper discount 1 set of downtimephotoelectric sensor DSTASENSOR ITALY Edge position sensor Ultrasonic type 750 watts of a dc motorzipper tension adjust 1 set,electric delixi, thermometer, omronMachine details pictures
Sample zipper bag with slider :
