Product Specifications
| Prod Model: |
GD6/8-200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Packaging of Goods |
| Packaging Type: |
Bag |
| Driven Type: |
Electric |
| Application: |
Hair Care Products |
| Soft And Hardness: |
Flexible Package |
| Packaging Material: |
Bag |
| Frequency Of Use: |
Long Time |
Product Description

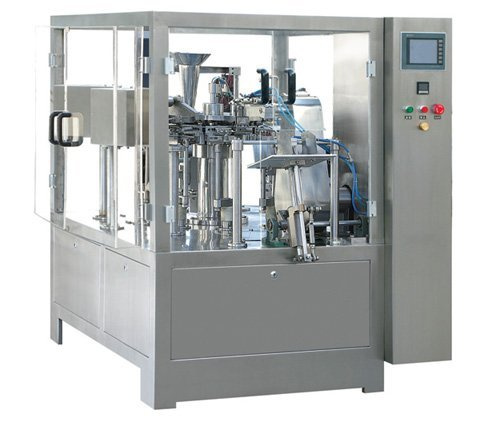

Full Automatic Bag-Given Packing Machine (GD6/8-200)
Eight-work station Running Flow Chart
Six-work Station Running Flow Chart
Solid species; Candy, peanut, green bean, pistachio, crystal candy, brown suger, cookie, cake, daily commodities, cooked food, pickles, puffed food etc.
Granule Species; Grain, refined monosodium glutamate, granular drug, capsule, seed, chemistry condiment, granulated sugar, chicken essence, melon seeds, nuts, pesticide, fertilizer, feed etc.
Power Species; Milk power, grape sugar, washing powder, chemistry condiment, refined sugar, pesticide, fertilizer, feed etc.
Liquid Species & Thick liquid Species; Detergent, millet wine, soy sauce, vinegar, fruit juice, drink, tomato sauce, peanut butter, jam, chill sauce, bean sauce etc.
Materials that can pack in bag.
Features & Characteristics
Full-automatic bag-given packaging machine instead of handwork package, carry out automation of packing for large and small scale enterprise. This type machine improves the production efficiency and lowered cost for every work of lift.
The packaging of machine is in extensive range, can pack the liquid, sauced body, powder, the particle, solid various, only need to set up different supplies and choose different measurement to be filled with the device
The packing bag suits in extensive range, suit for multi-layer compound prefabrication bag made by film and paper.
Change the specification of the wrapping bag rapidly, the automatic given bag device is width can easy adjust by adjustment of the handles.
Accord with the sanitary standard of the food processing machinery, the spare parts on the machine which touch the product or packing bag adopt stainless steel or other materials which accord with the food hygienic requirements, guarantee hygiene and security of the food.
This machine can check there is no packing article or wrapping bag not to open, make sure the filling device and hot sealing device no work, this avoid wasting packing materials and raw material.
The packing materials loss low, what this machine is used is to prefabricate wrapping bag, the wrapping bag pattern is perfect, it is of high quality to seal, this improved the product specification.
Frequency conversion adjusts the speed, this machine uses frequency conversion to adjust and fit rapidly, can be adjusted within the range according to the needs of reality in production.
Easy to operate, adopt advanced PLC to add POD(the touch-sensitive screen) electric control system, the man-machine interface is friendly, Easy to oprate.
GD8-200 have two filling device & two hot sealing devices. Fill more linds of materials
Main Standard Aceessories
Date coder
PLC controller
Pouch open guide with open detector
Consolidate device
Cylinder
Temperature controller
Valve
Vacuum pump
Frequency converter
Output conveyor
Main Optional Accessories
Material(such as blocks, granules, liquid and thick-liquid, powder) weighter & filler
Platform
Check weigher
Material Elevator
Vibrating feeder
Production out put elevator
Metal detector.
| Model | RD8-200 |
| Working station of machinery | Eight-working Station |
| Function | Giving bag,Coding , Opening, Fill consolidate1,Fill consolidate2, Heat sealing1, Heat sealing2, Forming and output product |
| Pouch type |
Portable bagHand luggageZipper bagEdging bag 4 sides
Edging bag 3 sidesPaper bag |
| Size of bag | W:100~200mm L:100~300mm |
| Weight | 1200kg |
| Scaling scope | 5-1500g |
| Speed | 25-45bags/min (The speed depends on the product status and filling weight) |
| Total power | 2.1Kw |
| Dimension | 1140x1500x1560mm |
| Compress air requirement | 0.6m3/min supply by user |
