Product Specifications
| Prod Model: |
FJG-8000-1 |
| Floor: |
as Customer Requirement |
| Material: |
Stainless Steel |
| Light: |
LED |
| Type: |
with Machine Room |
| Speed: |
1.00 - 2.00m/s |
| Capacity: |
500-1000kg |
| Persons: |
6 - 10 |
| Shape: |
Semi-circular |
| Number Of Sides: |
Four |
| Driving Type: |
AC Elevator |
Product Description

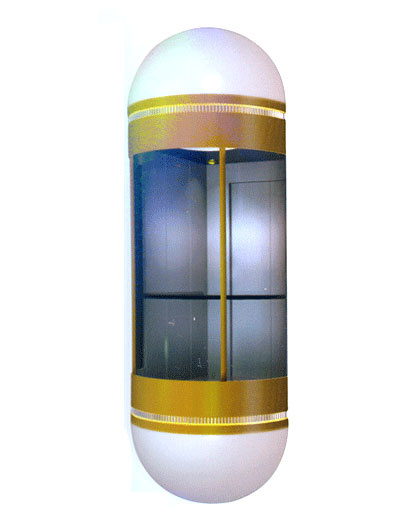

1.FUJIZY SIGHTSEEING ELEVATOR
(1)Permanent magnet synchronous and gearless traction machine
(2)LED car lighting system
(3)Automatic shut-off of car fan and lighting
(4)Energy Feedback system
(5)Highly integrated intellectual control system
(6)Effective vector frequency converter
(7)Long-range monitor
(8)light curtain protection
(9)car operation panel design accords with the best ergonomics principle
(10)Super-thin hall call bottom and exquistie craft
(11)Soft and clear liquid crystal display screen
(12)Vocie promptwith perfecto acoustic quality
(13)various inclination/design
(14)With one year guarantee
(15)With CE and ISO certificate and EN81 standard
Square panoramic elevator with
small machine room |
Rated Loading
Capacity | Rated
Speed | Cabine Size
Width*Deepth | Car
Size | Shaft Size
Width*Deepth | Machine Room Size
Width*Deepth | Overhead
Height | Pit
Deepth |
| kg | M/s | Mm | Mm | Mm | Mm | Mm | Mm |
| 630 | 1.0 | 1400*1100 | 800*2100 | 2250*1600 | 2250*1600 | ≥4500 | ≥1800 |
| 1.5 | ≥4600 | ≥1800 |
| 1.75 | ≥4800 | ≥1800 |
| 800 | 1.0 | 1400*1350 | 800*2100 | 2250*1800 | 2250*1800 | ≥4500 | ≥1800 |
| 1.5 | ≥4600 | ≥1800 |
| 1.75 | ≥4800 | ≥1800 |
| 1000 | 1.0 | 1600*1400 | 900*2100 | 2450*1900 | 2450*1900 | ≥4500 | ≥1800 |
| 1.5 | ≥4600 | ≥1800 |
| 1.75 | ≥4800 | ≥1800 |
Round/Circular panoramic elevator with
small machine room-less |
Rated Loading
Capacity | Rated
Speed | Cabine Size
Width*Deepth | Car Size | Shaft Size
Width*Deepth | Machine Room Size
Width*Deepth | Overhead
Height | Pit
Deepth |
| kg | M/s | Mm | Mm | Mm | Mm | Mm | Mm |
| 800 | 1.0 | 1200*1750 | 800*2100 | 2200*2200 | 2200*2200 | ≥4600 | ≥1800 |
| 1.5 | ≥4800 | ≥2000 |
| 1.75 | ≥5000 | ≥2000 |
| 1000 | 1.0 | 1400*1900 | 900*2100 | 2550*2500 | 2550*2500 | ≥4600 | ≥1800 |
| 1.5 | ≥4800 | ≥2000 |
| 1.75 | ≥5000 | ≥2000 |
2.Company Profile
Shandong FUJIZY Elevator Co.,Ltd.as professional manufacture and researcher of elevators , located in Ningjin Country Economic Development Zone,Shandong Province,China.It has introduced the high technology as a specialized professional enterprise with the intergration of manufacture,sales,installation,maintenance and modernization, The factory covers an area of 150000 square meters ,There are more than 500 employees,80 technology engineers and 30 senior quality inspectors inour company,The elevator tower is 120 meters high..Annual production is 12000 sets,All the elevators and escalators are manufactured as international standard EN81 and EN115.
Our main products are passenger elevators,cargo elevators,hospital elevators,panoramic elevators,home elevators,escalators and moving walks,We have obtained customers' recognition by strong technique power,first-rate manufacture capacity.complete testing measure,excellent quality and good reputation in china and abroad,We are one of the main elevator manufacture in china,We got many certificates for our products,Such as CE ISO9001:2008,ISO14001,2004,OHSAS18001:2007CUTR Certificates for Russia etc.
The successful installation and application of a great number of elevators projects in China and other countries indicate that FUJIZY Elevator's strength and excellent quality as a professional elevator manufacture,Our company will keep going and continue providing excellent service for old and new customers for the purposeof integrity,quality and service in feature,Let build a brilliant future together.
ServiceFIVE WHOLEHEARTED SERVICES, SAFETY LIABILITY IS HEAVIER THAN MT. TAIAttentive works, trustworthy promises, comfortable uses, elaborate after-sale services, safe results!
Shandong FUJIZY Elevator Co., Ltd. owns the perfect service system. It offers the elevator installation, repair and maintenance, long-distance monitor, renewal, transformation, parts supply etc. We provide the clients with more and more convenient services.
The company opens 24-hour free hot-line telephone. It ensures that the users can enjoy the most convenient services within the shortest time possible through nation-wide professional maintenance service institutes.
3.ServiceFIVE WHOLEHEARTED SERVICES, SAFETY LIABILITY IS HEAVIER THAN MT. TAIAttentive works, trustworthy promises, comfortable uses, elaborate after-sale services, safe results!
Shandong FUJIZY Elevator Co., Ltd. owns the perfect service system. It offers the elevator installation, repair and maintenance, long-distance monitor, renewal, transformation, parts supply etc. We provide the clients with more and more convenient services.
The company opens 24-hour free hot-line telephone. It ensures that the users can enjoy the most convenient services within the shortest time possible through nation-wide professional maintenance service institutes.
Shandong FUJIZY Elevator Co., Ltd. With the authorization of FUJI Elevator Corporation, as a professional manufacturer and researcher of elevators, located in Ningjin County Economic Develepment Zone, Shandong Province, China. It has introduced the high FUJI technology as the specialized professional enterprise with the integration of manufacture, sales, installation, maintenance and transformation. There are more than 500 empoyees, 80 technology engineers and 30 senior quality inspectors in our company. The company has also introduced a large number of international advanced equipments including numerical control laser machines, imported numerical control machining center, imported bender, imported plate shearing machine and large-scale chalk line etc...
Our main products are passenger elevator of standard machine room, small machine room and machine-room-less of variable frequency, voltage and speed, freight elevator, hospital bed elevator, residential elevator, sightseeing elevator, vehicle elevator, special type elevator, escalator and automatic sidewalk. We can also customize various kinds of non-standard elevator according to customers' request. And we have obtained customers' recognition by strong technique power, first-rate manufacture capacity, complete testing measure, excellent quality and good reputation in China and abroad. We are one of the main elevator manufacturers in China.
The successful installation and application of a great number of elevator projects in China and other countries indicate that FUJI Elevator 's strength and excellent quality as a professional elevator manufacture. Our company will keep going and continue providing excellent service for the old and new customers for the purpose of integrity, quality and service in future. Let's build a briliant future together.
