Product Specifications
Prod Model: |
FJG-1 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Type: |
with Machine Room |
Speed: |
1.00 - 2.00m/s |
Capacity: |
500-1000kg |
Persons: |
6 - 10 |
Shape: |
Semi-circular |
Number Of Sides: |
Four |
Driving Type: |
AC Elevator |
Product Description

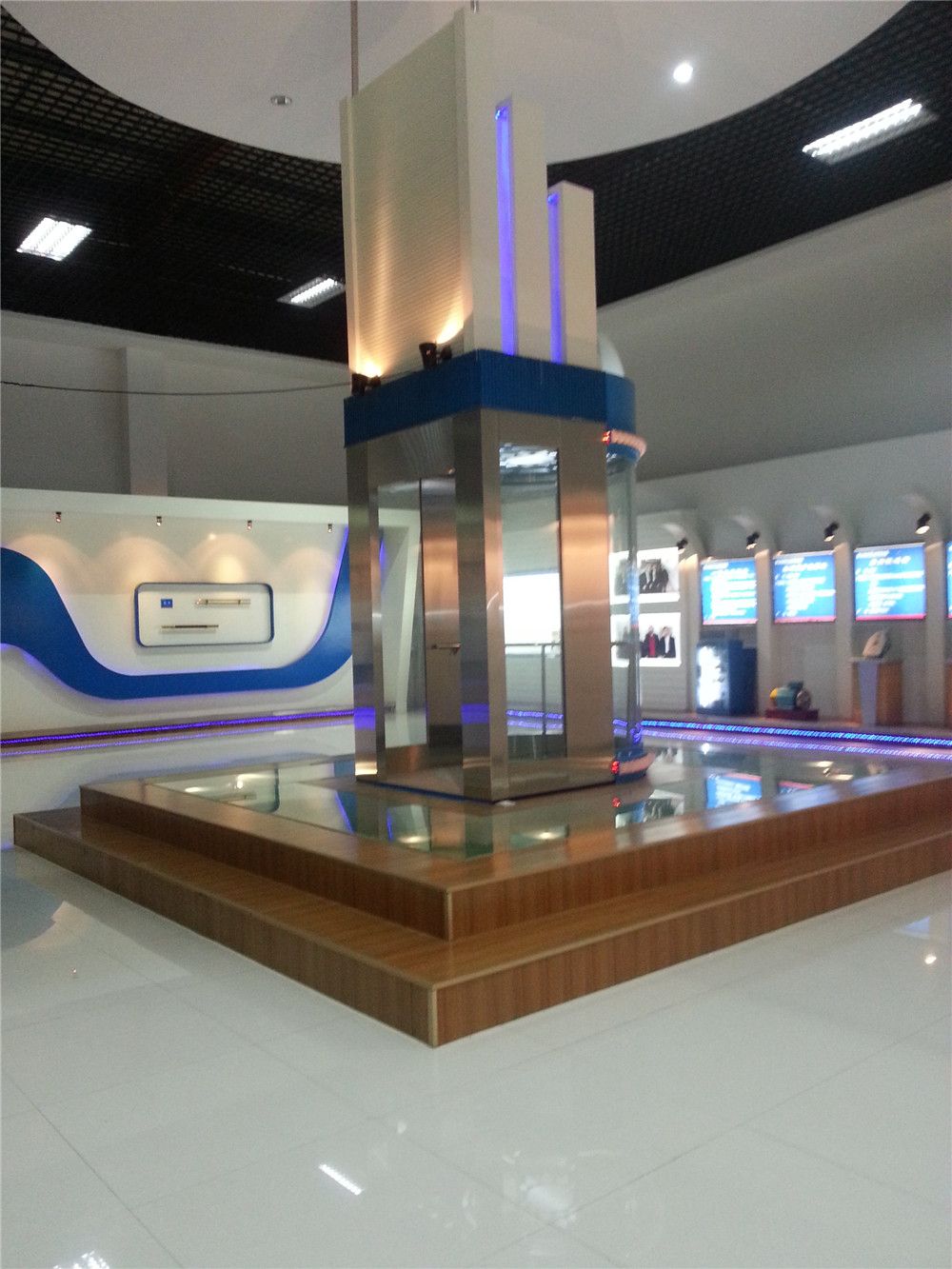

For sightseeing elevator
1,Permanent magnet synchronous and gearless traction machine
2,LED car lighting system
3,Automatic shut-off of car fan and lighting
4,Energy Feedback system
5,Highly integrated intellectual control system
6,Effective vector frequency converter
7,Long-range monitor
8,light curtain protection
9,car operation panel design accords with the best ergonomics principle
10,Super-thin hall call bottom and exquistie craft
11,Soft and clear liquid crystal display screen
12, Vocie promptwith perfecto acoustic quality
13, various inclination/design
14, With one year guarantee
15. With CE and ISO certificate and EN81 standard
Rated Loading Capacity | Rated Speed | Cab Size Width*Depth | Door Size Width*Height | Shaft Size Width*Depth | Machine Room Size | Min Overhead | Pit Depth |
kg | m/s | mm | mm | mm | mm | mm | mm |
630 | 1.0 | 1400*1100 | 800*2100 | 1900*1850 | 1900*1850 | 4400Min | 1500Min |
| 1.5 | | | | | 4600Min | 1600Min |
| 1.75 | | | | | 4700Min | 1700Min |
800 | 1.0 |
1400*1350 |
800*2100 |
1900*2100 |
1900*2100 | 4400Min | 1500Min |
| 1.5 | | | | | 4600Min | 1600Min |
| 1.75 | | | | | 4700Min | 1700Min |
| 2.0 | | | | | 5000Min | 2000Min |
1000 | 1.0 | 1600*1400 | 900*2100 | 2100*2150 | 2100*2150 | 4400Min | 1500Min |
| 1.5 | | | | | 4600Min | 1600Min |
| 1.75 | | | | | 4700Min | 1700Min |
| 2.0 | | | | | 5000Min | 2000Min |
| 2.5 | | | | | 5000Min | 2200Min |
| 3.0 | | | | | 5500Min | 2600Min |
| 4.0 | | | | | 6500Min | 3800Min |
1150 | 1.0 |
1800*1400 |
1000*2100 |
2300*2150 |
2300*2150 | 4400Min | 1500Min |
| 1.5 | | | | | 4600Min | 1600Min |
| 1.75 | | | | | 4700Min | 1700Min |
| 2.0 | | | | | 5000Min | 2000Min |
| 2.5 | | | | | 5000Min | 2200Min |
| 3.0 | | | | | 5500Min | 2600Min |
| 4.0 | | | | | 6500Min | 3800Min |
1250 | 1.0 |
1800*1500 |
1000*2100 |
2300*2250 |
2300*2250 | 4400Min | 1500Min |
| 1.5 | | | | | 4600Min | 1600Min |
| 1.75 | | | | | 4700Min | 1700Min |
| 2.0 | | | | | 5000Min | 2000Min |
| 2.5 | | | | | 5000Min | 2200Min |
| 3.0 | | | | | 5500Min | 2600Min |
| 4.0 | | | | | 6500Min | 3800Min |
1350 | 1.0 |
2000*1500 |
1100*2100 |
2500*2250 |
2500*2250 | 4400Min | 1500Min |
| 1.5 | | | | | 4600Min | 1600Min |
| 1.75 | | | | | 4700Min | 1700Min |
| 2.0 | | | | | 5000Min | 2000Min |
| 2.5 | | | | | 5000Min | 2200Min |
| 3.0 | | | | | 5500Min | 2600Min |
| 4.0 | | | | | 6500Min | 3800Min |
1600 | 1.0 |
2000*1750 |
1100*2100 |
2500*2500 |
2500*2500 | 4400Min | 1500Min |
| 1.5 | | | | | 4600Min | 1600Min |
| 1.75 | | | | | 4700Min | 1700Min |
| 2.0 | | | | | 5000Min | 2000Min |
| 2.5 | | | | | 5000Min | 2200Min |
| 3.0 | | | | | 5500Min | 2600Min |
| 4.0 | | | | | 6500Min | 3800Min |
Shandong FUJIZY Elevator Co., Ltd. With the authorization of FUJI Elevator Corporation, as a professional manufacturer and researcher of elevators, located in Ningjin County Economic Develepment Zone, Shandong Province, China. It has introduced the high FUJI technology as the specialized professional enterprise with the integration of manufacture, sales, installation, maintenance and transformation. There are more than 500 empoyees, 80 technology engineers and 30 senior quality inspectors in our company. The company has also introduced a large number of international advanced equipments including numerical control laser machines, imported numerical control machining center, imported bender, imported plate shearing machine and large-scale chalk line etc...
Our main products are passenger elevator of standard machine room, small machine room and machine-room-less of variable frequency, voltage and speed, freight elevator, hospital bed elevator, residential elevator, sightseeing elevator, vehicle elevator, special type elevator, escalator and automatic sidewalk. We can also customize various kinds of non-standard elevator according to customers' request. And we have obtained customers' recognition by strong technique power, first-rate manufacture capacity, complete testing measure, excellent quality and good reputation in China and abroad. We are one of the main elevator manufacturers in China.
The successful installation and application of a great number of elevator projects in China and other countries indicate that FUJI Elevator 's strength and excellent quality as a professional elevator manufacture. Our company will keep going and continue providing excellent service for the old and new customers for the purpose of integrity, quality and service in future. Let's build a briliant future together.
