Product Specifications
| Prod Model: |
HD101 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Feature: |
Polar Soft Flexible |
| Surface: |
Smooth/Ribbed/Nylon Reinforced |
| Grade: |
Cn-DOP |
| Material: |
PVC |
Product Description
Products DescriptionPolar PVC is commonly used in low temperature environments because of a very high insulating power: it will reduce your energy loss thus save you cost.
Strips and panel stay flexible, resist breaking and cracking whether it be an inside or outside application where temperatures vary from -40°C to +50°C.

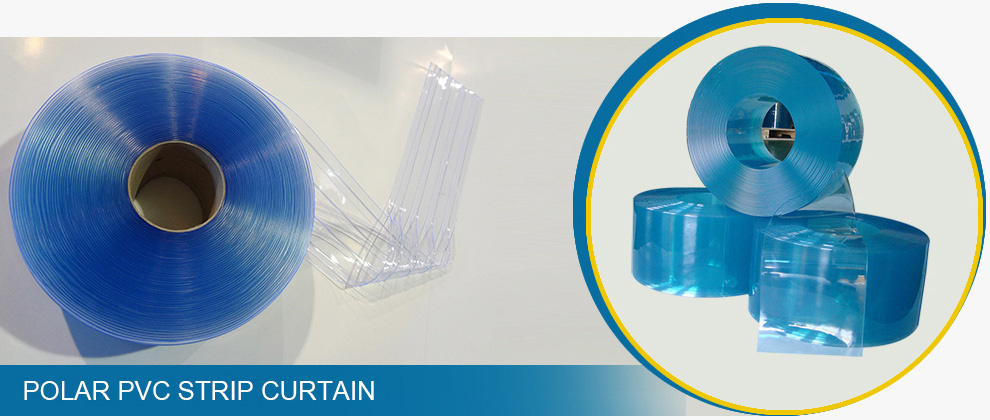

Polar PVC is recommended for many applications but mainly for manufactured strips doors, curtains doors and partitions used in cooling rooms, cold storage, refrigerated trucks, restaurants, dairy chillers and any food service environments.
Features
High thermal insulation
High flexibility and strong mechanical resistance down to -40°C
Energy and cost savings
Very high clarity/transparency
1 size selections:
standard size :
(1) 200mmx2mmx50m (2)300mmx3mmx50m (3) 400mmx4mmx50m
* we can be innovative for your requirements as below:
Thickness range: 1.5mm to 6mm
Width range: 150mm to 400mm
Length rangel: 30m-100m
2 Temperature application range:
(1) -40ºC(Centigrade) to +50ºC(Centigrade) (low Temperature Grade)
-104ºF(fahrenheit)to +122ºF(fahrenheit)(low Temperature Grade)
3 Format:
Roll, strips and panels
Ribbed, reinforced, rounded edges, mat surface
4 Color: blue, ogreen;natural
5.Selling Point: Crystal Transparence+Without Sticky
| CHARACTER | STANDARD | UNITS | STANDARD | REINFORCED | POLAR | SUPER POLAR | ANTI INSECT | ANTI STATIC | HIGH FIRE RETARDANT | HIGH UV RESISTANT | | Light transmittance | ASTM D1003 | % | 85 | 85 | 85 | 85 | < 80 | 85 | 85 | 80 | | Shore A hardness | ENISO 868 | sh A | 80 | 80 | 65 | 62 | 80 | 80 | 80 | 80 | | Tearing resistance | DIN 53515 | N/mm | 50 | 80 | 28 | 25 | 50 | 50 | 65 | 50 | | Tensile stength at break | ASTM D638 ENISO527 | N/m | 16 | 16 | 12 | 10 | 16 | 16 | 20 | 16 | | Elongation at break | % | 340 | 340 | 390 | 420 | 340 | 340 | 280 | 340 | | Residual elong(after break) | % | 68 | 60 | 76 | 80 | 68 | 68 | 60 | 68 | | Thermal conductivity | ASTM C177 | W/m.k | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | | Cold bend brittle temp | ISO 8570 | C | -35 | -35 | -40 | -65 | -35 | -35 | -35 | -20 | | Min. usage temp | EN 1876 | C | -15 | -15 | -25 | -60 | -15 | -15 | 0 | -15 | | Max. usage temp | C | 50 | 50 | 30 | 15 | 50 | 50 | 50 | 50 | | Vicat softening temp | ENISO 306 | C | 50 | 50 | 48 | 46 | 50 | 50 | 50 | 50 | | Specific heat capacity | ISO 11357 | kj/kg.k | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | | Sound reduction | DIN 52210 | db | >35 | >35 | >35 | >35 | >35 | >35 | >35 | >35 | | Fire retardance | NF P92-507 AS/NZS3837 DIN 4102 | Grade | Grp4 B2 | Grp4 B2 | - | - | Grp4 B2 | Grp4 B2 | M2 Grp3 | Grp4 B2 |
|

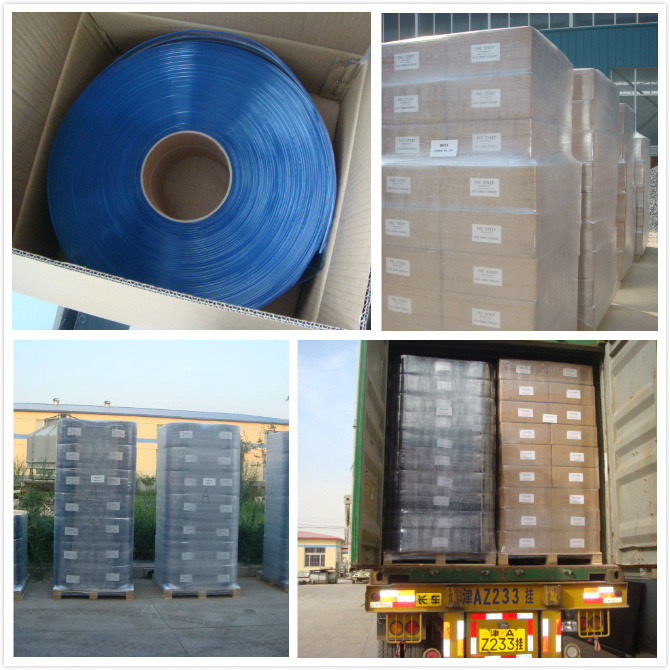

Packaging & DeliveryPackaging Details:
Shrink film for each roll,then be piled on the pallet
Delivery Detail:
within 20 days after recived remitance

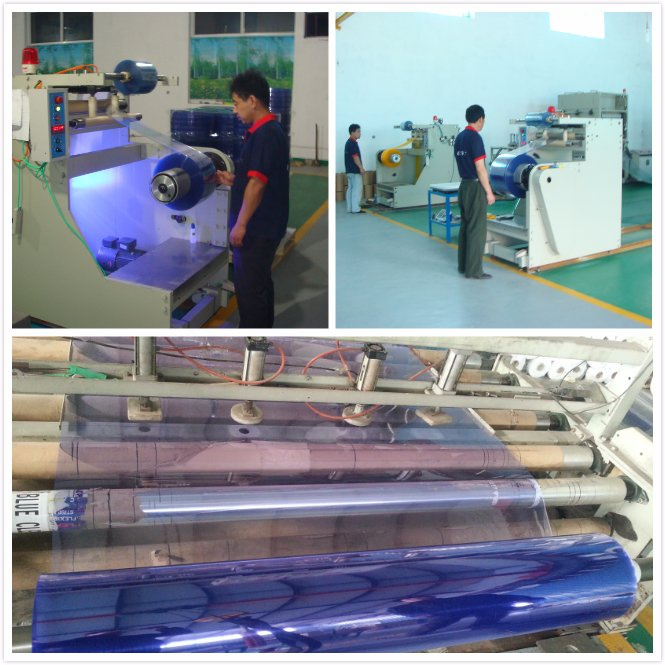

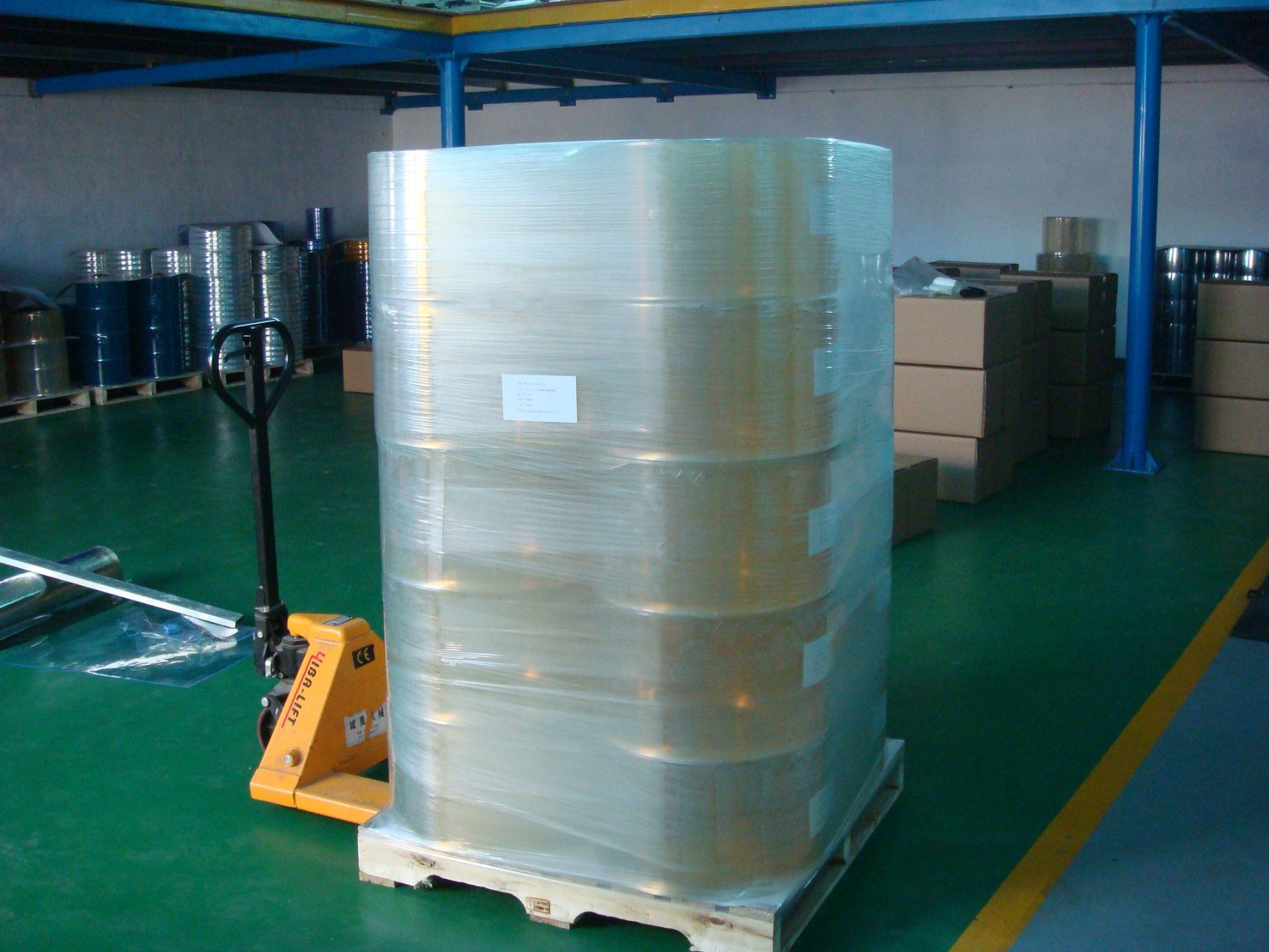

Workshop & warehouse
why choice us?1.We are a large-scale manufacturer in China.
2.More than 20 years experience of producing and trading.
3.Professional sales team.
4.Annual output above 10000 tons.
5.Quality oriented based on strict quality control.
6.Our products already passed SGS certificate, European REACH test, and can meet the EN71-3 standard.
7.Our products are well received by wordwide include Amercian & Eruopean markets.
FAQQ1: Are you manufacturer or trading company?
A:Yes, we are a manufacturer. We specialize in producing Soft pvc strip curtain and pvc sheet. We could provide you competitive price and good quality products.
Q2: What is your payment term?
A: For small amount, Telegraphic Transfer 100% in advance is convenient . For large amount, 30% prepaid as deposit, 70% balance paid before delivery.
Q3: What about delivery time?
A: 3-5 days for samples. For regular order, it's about 20 days after receiving your payment.
Q4: What are the benifits of using PVC strip curtain?
A: 1.Increase energy savings
2.Streamline workflow
3.Manage environments
4.Improve employee and customer comfort
5.Separate temperatures
Q5: What kind of doors does it suitable for?
A: Suitable for all environments. From cold storage to personnel doors and from air curtains to traffic doors, Some of the more common door types are:
1.Warehouse Strip Doors
2.Restaurant Swinging Doors
3.Industrial Curtains
4.Overhead Doors
5.Partitions
6.Cold Storage Doors
7.Air Curtains/Air Doors
Hebei Brother Hao Plastics products Co., Ltd. is a large-scale manufacturerspecialized on flexible transparent PVC strip and PVC sheets etc which established in 1993. Our company located in Dacheng County Area, Hebei Province.
After more than 20 years development, Hebei Brother Hao's team developed into a notable supplier of PVC extruding solution with full chains from Research, Production and Sales. Nowadays, our team's fixed assets capital is more than 8 million US dollars, our factory area is more than 20000, equips with 15 PVC extruding lines, especially 5 lines utilize the most advanced extruding technique, we can produce PVC strip curtain and flexible PVC sheet which are derived from oiling and sticky problems caused by traditional extruding technique, meanwhile we have made an astonishing achievement on PVC rolls' transparency problem, now our PVC rolls have been awarded as"crystal ball"in PVC extruding field.
Based on strict quality control and environmental compliance, Brother Hao's products have been well received by worldwide customers. Our marketing scope including China Mainland, Asia-Pacific Region, Europe, Middle East Asia and Africa, our distributors located more than 100 countries and regions.
From the first day of foundation, our company insists of "Honesty is first" as our company's policy of developing and operating. We sincerely welcome all customers from any regions and countries to contact with us or visit our company, based on mutual benefit we hope to build and maintain close relationship with all of you.
