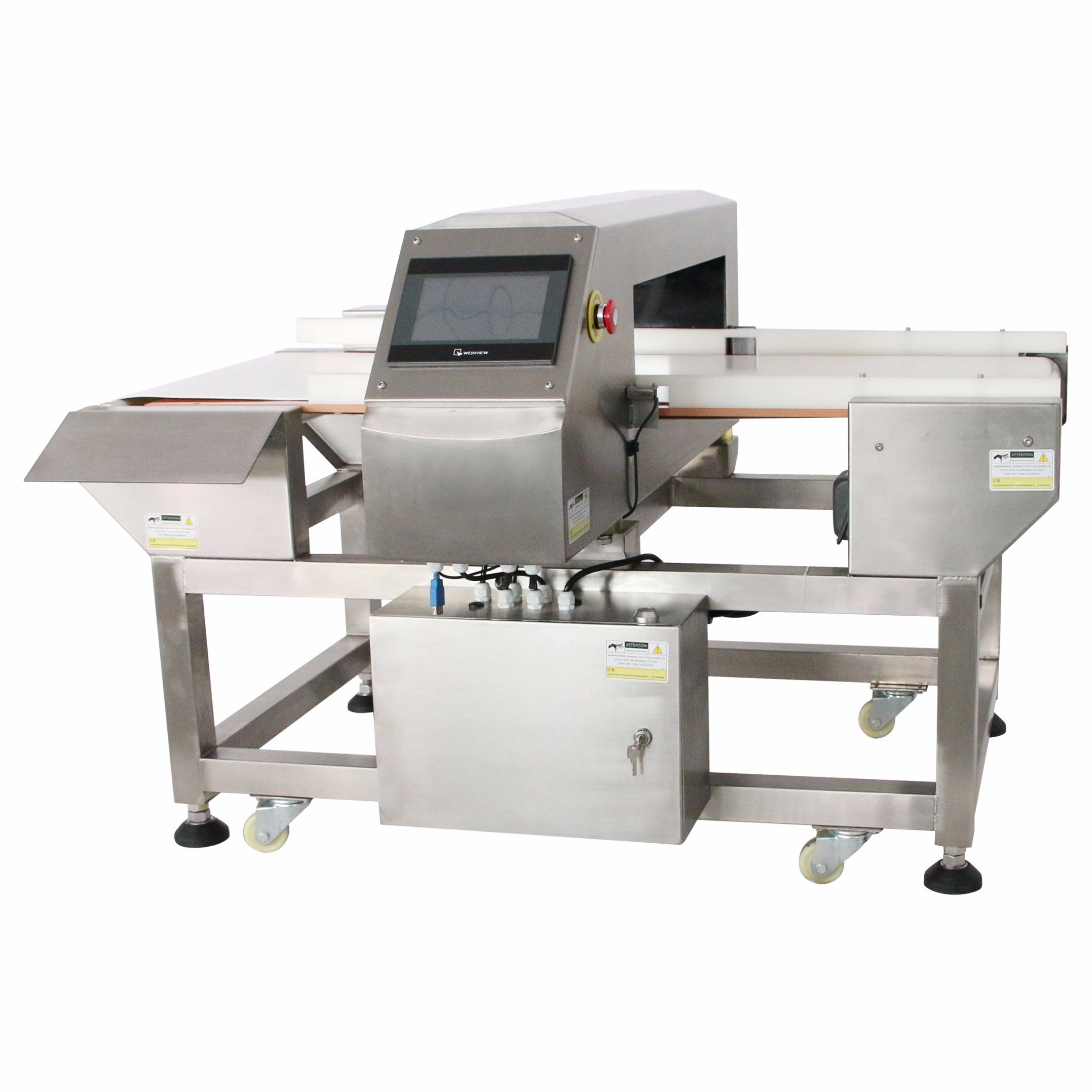

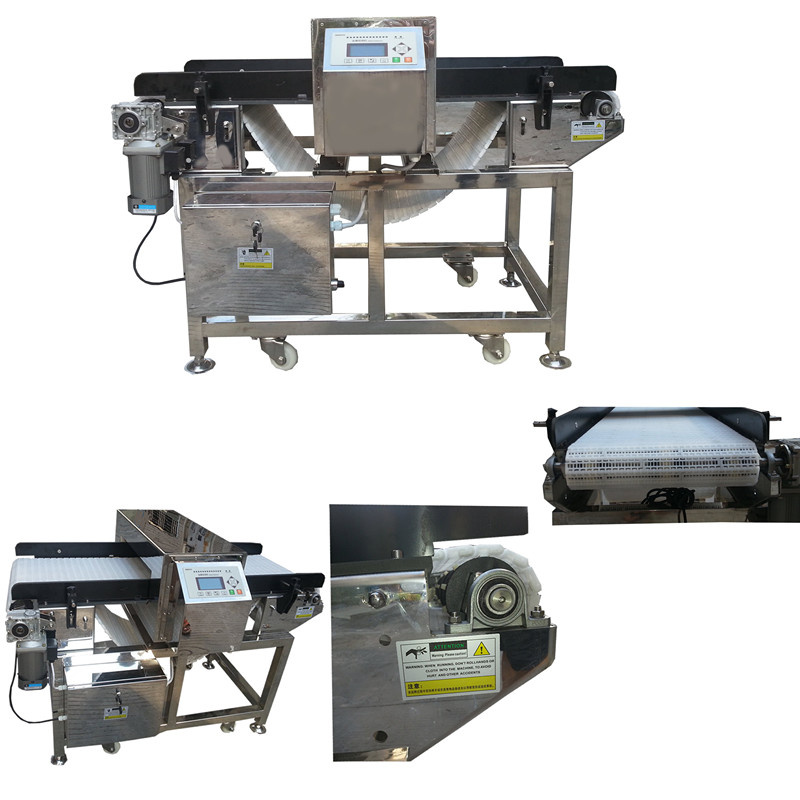

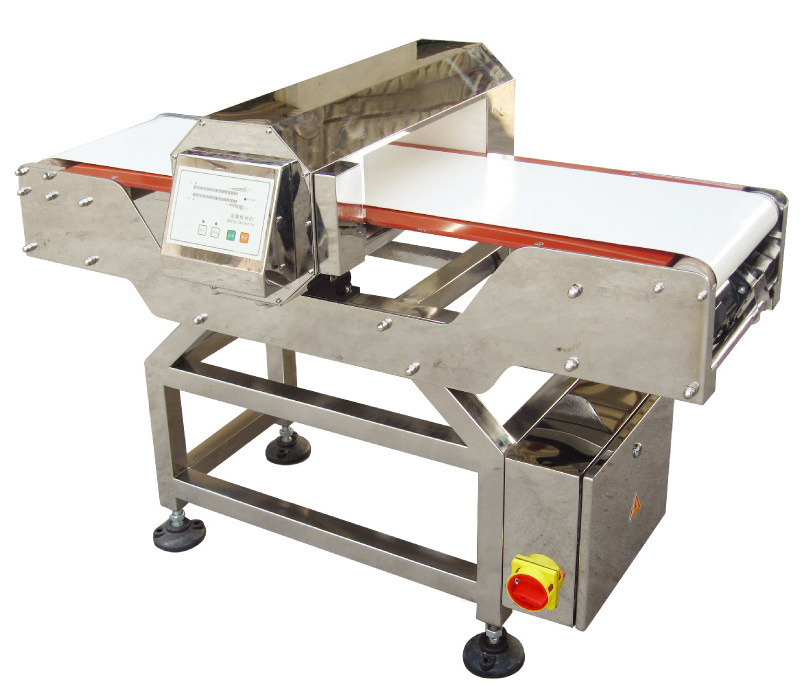

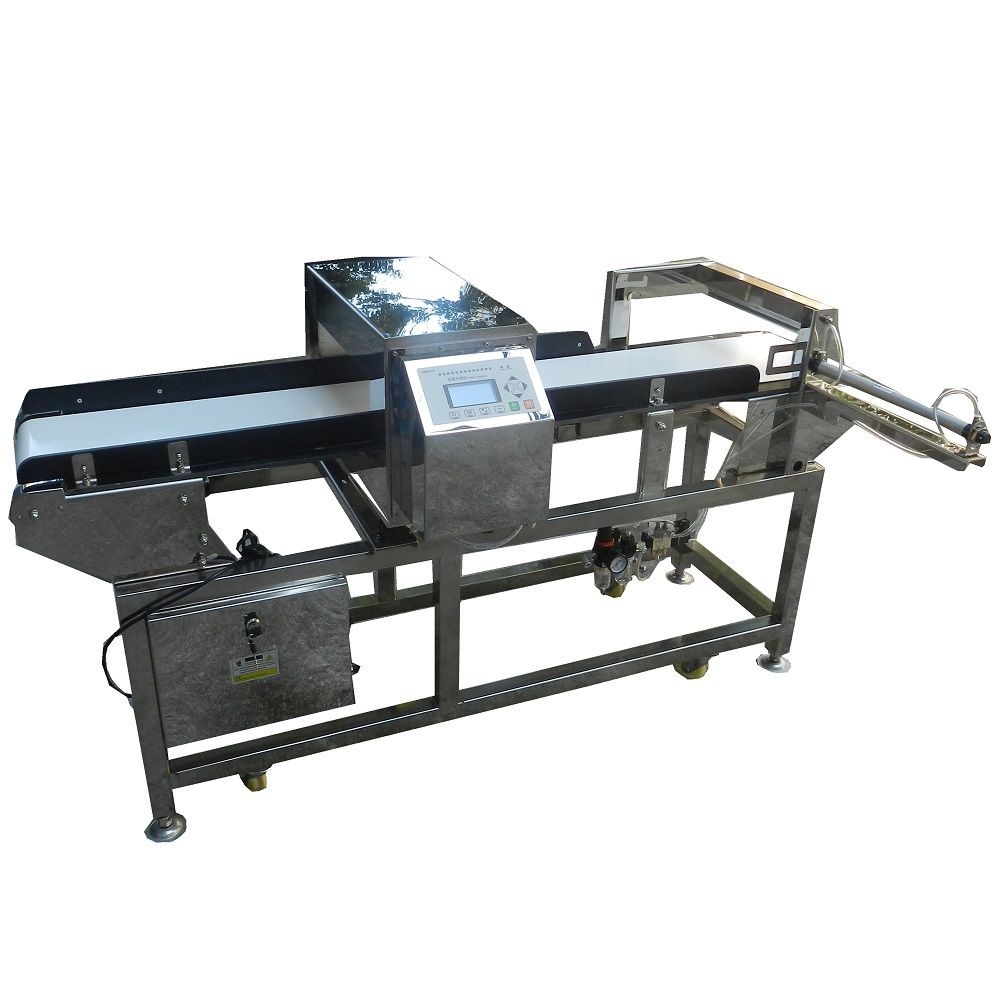

Food Packing Production Line Processing Metal Detector
| Price: |
US $ 2800-3200/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
Product Specifications
| Prod Model: |
VDF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Food Metal Detect |
| Tunnel Size: |
According to Customer Need Customized |
| Conveyor Belt: |
FDA Standard |
| Load Ability: |
25kg |
| Conveyor Speed: |
Various Speed |
| Belt Height From Earth: |
65cm |
| Reject System: |
Optional |
Product Description
Food packing production line processing metal detector
Mechanism exported from Germany, Dual-channel metal detection system.Coil with a rectangular aperture (no points).
Control system:ADLINE microprocessor controller.
Conveyors:Joint-body PU (polyurethane) Conveyor.
Combined with two-way signal detection circuit technology, liquid crystal display operations in English and visualization.
Has the adjustment function of products effect, such as moist products, products including sugar or salt, they all can make the machine has the signal of metal, which is actually has no metal, so it gets wrong information from the products and affect the detection result.So use this machine with this function can reduce the products' effect to get better detection result.
With memory and learning function, can store 12 kinds of product testing parameters, detecting a wide range of materials.
Completed by the digital signal processing circuit can detect all metal objects, adjusting the simple, stable and reliable.
The combination of DSP and microcontroller data items on the test sample and treatment to improve detection.
Special transport mechanism designed the maxi-Mize sensitivity of metal detectors.
Flexible modular design can be customized according to different requirements.
Mirror stainless steel with open transport system.Easy to clean.
Meet the requirements of IFS and HACCP certification.There are a variety of options excluded institutions depending on the application.
With superior shock interference. | Model | VDF series |
| Machine specification | Normal machine | Customized width |
| (mm)Detection Width | 400 | 300 customized |
| (mm)Detection Height | 100 | 120 | 150 | 200 | 240 | 300 | 350 | 400 |
| Detection Sensitivity | Fe(Φmm) | ≥0.6 | ≥0.8 | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 |
| | Non-Fe(Φmm) | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.0 | ≥3.5 | ≥4.0 | ≥4.5 |
| | 304 or 316Sus(Φmm) | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥2.5 | ≥3.5 | ≥4.0 | ≥4.5 |
| Alarm and rejector system | Automatic stop by alarm and sound or push rod or falling drop |
| Machine structure | Full structure takes of stainless 304 |
| Machine size (mm) | L1520mm×W830mm×H1000mm if customized it will according to customized size |
| Machine weight | Around 250KG if customized the weight will different |
| Voltage and power | 220V 50Hz 90W |
| Load ability | 5-25KG conveyor belt running speed :25-30m/min or customized various |
| Height from the earth | 650mm±50mm can customized |
| Note :Normal size machine have stocks. Not normal size machine have to customized |
DongGuan V Finder Electronic Technology Co; Ltd is a professional Large Scale manufacture of all types of Industrial metal detector, Security metal detector. Security X ray machine. Check weigher integrating development and production together. All of our products concentrate and center on detection measurement technology. Our mainly products includes walk through metal detector. Hand held metal detector. Food metal detector. Industrial metal detector. Ground metal detector. Security X-ray baggage luggage scanner. Check weigher. Weight detector. Needle inspection and detector and related products. Our company Located in the manufacture of capital "DongGuan City. Between Guangzhou and HongKong. We enjoy convenient Express. Air and Sea transportation
Our company employee more than 50 workers. Through the efforts of our entire stuff. Our products already widely used in the international market. We have the customers in USA. Australia. Brazil. Educator. Germany. Greece Russia, Nigeria. Saudi Arabic, Ukraine. Bulgaria and other 40 countries. On last and this year our security metal detector and X ray baggage scanner successful finished support 2015 Nigeria President election security Mission. Outstanding finished the GuangDong International Modern furniture Fair and the 2015 Sudirman Cup Security protection.
Our company promise: Reasonable prices,
Short production time
Satisfactory after-sales service
Mutual development, mutual benefits
Our company can supply: Free logo printing
Free model design
Free solution adviser
Full OEM and ODM
We have a improve PMC control. Quality assurance and strictly Quality control Section. From material enter into our basis and before shipping. It will go through a overall strict inspection.
We welcome new and old customers contact us for future business relationships and mutual success!
