Fiber/CO2 Laser Engraving Machine Laser Marking Machine Vct-60rft
| Price: |
US $ 4800-6900/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
Product Specifications
| Prod Model: |
VCT-60RFT |
| Working Size: |
100*100/200*200/300*300mm |
| Laser Power: |
60W CO2 Laser Power |
| Scan Head: |
High Quality Made in China |
| Marking Depth: |
0 ~0.5mm |
Product Description

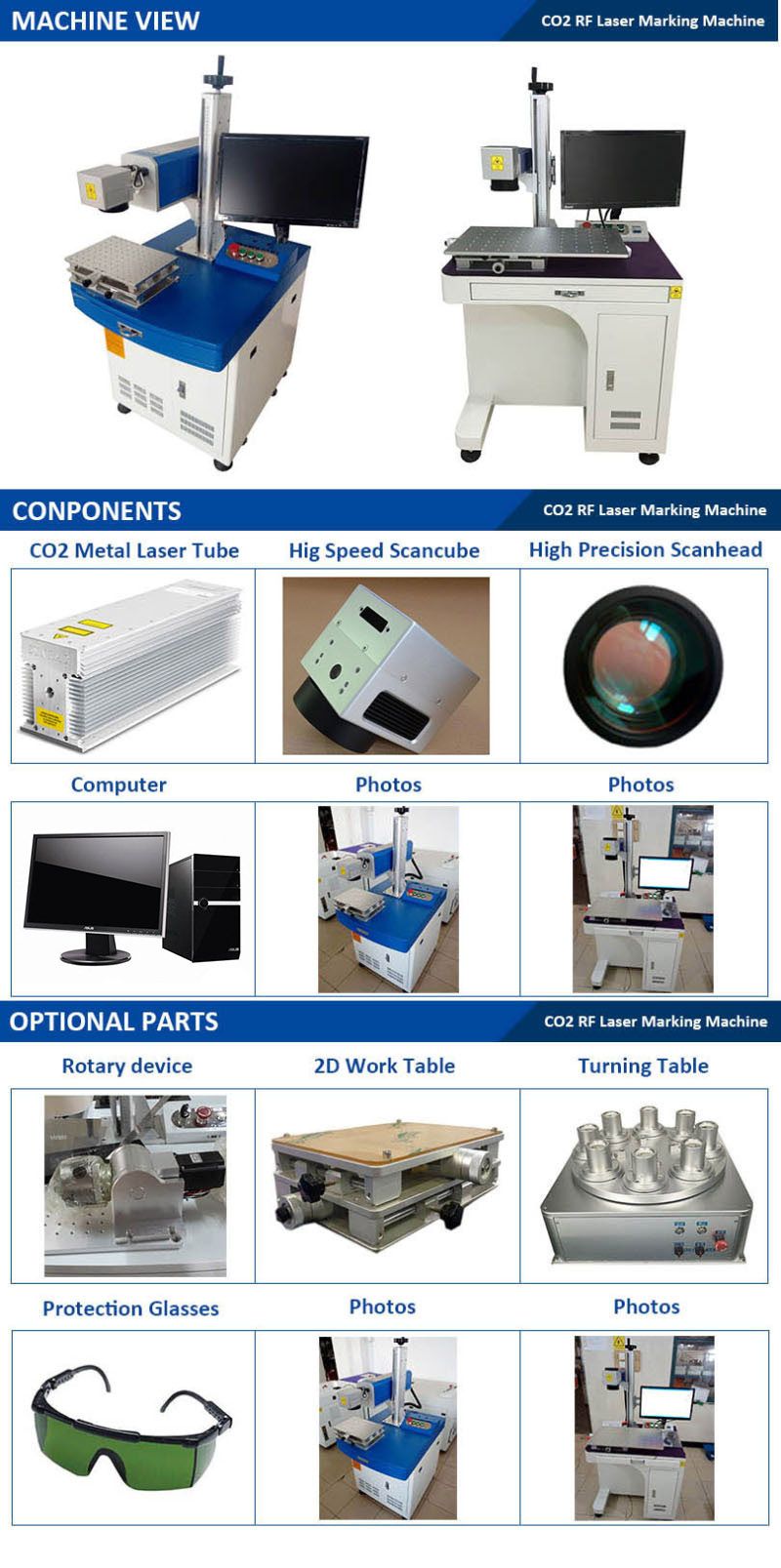

CO2 RF Laser Marking Machine

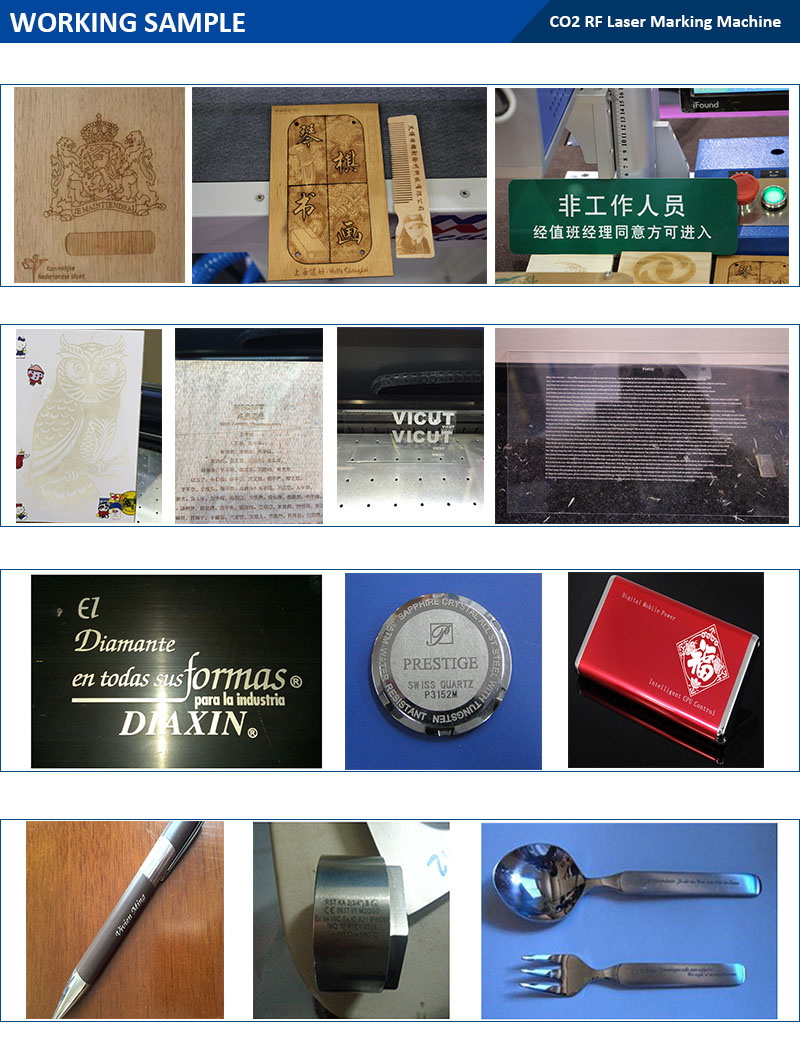

Main Features:1. With RF Metal laser tube, it can be marking on metal and non-metal materials.2. RF metal laser source can be used repeatedly inflated, easy maintenance.3. Bar code, GR code, graphics, text rules and irregular marking serial number, etc.4. Can support the PLT,AI,DXF,BMP,JPG and other file formats5. Can travel marking line, online printing, rotary engraving, etc.6. Completely worktable, the electronic parts are inside of the machine body, nice design and good looking, most popular. (Standard Up-down height: 550mm, can make to 800mm) Applications: 1. Applicable Industries:Mobile phone keypad, plastic translucent keys, electronic components, integrated circuits (IC), electrical, appliances, communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products and other industries. 2. Applicable Materials: Metal: Stainless steel , copper, iron, aluminum, carbon steel ,Non-metal: Plastic, wood, rubber, epoxy resin, ceramic, ABS, PVC, PES, Leather, bamboo, glass, tile, marble, jade, crystal, fabric, molds, hardware tools etc. Technical Parameter:| Model | VCT- RFT |
| Laser Power | 10W/60W/100W/150W Synrad Co2 laser power;
30W Dawei & Synrad Co2 laser power; |
| Laser source Brand | China Dawei & USA Synrad |
| Scan Head | High quality made in china (USA CTI Scan Head is optional) |
| Co2 Laser Source Frequency | 1 - 20 KHz |
| Laser Wavelength | 10.64nm |
| Marking Range | 100*100mm /200*200mm/300*300mm |
| Marking Depth 0 ~0.5mm | 0 ~0.5mm |
| Engraving Line Speed | ≤7000mm/s |
| Repeatability Accuracy | ±0.003mm |
| Beam Quality | M2:<1.2 |
| Marking Format | Graphics, Text, Bar Codes, Two-dimensional Code, Automatically Marking the Date, Batch number, Serial number, Frequency, etc. |
| Graphic Format Supported | BMP, JPG, GIF, TGA, PNG, TIF, AI, DXF, DST, PLT, etc. |
| Working Voltage | 220V±10%/50Hz/4A |
| Unit Power | <0.7kw-5kw |
| Working Environment | Clean and Dust Free or Dust less. Temperature: 15-35ºC |
| Working Condition: Humidity | 5%-75%,Free of Condensed Water |
| Laser Module Life | >45000 hours |
CNC Engraving and Cutting Solution Provider
WILLIAM CNC is a Chinese manufacturer of CNC router, Laser marking machine, label cutter, flatbed cutter, and cutting plotter, having its own manufacturing base and official license for export & import business. Our brand (VICUT) focuses on overseas market, to provide the customer CNC machinery with an affordable solution without sacrificing options or function.
With our CNC router or laser marker, you can cut, carve, or mark on many kinds of materials, such as wood, acrylic, metal, stone, foam, glass, plywood, MDF, PVC, ABS, etc. With our flatbed cutter, label cutter or cutting plotter, you can make digital cut on vinyl adhesive, reflective film, craft paper, sandblast membrane, stickers, cardboard, plastic board, rubber sheet, marking film, PET, PP, PVC, PC, wall paper, coated paper, glossy paper, paper jam, etc.
Remember that each solution can be customized for your particular needs. So no matter what you cut, engrave, or mark, we can configure a machine to suit your applications and budget. We also welcome overseas agents to join the growing families of VICUT.
Market: Now the market is mainly distributed in North America, South America, Europe, Oceania, Middle East, Southeast Asia, South Asia and West Asia. We have established cooperative relationship with hundreds of clients in nearly 30 countries. We are actively looking for new partners to explore the new market, to achieve win-win. We prefer to provide valuable product, service and solution for more end users. We appreciate you join us, to be partner in business, to be friend in life, to be one family forever.
Product: We produce CNC engraving and cutting machinery, such as CNC router, laser marking machine, label cutter, flatbed cutter, cutting plotter. We offer customized service according to your special requirement, such as, shape, dimension, color, specification and structure design, etc. OEM is available.
Team: We have two workshops in Hefei city, Anhui province. 200 employees in all, 50 percent workers have over 5 years manufacturing experience. More than 20 experienced engineers and designers in R&D department focus on improving and updating products, to meet with market. More than 20 sales people have excellent skills both in technology and international business service. All the service engineers have experience in providing technology service in overseas market. Support remote training and door-to-door service. Help is always just one call or email, and then we can provide a suitable solution promptly by analyzing and estimating the problem.
Quality Assurance: Strict whole process quality control and management during procurement, manufacturing, packing, and shipping. Cooperate with top suppliers of CNC spare parts in the world, such as Italy HSD, Japan Panasonic, Taiwan Syntec, Taiwan PMI, TBI, France Schneider, Dragoncut software, etc.
Transportation: Welcome to visit our company. By fast train, it takes about three hours from Shanghai or Qingdao, two hours from Wuhan, one hour from Nanjing. By plane, needs less than 2 hours from Beijing or Guangzhou. Any port in China can be used for shipment, and Shanghai or Nanjing port is more closed to our factory.
