Product Specifications
| Prod Model: |
FD-3D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Ultrasound Frequency: |
2MHz |
| Ultrasound Intensity: |
<10MW/Cm2 |
| Fhr Resolution: |
1bpm |
Product Description

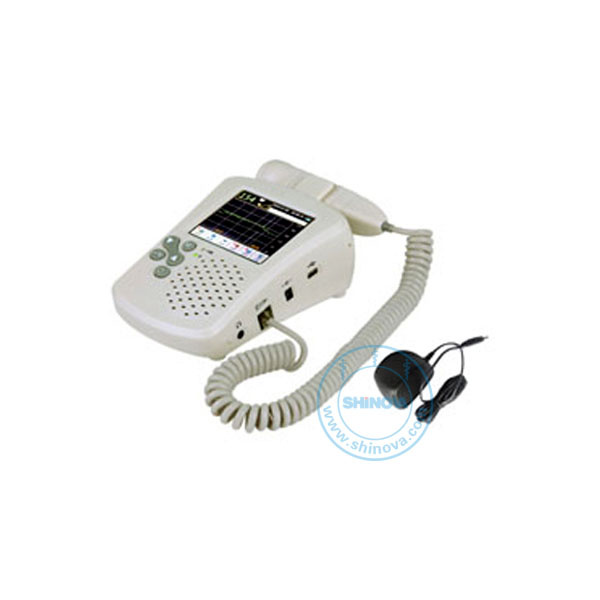

Fetal Doppler(FD-3D)
Model:FD-3D
Introduction :
1. Usage
FD-3D ultrasonic fetal doppler meets the fetus daily check and routine examination at home, clinic,community and hospital.
2. Features
Easy and convenient operation
High-fidelity, crystal clear sound
Earphone and speaker are feasible
High sensitivity water-proof probe
Low ultrasound dosage
Display with backlight LCD
Unique ergonomic design
USB functions to transmit data to computer
Multiple work modes
3. Technical Specification
Ultrasound frequency: 2MHz
Ultrasound intensity: <10mW/cm2
Power supply: DC Ni-Mh rechargeable battery
AC 220/110V, 50/60Hz
Dimension: 135mm×100mm×55mm
Display: 65mm×50mm LCD display
FHR Measuring range: 50~240bpm
FHR resolution: 1bpm
FHR accuracy: ±1bpm
Power consumption: <2W
Weight: 650g
4. Configuration
Main body
2MHz probe
Ni-Mh battery
Adaptor
5. Option
3MHz water-proof probe
5MHz water-proof probe
8MHz water-proof probe
Carry bag
Trolley
Earphone
6. FD-3 Series Difference Table
| Functions | FD-3D | FD-3C | FD-3B | FD-3G |
| Doppler type | Continuous | Continuous | Continuous | Continuous |
| Display | B/W | Colour | B/W | Colour |
| Backlight | Yes | Yes | Yes | Yes |
| Build-in speaker | Yes | Yes | Yes | Yes |
| Auto power off | Yes | Yes | Yes | Yes |
| Alkalinity battery | No | No | Yes | Yes |
| Ni-Mh battery | Yes | Yes | No | No |
| Battery indicator | Yes | Yes | Yes | Yes |
| FHR curve | No | Yes | No | Yes |
| Probe detect | Yes | Yes | Yes | Yes |
| Various work modes | Yes | Yes | Yes | Yes |
| Various display modes | No | Yes | No | Yes |
