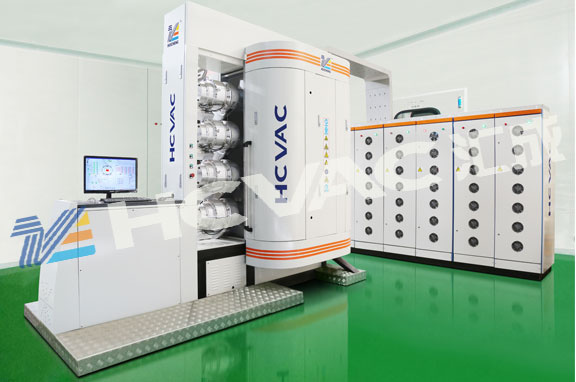

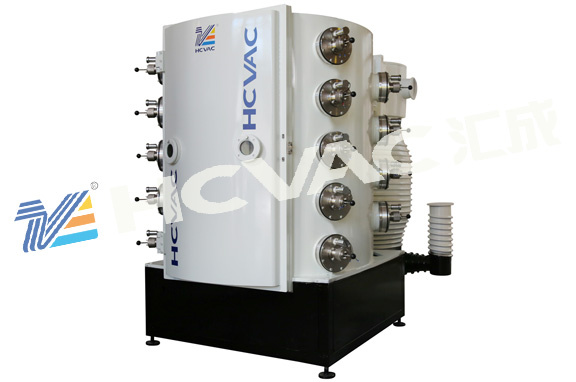

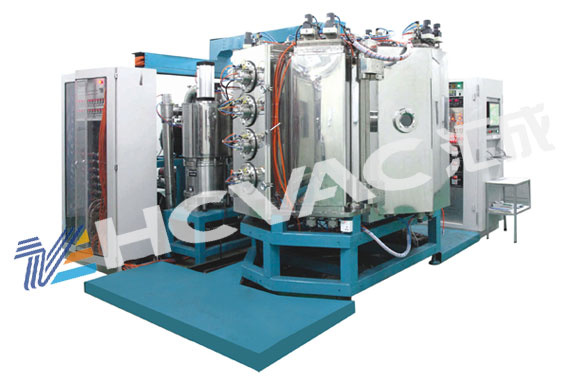

Faucet Bathroom Fitting Furniture Cathodic Arc PVD Vacuum Coating Machine
| Price: |
US $ 8set |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Money Gram |
Product Specifications
| Prod Model: |
HCCA-1618, HCCA-1215 |
| Type 1: |
Cathodic Arc Vacuum Coating Machine |
| Name: |
Faucet Furniture PVD Coating Machine |
| Structure: |
Vertical, Single Door |
| Coating Film: |
Tin, Tic, Ticn, Tialn, Crn, Cu, Au etc. |

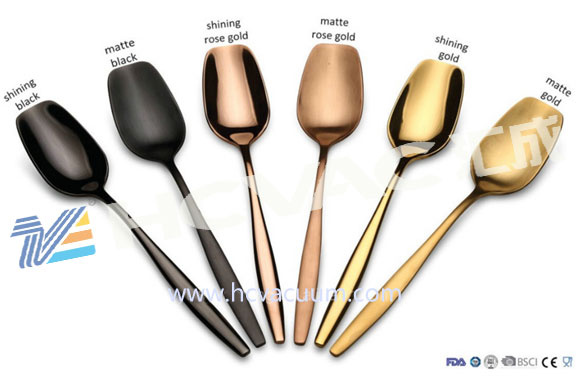

| Coating Color: |
Gold, Rosegold, Silver, Black, Blue, Ect |
| Operating System: |
PLC Touching Screen Automatic Control |
| Service: |
Installment, Training, After Sale Service |
| Coating Material: |
Stainless Steel, Metal Alloy, Ceramic, Glass etc. |
| Coating Technology: |
Arc Ion Coating, Plasma Coating |
| Brand: |
Hcvac, Dongguan, China |
| Coating: |
Vacuum Coating |
| Type: |
Arc PVD Coating Machine |
| Substrate: |
Arc PVD Coating Machine |
Product Description

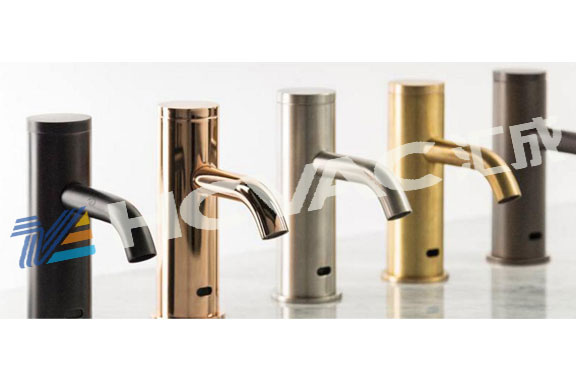

Faucet Bathroom fitting furniture Cathodic Arc PVD Vacuum Coating Machine The machine is mainly design for sanitary ware/bathroom fitting parts. It's equipped with several big size electrical arc evaporation sources and magnetron sputtering coating system, to deposit high performance metal decorative film on brass, zinc alloy, stainless steel, plastic and other metal parts surface. It can get all types of metal color series on substrate. The coating film includes TiN, Zr,T iCN, ZrCN, CrN, CrCN, brass, bronze, chrome etc. Color series includes AF, SN, BN, VF, BV, G, BX, TB, AF, SN, 96CB, CB, TXB, VS, S, BS, BRZ, BGD, PGD and so on. It can get different colors by adjusting coating technics. It is largely used in the sanitary ware/ Kitchen ware field. Arc evaporation
One form of physical vapour deposition (PVD coating) is arc evaporation.
Targets
The metal to be evaporated is placed as solid block (target) against the inside of a vacuum chamber. A glow discharge is ignited and runs on the target, leaving a footprint. Small spots of a few µ M diameter target material are evaporated. The movement of the arc can be guided by magnets.
Plasma coating
The evaporated, ionized material is used as plasma coating on a product which rotates inside the vacuum chamber. Arc coatings are e. G. Used as tool coating and component coating.
Coating film
This machine can coat TiN, AlTiN, AlCrN, TiSiN, TiCN, CrCN and CrN coating etc. Benefits of PVD
Increase life span of the PVD coated products
Corrosion resistance
Chemical resistance
Wear resistance
Friction resistance
Superior Decorative finish
Uniform coating
Low maintenance cost
Environment friendly
Will not tarnish / fade
Re coating possible at a high quality level
Characteristic: The principle of the electric arc is intergrating cold cathode arc discharge self-sustained light unite pulse technique and magnetron sputtering technology, thinning the particles to improve the properties of the film. It can coat on the surface of the metal as well as nonmetal.
HCVAC manufactures and supplies all kinds of PVD vacuum coating machines. Now it is a market leader in the high-vacuum treatment field with customers from all around the world. Huicheng produces a complete range of machinery, offering different types of processes: High vacuum evaporation, multi-arc, DC sputtering, MF magnetron sputtering, continuous magnetron sputtering line etc.
Applied industries:
Surface vacuum coating for watch&clock, jewelries, tools, plastic, glass, crystal, ceramic stainless steel sheet etc.
Easy to implement

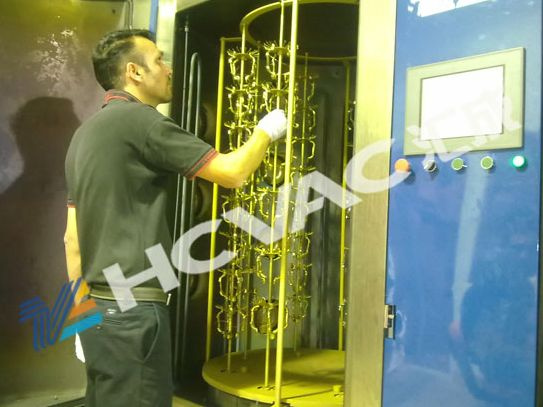

To many people unfamiliar with the process, PVD coating technology seems complicated. However, with the right investments and a good support, it is easier than expected. HCVAC has developed a turnkey coating process that makes a PVD coating centre easy to implement. A complete coating process consists of several steps: Stripping (depending on the part's history); Pre-treatment; Quality control; Cleaning & drying; Fixturing & visual inspection; PVD coating; Quality control & thickness measurement and post-treatment (depending on the application). These steps are all available from one partner: HCVAC Technology, including mature technics and coatings.
HCVAC can help you to enter the PVD coating easily by our vacuum coating machine and full range service. We will provide with most suitable technology according to your requirements.
We will make the special coating solution for each customer; Combine the full set production technics to meet your requirements, to ensure high efficiency of production.
Contact: Lillian Yang
Mobile: 0086-13825720037
Please send us your detailed requirements. We will provide the best solution for you!
Technical details:
Mode
Dimension |
LH-800 |
LH-1250 |
LH-1416 |
LH-1618 |
800*1000mm |
1200*1500mm |
1400*1600mm |
1600*1800mm |
Coating mode and main confirguration | Eight multi-arc targets | Twelve multi-arc targets | Fourteen
multi-arc targets | Twenty
multi-arc targets |
Power source |
Electric-arc power, Filament power, Pulsed bias power supply |
Process gas control |
Mass flowmeter + Electromagnetic ceramic valve |
Vacuum chamber structure | Vertical side opening door, pump system postposition, double water cooling |
Vacuum system |
Molecule pump +Roots pump +Mechanical pump(5.0*10 -5 Pa)
Diffusion pump +Roots pump +Mechanical pump(5.0*10 -4 Pa) |
Workpiece baking temperature |
Normal temperature to 350 centi-degree PID control, radiation heating. |
Workpiece motion mode |
Public rotation Frequency control: 0-20 rotation per minute |
Measure mode |
Number display composite vacuum gauge: from atmosphere to 1.0*10 -5 Pa |
Control mode |
Manual/Automatic/PC/PLC + HMI/PC four choice of control mode |
Remark |
We can design the dimension of the equipment according to customer's special technique requirement. |

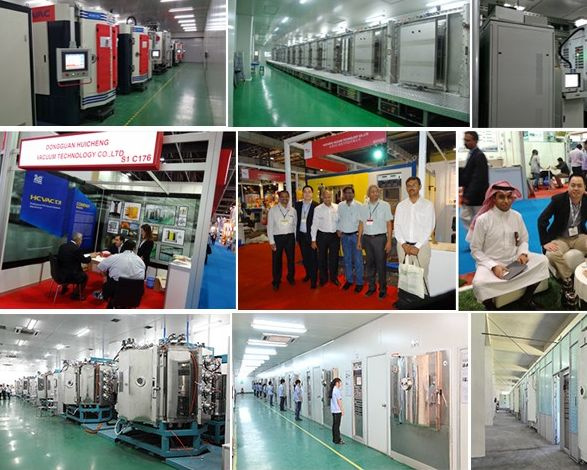

DongGuan HuiCheng Vacuum Technology Co., Ltd is a high-tech enterprise specialized in the R&D, Production and Marketing of various kinds of the vacuum equipments. Our company aggregates many excellent technicians in the vacuum industry, including engineers with the senior and middle technique titles. We also invite the senior experts and experienced technicians to be responsible for the development and design of the new products, insure the high technology and quality of the vacuum equipment. Our products are popular with both the domestic and overseas clients, and have a high reputation in the vacuum industry.
