| Price: | Negotiable/Piece |
|---|---|
| Min Order: | 10/Piece |
| Pay Type: | T/T,Paypal |
| Prod Model: | CMBO-PV12/1 |
|---|---|
| Operation: | Energy-storage Type |
| Installation: | Fixed |
| Structure: | MCCB |
| Poles Number: | 4 |
| Certification: | ISO9001-2000 |
| Breaking Capacity: | Solar Panel Power |
Factory OEM Support High Reliability IP65 Waterproof PV Solar System DC Combiner Box
Please kindly note for the combiner box we can support OEM order,if you have any inquiry for this product please feel free to send your inquiry to us with all the details,then we could discuss together .
We can do the below model for you :
8 strings/10 strings/12 strings/14 strings/16 strings
♦High reliability
With DC FUSE
With DC Surge Protection Device
With DC circuit breaker or DC load isolation switch.
♦Strong adaptability
IP65 desigh,waterproof,anti dust and anti ularaviolet.
Strict test for high and low temperature,used widely/
The simple installation, the simplified system wiring, the convenient wiring.
The box body is made of cold rolled steel and other metal materials.
♦Flexible configuration
Used for single crystal silicon solar modules, polycrystalline silicon solar modules, thin film solar modules. Current rating of the photovoltaic fuse, cicuit breaker, load isolation switch is modified.

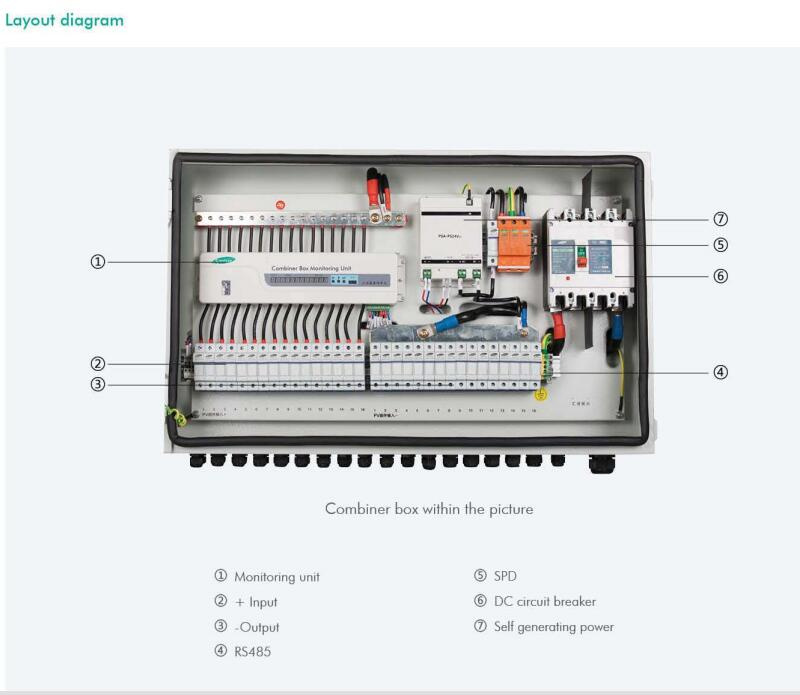

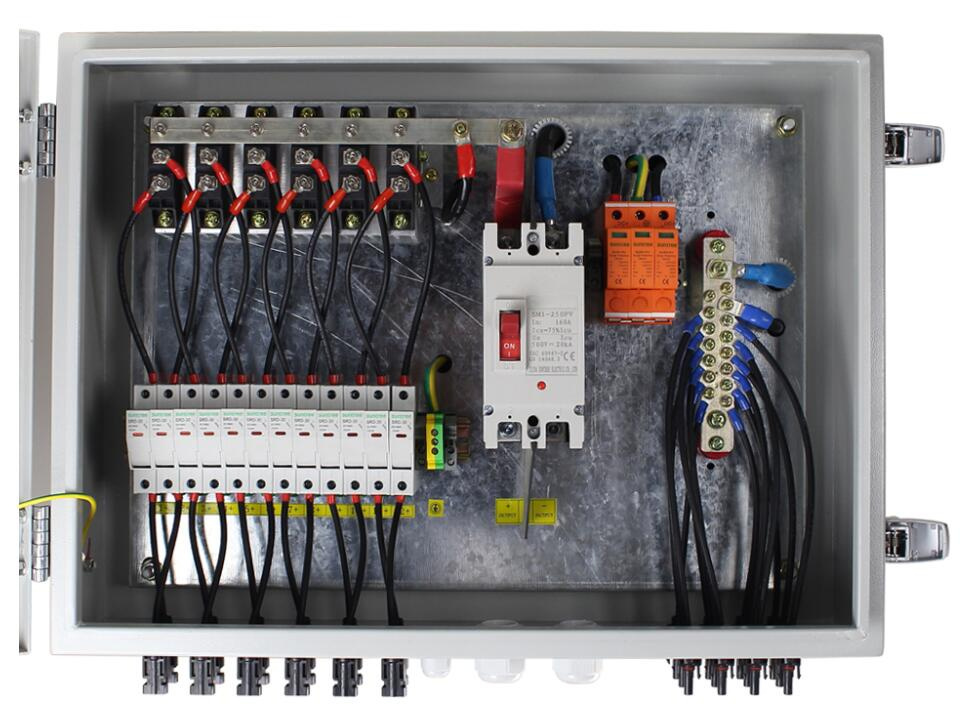

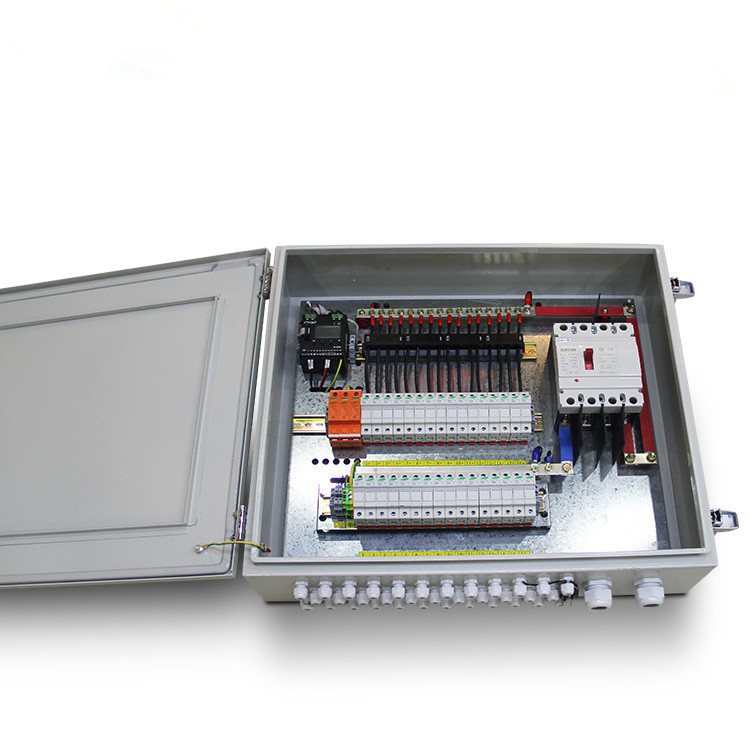

Detail Shows
Parameters
| Name | CMBO-PV12/1 | |
| Electric parameter | ||
| System maximum dc voltage | 1000 | |
| Maximum input current for each string | 30A | |
| Maximum input strings | 162 | |
| Maximum output switch current | 160A | |
| Number of inverter MPPT | N | |
| Number of Output strings | 1 | |
| Lightning protection | ||
| Category of test | 5 grade protection | |
| Nominal discharge current | 20kA | |
| Maximum discharge current | 40kA | |
| Voltage protection level | 3.8kV | |
| Maximum continuous operating | 1050V | |
| voltage Uc | ||
| Poles | 4P | |
| Structure characteristic | Plug-push module | |
Company Information
LEADER TECHNOLOGY(SHENZHEN)CO.,LIMITED is a new energy enterprise,located in SHENZHEN, China,specializing in R&D,manufacturing and marketing solar connectors,PV junction boxes,solar box and PV assembles etc.,with an integrated utilization from solar modules,solar energy appliance to on/off-grid solar power generation systems, and by the products R&D,mold design,production,sales through-train service.With advanced technology,our products have been authorized by TUV Rhineland,UL,CE successfully.
LEADER Company adheres to self-R&D,strict detection standards and perfect detection system, modernization management approaches and excellent talent teams, hold the belief of "survive for excellence,development for innovation",insist on being professional,large-scale brand.
Packing & shipping
1 When you place an order ,please choose method and pay for the order ,we will deliver goods as soon as possible .
2 Please notice that buyers are responsible for all ADDITIONAL customs fees (included the shipping cost) , brokerage fees ,duties and taxes for importation into your country ,these additional fees may delay the time of delivery . and we will not refund shipping charges for refused shipment .
3 We will track the goods until you recevie goods .
Our service
We will give you the best service
1 Reply inquiry within 24 hours
2 Answer your detail information immedately .
3 Freight farwarder faster ,safe and convenient
4 Please feel free to contact me if you are intersted some products ,we will provide favorable price to you .
FAQ
Q: Is the sample available and free ?
A :Sample is availble but not free we will provide the favorable price.And the cost will be refund after further order received.
Q: Do you accept customized order or drop ship?
A: Yes we do.
Q: Do you have overseas warehouse?
A: Yes we have opened overseas warehouse in Germany and will open few other warehouse in some country.
Q: What the delivery time ?
A : 15 days after confirming payment,but sometimes delivery date will be based on order quantity .
Q: How can contact you ?
A : Contact person : Matte Mao
If you have any question ,please feel free to contact me ,so that we could talk more details.Thank you.
For more information please check our website for review.
www.leadergroup-cn.com
