Product Specifications
| Prod Model: |
TZJD-2030L |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engraving Machine Type: |
Laser Engraving Machine |
| Usage: |
Advertising |
| Power: |
High Power |
| Drive Type: |
AC Servo Drive |
| Certification: |
SGS, CE, ISO 9001 |
| Laser Type: |
CO2 |
| Control: |
CNC |
| Current: |
AC |
Product Description

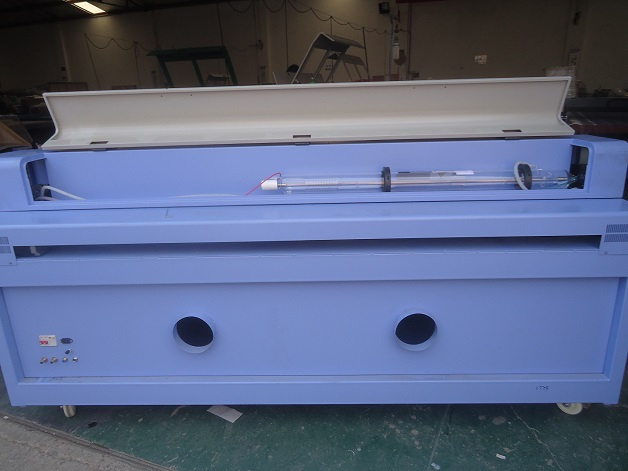

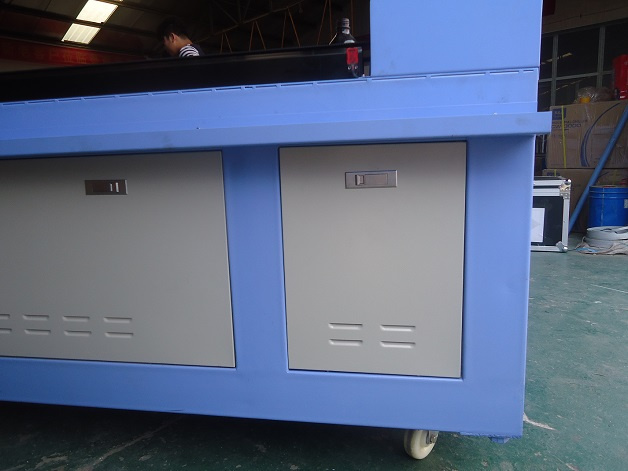

Factory good price Laser Cutting and Engraving machine
| Model | TZJD-2030L |
| Working area | 2000mm*3000mm |
| Laser power | RECI brand, 80w |
| Laser type | CO2 Sealed laser tube , 10.6μm, water-cooled |
| Cooling type | CW5200 Water chiller |
| Engraving speed | 0-75000mm/min |
| Cutting speed | 0-50000mm/min |
| Total power | 2KW/H |
| Laser output control | 0-100% set by software |
| Min. engraving size | Chinese: 1.5mm*1.5mm, English letter: 1.0mm*1.0mm |
| Highest scanning precision | 4000DPI |
| Locating accuracy | ≤+0.01mm |
| Controlling software | DSP control system |
| Graphic format supported | DST PLT BMP DXF DWG AI LAS,etc |
| Compatible software | CORELDRAW,PHOTOSHOP, AUTOCAD,TAJIMA,etc. |
| Color separation | Yes |
| Drive system | High-precision 3-phase stepper motor |
| Auxiliary equipments | Exhaust fan and air exhaust pipe;
red-dot position system;
UP & DOWN working table; Auto-focus device;
one focus lens & three reflection mirrors on the machine;
air compressor system, etc. |
| Power supply | AC110V/AC220V±10%, 50HZ/60HZ |
| Software | LaserWork |
| Working environment | Temperature:0-45ºC, Humidity 5-95%(No condensate water) |
| Packing size | 3.4m*4.03m*1.4m |
| Net weight | 1450KG |
Applicable materials:Mainly used for heavy-duty heavy-thickness marble/granite/stone material. Meantime also widely used for: acrylic, wood planks(light planks,candlenut wood),bamboo ware, double color board, paper, leather, shell, rubber, coconut shell, ox horn, resin animal grease,ABS board, lamp shade, wooden box, artware, rubber, garment, fabric, glass, stone, canvas, plastics, organic glass, furnitures, glass, crystal, ceramic, (all non-metallic materials) etc.
Product features:1. Taiwan HIWIN linear guide and precision gear, matched with the advanced DSP Controller,
also within stepper/servo motor to ensure the working accuracy.

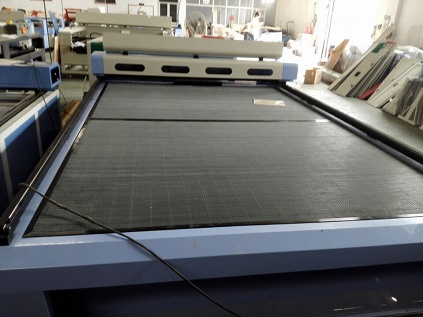

2. This work table was large enough to bear, extra times were all saved.
3. That working table were all stainless steel material, easily operate and never fray.
4. Continuous & rapid curve cutting function; selecting shortest path function.
5. USB Interface, with mass storage device; improve working-speed & working efficiency.
6. LaserWork software compatibility with AutoCAD/Coredraw/Cam/Photoshop/Taijima designing program, output designs directly.
