Product Specifications
| Prod Model: |
TZJD-1610 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
High Power 80W/100W/130W |
| Drive Motor: |
AC Servo Drive |
| Engraving Machine Type: |
Laser Engraving Cutting Machine |
| Control System: |
Ruida |
| Current Voltage: |
AC Single-Phase 220V/50Hz |
| Laser Type: |
Sealed CO2 Laser Tube |
| Usage Range: |
Woodworking Fabric Paper Garment Silver |
| Certifications: |
SGS, Ce, ISO 9001, FDA, BV |
| Working Area: |
1600mm*1000mm |
| Software: |
Laserwork, Lasercut |
Product Description

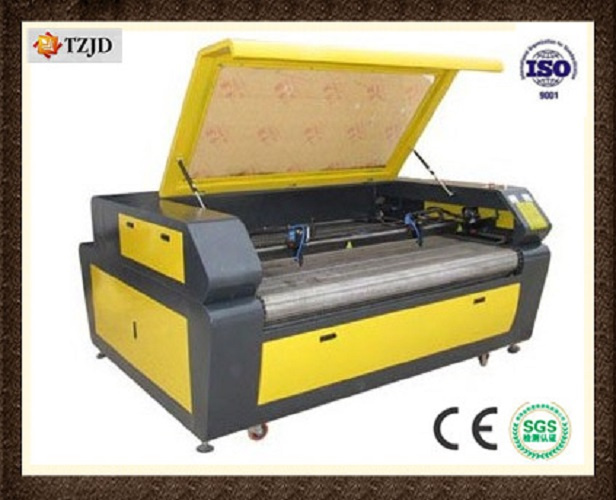

Fabric Garment Leather High speed Laser Machine Cutter TZJD-1610
1. Machine features:
(1) Continuous & rapid curve cutting function; Selecting shortest path function.
(2) This machine for engraving cloth rolls and it adopts the new high-efficiency laser tube, the laser beam is more stable than the traditional type.
(3) The mechanical structure is strong and stable, making the machine to run at high precision.
(4) The electrical ability is stable, the engraving speed is high, and the precision is high.
(5) Advanced DSP control system, professional motion control chip, consecutive high speed curve cutting and the shortest path selection function improve the working efficiency a lot.
(6) LaserCut software compatibility with AutoCAD/Coredraw/Cam/Photoshop/Taijima designing program, output designs directly.
(7) USB Interface, with mass storage device; Improve working-speed & working efficiency.
(8) Taiwan HIWIN linear guide rail & high-speed stepper motor drivers, the engraving/cutting edges were all smoothly enough.
(9) Double heads engraving, improve the working-efficiency.
(10) Use scientific design and high-strength steel frame structure, guarantee the machine from distortion.
2. Applicable industry:
Label processing, Embroidery, advertising, decoration, arts and crafts, electronics, electric appliances, mould industry, packing industry, leather/garment industry, etc.
3. Applicable Materials:
Genuine leather, synthetic leather, artiificial leather, fur coat, Acrylic, wood planks, label, fabric, paper ware, bamboo ware, double color board, paper, leather, shell, coconut shell, ox horn, resin animal grease, ABS board, lamp shade, embroidery, leather, synthetic leather, artificial leather, glass, marble, crystal, nameplate, anti-fake mark, etc
4. Technical parameters:
| Model | TZJD-1610 |
| Working area | 1600mm*1000mm |
| Laser power | 60w/80w/100w |
| Laser type | CO2 Sealed laser tube , 10.6μ m, water-cooled |
| Cooling type | Water-cooling/Water chiller |
| Engraving speed | 0-60000mm/min |
| Cutting speed | 0-50000mm/min |
| Total power | 2KW/H |
| Drive motors | Stepper/Servo(option) |
| Laser output control | 0-100% set by software |
| Min. engraving size | Chinese: 1.5mm*1.5mm, English letter: 1.0mm*1.0mm |
| Highest scanning precision | 4000DPI |
| Locating accuracy | ≤ +0.01mm |
| Controlling software | DSP control system |
| Operating software | LaserCut |
| Graphic format supported | DST PLT BMP DXF DWG AI LAS, etc |
| Compatible software | CORELDRAW, PHOTOSHOP, AUTOCAD, TAJIMA, etc. |
| Color separation | Yes |
| Drive system | High-precision 3-phase stepper motor |
| Auxiliary equipments | Exhaust fan and air exhaust pipe,
red-dot position system,
focus lens & reflection mirrors,
Auto feeding system, etc. |
| Power supply | Ac110v/AC220V± 10%, 50HZ/60HZ |
| Working environment | Temperature: 0-45, Humidity 5-95%(No condensate water) |
| Working table | Honeycomb table/Knife bar |
| Interface | PCI USB |
| Machine available | rotary device, UP & DOWN system, auto-focus device, etc. |
5. Packages: Solid seaworthy wood box package with steel belt.
6. Guarantee and After-sales service:
(1) The quality warranty period is 24 months which counted from the day that the shipping commodity arrived at the port of destination, excluding the physical damage, We will provide you with the fittings for free during the guarantee period. But please kindly note that all users are kindly required to return us the damaged fittings by courier with your charge before we send back the alternative fitting parts. After warranty period, the fittings which you need repaired or changed should be in charge by you, and it will be reasonable charged.
(2) Since it is difficult for our engineer to maintain the machine by face to face, we will create a plenty of online-supports. That is to say, we will give you technical supports by email, MSN/Skype, camera, video, telephone and fax when user meets some problems on installing, operating, adjusting, maintaining, and so on.
(3) When you meet some problems with installing, using or adjusting, but our online-support can not solve it, we can offer Door to Door service. If you need our engineer(s) to assemble or maintain or adjust the machine in your area, you would like to be required to assist us to go through the visa formality, traveling expenses prepaid and accommodation arrangement during the business trip and the service period before they dispatched. And please kindly arrange the translating person for the service engineer during their service period. Otherwise, you also can arrange your engineer to come to visit our factory to get a long-term free technical training.
7. Traning to use:
(1) We will supply you with the operation and installation manual in English version together with the machine, including introduction for the composing of equipment, working principle, common knowledge of computer, controlling principle of electronic devices, daily maintenance measures. Personal demonstration will be supplied for equipment installing, adjusting, operating, programming of computer and common malfunction eliminating measures, etc.
(2) We will supply you with brochures for simple trouble shootings of the machine which can help you deal with the common problems happened unexpectedly. Meanwhile, one set of "Instruction Book", "Operation Manual" and "Training Video Disk" for machine / software will be also sent to you together with the machine that could be easily understood and kindly handled by you and your customer.
8. Company information:
Tengzhou Jianda CNC Machine Co., Ltd specialized in woodworking machine,advertising machine, marble/stone engraving machine, laser engraving cutting machine, metal mould machine, double heads engraving machine,cylinder engraving machine, etc. The company was one of companies that can research & develop the advanced CNC Machines, which have laid the foundation in the domestic market. our machines have already exported to USA, Canada, England, Australia, Russia, India and so on.
9. FAQ:
(1) How long is the delivery time?
For standard machines, it would be 5-8 days; For non-standard machines and customized machines according to client s specific requirements, it would be 8 to 15 days.
(2) How about the payment terms?
T/T, West Union, L/C
(3) Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
(4) If some problems happened to this machine during warranty period, what should I do?
We will supply free parts in machine warranty period if machine have some problem. While we also supply free after-service forever, so any doubts, just let us know, we will give you solutions in 24 hours.
(5) What is the MOQ?
MOQ for our products is 1 set machine, we could send it to your country port if you tell detail information about your country port.
10. Contact information:
Mobile: +86-18615627569
11. Machine accessories:
| Machine Model | TZJD-1610 |
| Number | Name | Quantity | the area of placement |
| 1 | air pump | 1 | the inside of mainframe-box |
| 2 | water pump | 1 | the inside of mainframe-box,for low power laser tube |
| industrial chiller | / | the inside of mainframe-box,for high power laser tube |
| 3 | wind pipe | 1 | the inside of mainframe-box |
| 4 | control line | 1 | the inside of mainframe-box |
| 5 | specification | 1 | CD in the pocket |
| 6 | software | 1 |
| 7 | Controller Card | 1 | the inside of file pocket |
| 8 | softdog | 1 | the inside of file pocket |
| 9 | toolbox | 1 | the inside of mainframe-box |
| 10 | power wire | 1 | the inside of toolbox |
| 11 | cotton stick | 1 | the inside of toolbox |
| 12 | focaling stick | 1 | the inside of toolbox |
| 13 | lozengel allen wrench | 1 | the inside of toolbox |
| 14 | spanner to load and unload lens | 1 | the inside of toolbox |
| 15 | nut of loading card | / | the inside of toolbox |
| 16 | fixed binding wire | | the inside of toolbox |
| optional accessories | limit switch | | the inside of toolbox |
| opto-electrical switch | | the inside of toolbox |
| nut | | the inside of toolbox |
| blank panel | | the inside of toolbox |
| rotary device | | the inside of mainframe-box |
| lens | | the inside of toolbox |
| rotary device | | the inside of mainframe-box |
