Product Specifications
| Prod Model: |
1325 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Ql-1325 |
| Laser Type: |
CO2 Sealed Laser Tube, Water-Cooled |
| Spindle Layout: |
Spindle Underneath |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Manual |
| Controlling Mode: |
CNC |
| Certification: |
CE |
Product Description

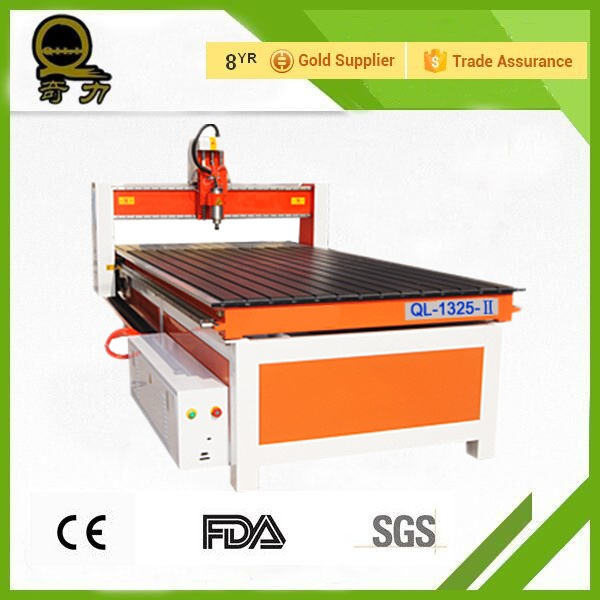

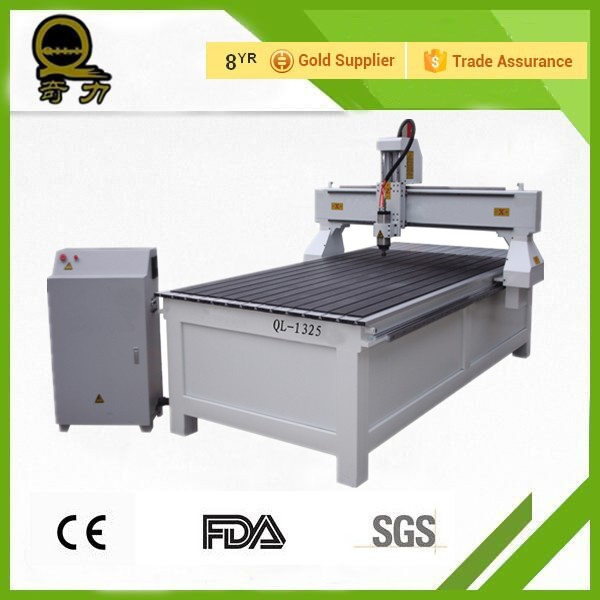

Excellent Quality CNC Wood Carving Machine
Machine features1) The linear guide ensures the precise processing effect, which can make delicate
And complicated designs on acrylic, wood and PVC and so on for the advertisement, handicraft industries etc.
2) Our three unique protection functions, i. E. Anti-interference function, water-protective function and power cut-off function ensure longer working life, safety and effectiveness.
3) Adopting the strip shape platform, which can bear heavier materials such as organic glass, wood and so on.
4) Original Singapore imported lens with molybdenum base, making the equipment produce smaller facula and
Stronger cutting force, greatly improving working efficiency and reducing cost.
5) Exhausting, absorbing and assistant blowing systems solve the problem that troubles the laser equipments
Manufacturing industry for years, extending the life of the laser tube.
6) This machine uses USB port to transmit data, equipped with largecapacity internal memory,
Improving working speed and efficiency greatly.
Machine parametersModel
QL-1325
Working area
1300mm*2500mm
Laser power
80w/100w/150w/180w
Laser type
CO2 sealed laser tube, water-cooled
Engraving speed
0-60000mm/min (0-2362inch/min)
Laser Output
1-100%software setting
Resetting positioning accuracy
≤ ± 0.01mm
Power supply
220V/50HZ, 110V/60HZ
Operating temperature
0 - 45° C
Operating humidity
5 - 95%
Min. Shaping character
English 1.0 x 1.0mm
Graphic format supported
BMP, PLT, DST, DXF, AI
Software supported
CorelDraw, PhotoShop, AutoCAD, TAJIMA
Driving system
3 phases stepper motor
Machine Optional parts
1. Worktable: Honeycomb for soft materials; Up-down for thick materias, knife worktable for hard materials.
2. Red dot: Makes the laser path visible
3. Rotary attachment: For cylinder item like bottles process, and chuck rotary device
4. Air compressor: For materials inflammable
Machine applicable industry
Suitable for industries such as billboards, artistic gifts, crystal ornaments, paper cut engraving,
Bamboo embossment, printing, garments and leather industries, embroidery, interior decoration and
Frame fabrication, advertisement, aviation and navigation, construction model and so on.
Machine applicbale materials
Non metal materials such as double color boards, acrylic, glass, wood planks, paper, leather, rubber,
Marble, granite and tiles
| Technical Data |
| Working Area | 1300mm*2500mm*200mm |
| Table Size | 1480mm*3000mm |
| Max. Speed | > 20m/min |
| Processor | DSP/ Speed 100MHZ |
| Interface | USB |
| Command Code | G Code*. u00*. mmg*. plt |
| Working Software | DSP |
| Power (not including spindle) | 1840w |
| Working Voltage | AC380V/50HZ |
| Spindle Power | 3.0kw |
| Spindle Running Speed | 0-24000rpm |
| Motor | Stepper |
