Product Specifications
Prod Model: |
SM15-16A3 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Glass Size: |
270*270 |
Unit Size: |
286*364*57 |
Child Safety Lock: |
Yes |
Power Cord Length: |
1.5m |
Housing Material: |
Plastic |
Installation For Induction Cooker: |
Countertop |
Operation Mode: |
Pushbutton |
Housing: |
Plastic |
Reservation Function: |
With Reservation Function |
Burner For Induction Cooker: |
Single |
Heating Element: |
Coil |
Color: |
Black |
Certification: |
ETL |
Power: |
1500W |
Product Description

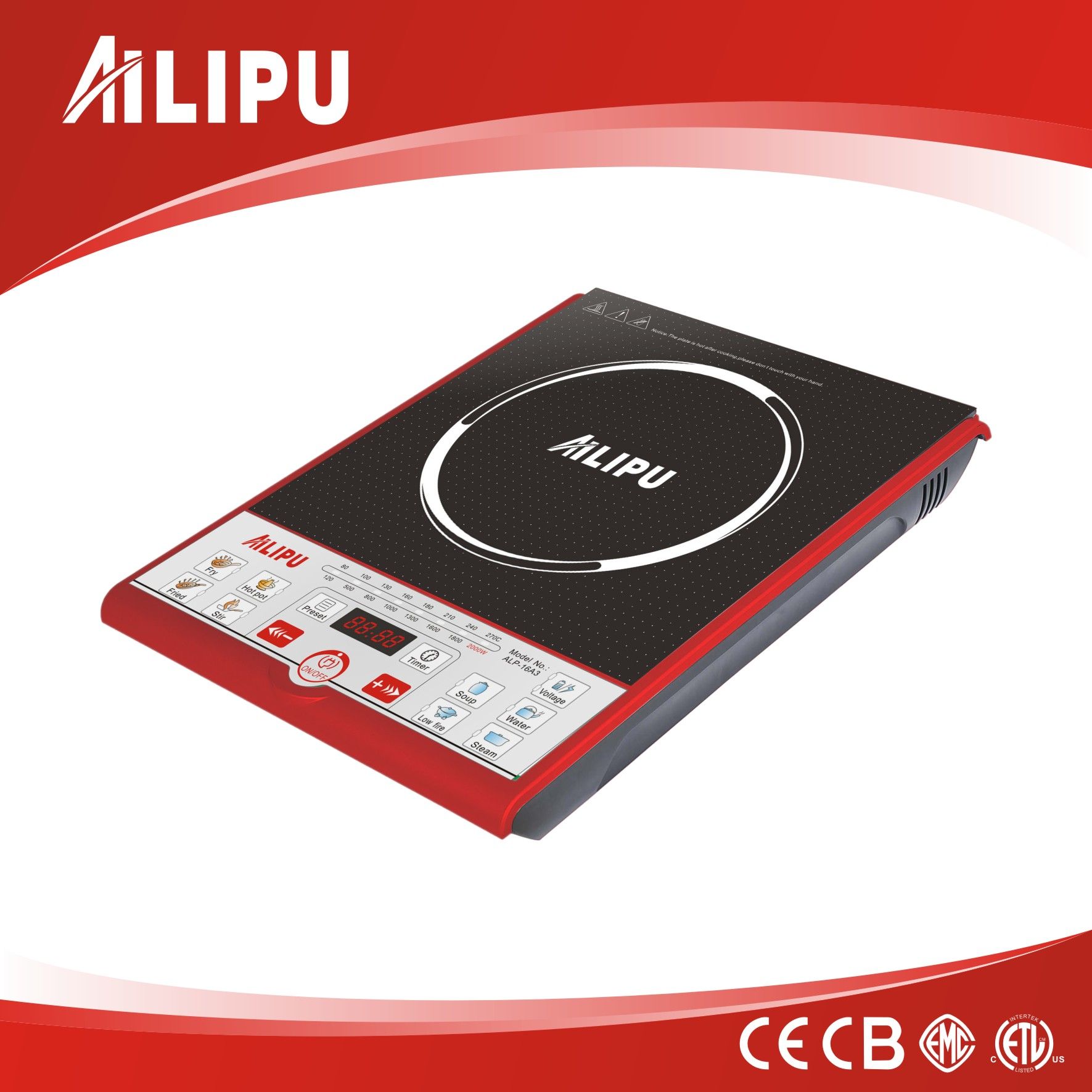

Single Induction Cooker
Push Button Controller,Four Digital Display
Model NO.:SM15-16A3
Installation for Induction Cooker:Countertop
Operation Mode:Pushbutton
Burner for Induction Cooker:Single
Housing:Plastic
Heating Element:Coil
Power:1500W
Plate Material: Grade A Crystal Glass Plate
Plate Size:270*270mm
Auto Swift off:Yes
1) Voltage/Hz:220V~240V,50/60Hz
2) Voltage Range:L88V~H280V
3) Display 2000W, Real Power:1500W~1600W
4) A-Grade Black Crystal Plate 270*270mm
5) Pure Copper Coil 16*27
6) PCB Board
7) Housing Material:Plastic
8) Product Size:286*364*57mm
9) 8 Intelligent Cooking Function
10) 8 Level Temperature & Power Adjustment
11) Power & Temperature Indication
12) Preset&Timer&Voltage Function
13) Over Heat/Voltage/Current Protection
14) Auto shut off in 1 minute without Vessel
15) Without Pot
16) 2 or 3 Round Pins Plug/1.5m length
Product description | Packing details | Gift box size(mm) | Carton box size(mm) |
INDUCTION COOKER 100V-280V 50/60Hz 2000W | 1PC/GIFT BOX 6pcs/Ctn Without Pot | 320*88*392 | 544*335*406 |
Push button controll |
A-Grade black crystal glass; |
4 Digit display Indication; |
Plate size: 270*270mm; |
100% copper coil 16*27 (Real Watt 1500-1600); | 1PC/GIFT BOX 4pcs/Ctn With 260g SS Pot | 320*170*392 | 696*335*406 |
Product size: 290*365*63mm; |
8 Intelligent cooking function; |
Timer and 24 hours presetting function; |
1.5M power Cable; |
Product Description
Specifications
Siemens IGBT original imported from Germany
Program IC imported from Taiwan
1. Power: 1500 W
2. Rated Voltage: 120V
3. Rated Frequency: 60Hz
4. Control: Sensor Touch; 100% copper coil
5. Panel: Black Crystal Panel (Grade A)
6. IGBT: Siemens, high quality circuit board
7.4-digital display
8. Timer: 0-240 minutes, Preset: 24 hours Temperature range: 80~270degree
9. Function: Water/Soup/Fry/BBQ/ Stewing/ Hot Pot/Keep warm/Timer
10. Certificate: CE/CB//ETL/EMC/RoHs
11.88V super low voltage starting, world wide fit
12. No flame & no leakage of electricity, No Pollution, 86% energy saving
|
INDUCTION COOKER |
MODEL | SM15-16A3 |
| |
VOLTAGE | 110V-120V |
KHZ | 50/60HZ |
POWER | 1300W-1400W |
MAIN PARTS | CRYSTAL BLACK PLATETOP GLASS |
PLASTIC MATERIAL BODY |
INDUCTION COIL |
GLASS OF CONTROL PANEL |
PCB OF CONTROL PANEL |
PCB OF INDUCTION COOKER MAINBOAD | |
IGBT |
RADIATOR |
FAN |
RUBBER FOOT |
ELECTRICAL CORD |
|
SPECIFICATION | 1) ONE BUINER COOKING |
2) DOMESTIC USE |
3) NEW PUSH BUTTON CONTROL |
4) PORTABLE DESIGN |
5) LCD DISPLAY |
6) PRODUCTS SIZE: 350*285*63MM |
FUNCTION | 1) MAGNETIC WELL WITH THE POT AND HEATING |
2) ANTI-FUNCTION WELL, SUCH LIKE FRYING, BOILING, BARBECUE..ETC |
3) NORMALL COOKING FUNCTION IS POWER LEVEL,TEMPERATURE LEVEL AND THE TIMER |
4) INDUCTION COOKTOP POWER LEVELS ADJUSTMENT 1-10 LEVELS BY "-" AND "+" |
5) INDUCTION COOKTOP TEMPERATURE LEVELS ADJUSTMENT 60°C- 240°C BY "-" AND "+" |
6) INDUCTION COOKER TIMER LEVELS ADJUSTMENT 0-180 MINUTES BY "-" AND "+" |
SAFETY FUNCTION | 1) SAFETY CHLID LOCK |
| 2) ANTI-LOWE/HIGH VOLTAGE WARNNING |
| 3) ANTI-UNAVAILABLE POT WARNNING |
| 4) ANTI-HIGH TEMPERATURE WARNNING |
| |
FEATURE | 1) INDUCTION COOKER IS FASTER,MORE SAVE ENERGY, MORE EASILIER COOKING |
| 2) ONLY FLAT POTS WITH BASE DIAMETER BETWEEN 12CM AND 26CM ARE AVAILABLE |
