Product Specifications
| Prod Model: |
BO-R-1325S2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Plastic |
| Engraving Machine Type: |
CNC Engraving Machine |
| Power: |
Small Power |
| Drive Type: |
AC Servo Drive |
| Control: |
CNC |
| Certification: |
GS, SGS, CE, ISO 9001 |
| Current: |
AC |
Product Description

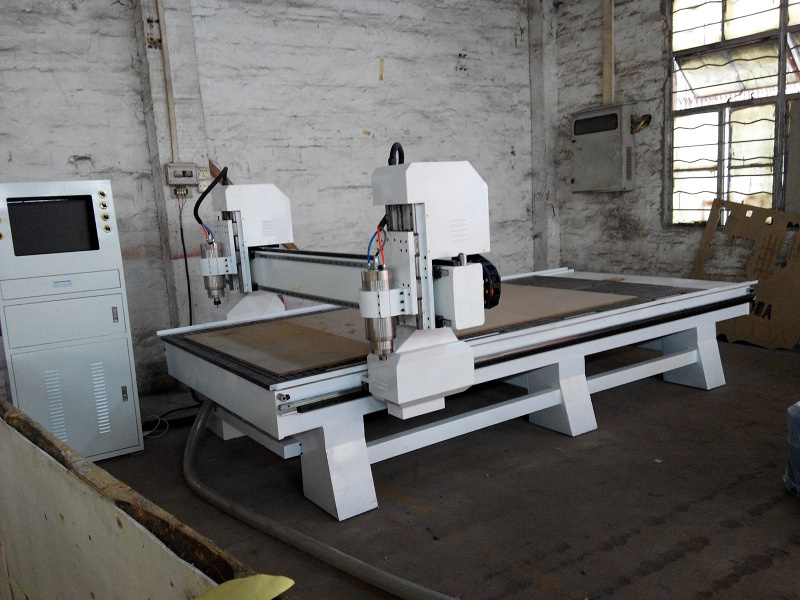

Engraving machine -BO-R-1325S2
Applications:
1.Woodworking industry: three-dimensional wave board processing,cabinet doors,wooden craft,Non-paint doors,screens\furniture\craft window processing products.
2.Advertisement industry: Advertising signs.PVC boards,double color boards. logo productions,acrylic cutting ,suck plastic molding,large word cutting,scutcheon production,crystal plates,LED/neon groove,aperture cutting,light box mould production.
Models:
1.BO-R-1325S1 engraving machine
Dual independent control can be processed simultaneously two identical products.
Specifications and parameters:
| Model | Working area(X*Y*Z) | Spindle power(kw) | Spindle mode | Spindle speed | Overall size | Max. working speed | Processing predision | Diameter of cutter | Working voltage |
| BO-R-1325SI | 1220X2440X200mm | 4.5kw | air-cooling spindle | 18000-24000rpm/min | 2000x3000x1900mm | 40m/min | ±0.1mm | 3.175-16mm | AC380V/50Hz |
| BO-R-1530SI | 1500x3000x200mm | 4.5kw | air-cooling spindle | 18000-24000rpm/min | 2600x3000x1900mm | 40m/min | ±0.1mm | 3.175-16mm | AC380V/50Hz |
| BO-R-1825SI | 1830x2440x200mm | 4.5kw | air-cooling spindle | 18000-24000rpm/min | 2600x3000x1900mm | 40m/min | ±0.1mm | 3.175-16mm | AC380V/50Hz |
2.DSP hand control,simple&convenient operation.
Specifications and parameters:
| Model | Working area(X*Y*Z) | Spindle power(kw) | Spindle mode | Spindle speed | Overall size | Max working speed | Processing precision | Diameter of cutter | Working voltage |
| BO-R-1325S2 | 1220X2440X200mm | 4.5kw | air-cooling spindle | 18000-24000rpm/min | 2000x3000x1900mm | 40m/min | ±0.1mm | 3,175-16mm | AC380V/50HZ |
| BO-R-1530S2 | 3000x1500x200mm | 4.5kw | air-cooling spindle | 18000-24000rpm/min | 2600x3000x1900mm | 40m/min | ±0.1mm | 3.175-16mm | AC380V/50HZ |
| BO-R-1825S2 | 1830x2440x200mm | 4.5kw | air-cooling spindle | 18000-24000rpm/min | 2600x3000x1900mm | 40m/min | ±0.1mm | 3.175-16mm | AC380V/50HZ |
Parts:
1.Precision parts: Italy spindle
water storage tank with cooling system
2.Optional parts: DSP controller
Servo motor
Our service:
| The term of payment:The advance payment 30%, The balance before the delivery (or after the customer approval before delivery). |
| The delivery time:Shall be in 20days after received the balance 30% payment. |
| The term of transport:ship |
Training : The seller advises to send 1 or 2 technician(s) to install and trial test at the buyer's
Workshop after the commodity reaches the destination. The technicians' trip ticket,
Local accommodation and transportation fees are to be borne by buyers.
|
| Warranty:The guarantee period is 24 months (artificial damage or damage due to force majeure is not covered under warranty.) after testing successfully in customer's factory. We offer the paid maintenance services for life. |
Pls contact me if you are interested in our products
SUDA PLASTIC PIPE WELDING MACHINERY CO.,LTD.
Marketing manager
Mrs.Jenny Yin
Cell:0086-15064878065
Tel:0086-532-67735116/66569132/66569182
Suda Plastic Pipe Welding Machinery Co., Ltd., located in Chengyang, Qingdao City. Our company have more than 10 professional engineers. We develop our own brand-"SUD". We have many agents in Thailand, Malaysia, South-America, Middle-east and so on, and they will give our customers all-time service.
Our machines have 2 types. One is manual type, such as 50-160mm( 2 clamps and 4 clamps), 50-200mm and 63-250mm. The other is hydraulic type, including 50-160mm, 50-200mm, 63-250mm, 90-315mm, 250-450mm, 355-630mm, 630-800mm, 710-1, 000mm, and 1, 000-1, 200mm, 1200-1600mm. Our machines are mainly used in water supply, water draining, sewage, and LNG/LPG pipe welding.
Our control methods including hydraulic control and automatic control. With the great efforts of all staff members, we can offer all types of welding machines, such as SUD315-2000 hydraulically controlled Workshop fitting machines, SUD315-1600 adjustable multi-angle cutting machines and SUD160~1600 hydraulically controlled welding machines with data recording and printing functions.
With many years of development, we have had a good reputation and established long-term relationships with many customers. Through their construction experience and good advice, we improve our technology and outlook, in order to make them easy operation and precise working.
Now we also produce DATA LOGGER, used in the machine, according to customers' requirements. The data logger helps us easy to record the temperature, time and others, will better assist in working site. We also have ISO9001 quality management system certification and CE certification.
We have the concept of "Customer First, Quality Foremost", we sincerely weclome all friends visit and co-operation.
