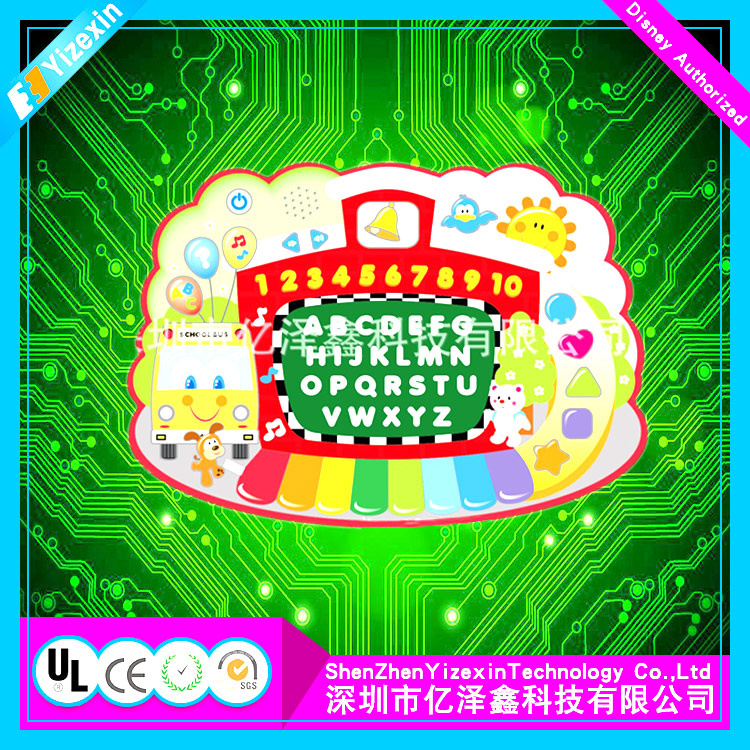

Embossed Graphic Overlay Membrane Panel
| Price: |
US $ 0.54-0.60/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Specifications
| Prod Model: |
YZX-MP009 |
| Color: |
According to Your Design |
| Feature: |
Enclosed and Waterproof |
| Insulation Ink Voltage: |
100VDC |
| Custom Made: |
OEM/Customize |
| Conductive Ink: |
Screen Printing Silver Ink, Carbon Ink |
| Pattern Of Payment: |
L/C, T/T, Dp, Western Union, Paypal, Money Gram |
| Package: |
Polybag/Cartoon Box |
| Back Adhesive: |
3m9498A 3m467 3m468 3m200 |
| Transportation: |
by Ship/by Air/by Land |
| HS Code: |
8536500000 |
| Type: |
Flexible |
| Application: |
Electronic/Electrical/Toy/Medical/Equipment |
| Structure: |
Muti-Types |
| Material: |
PC/PVC/Pet/PCB/FPC/PMMA/Silicon |
| Contact Type: |
Metal Dome/Tactile/Touch Keboard/Pet/Plug in |
| Detection Method: |
Retro-Reflective Mode/Temperature Tester/ |
| Brand: |
Yizexin |
| Certification: |
Ohsas18001:2007/ISO/Ts16949:2009/ISO13485:2003/SGS |
Product Description

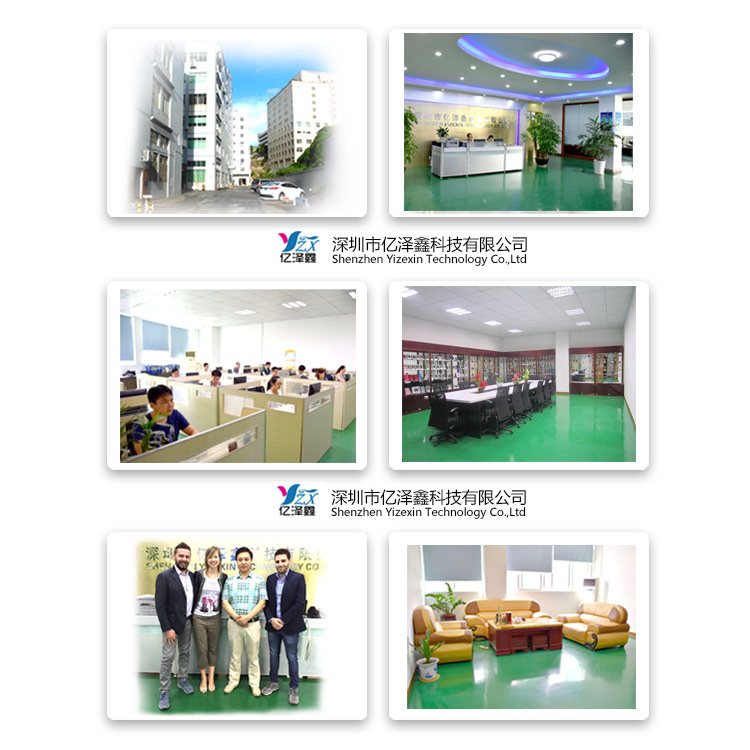

About our company:

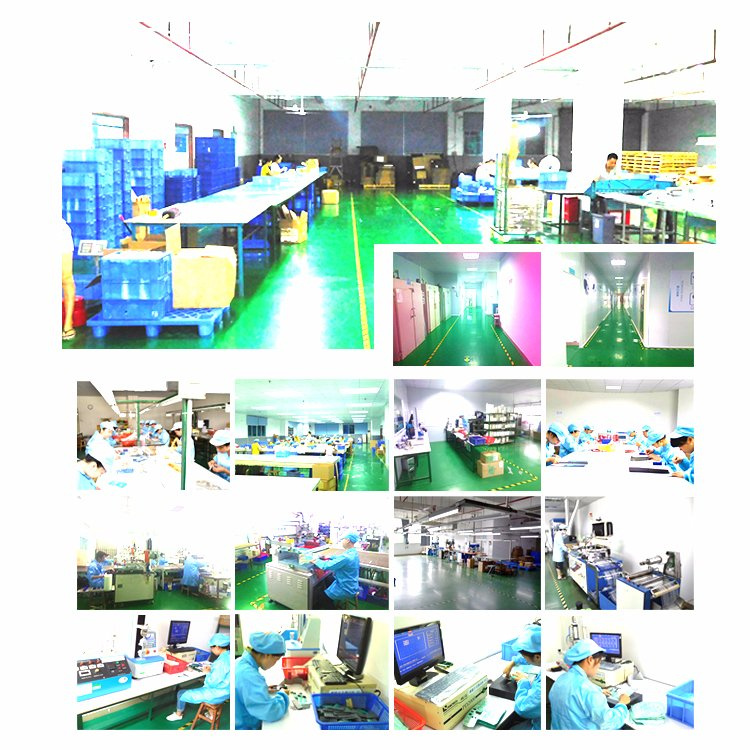

We have three companies,more than 500 workers in it.Our companies are specialized in the production of membrane switch,nameplate,lenses,crystal glue Acrylic craftwork,cartoon frameand so on.We have large dust-free workshop,full automatic silk screen printing machine,colo printing machine,CNC engraving and milling machine,numerical control cutting machine,punchandsomeothermodernproductiondevices.BT,SEMTECH,Emerson,Delong,Ferroli,
Motorola,Haier,Electrolux,Guangbao are all our cooperate partners. We are authorized by for three years, also the assigned supplier of Foxconn.We won many certificates,such as China famous quality products,quality service products AAA enterprise,OHSAS18001:2007,ISO14001:2004,ISO/TS16949:2009ISO13485:2003,TUV,UL,SGS,ROHS,FCC,CCC,CE,ASTMF9636.I can assure you of our best qualitly. Look forward to cooperating with you .
Product Description

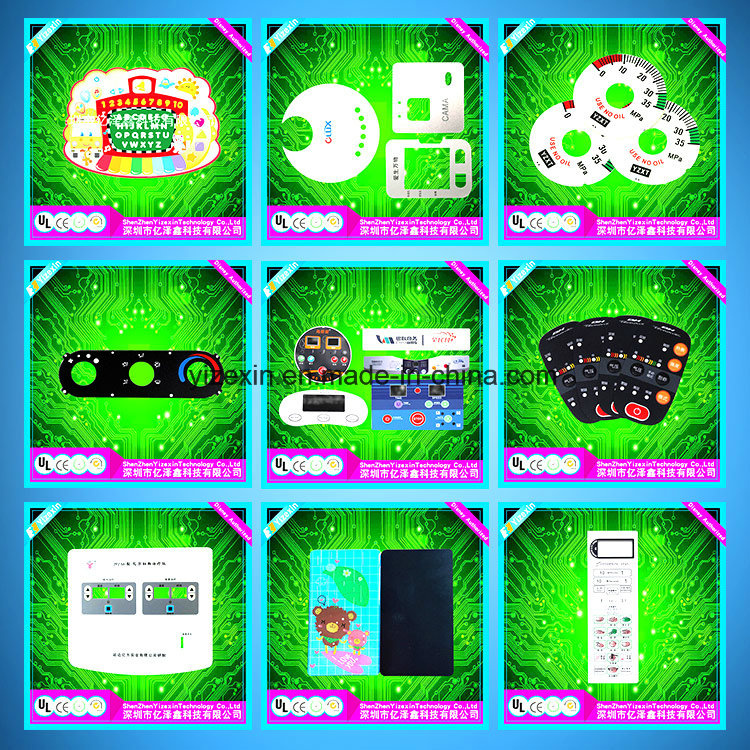

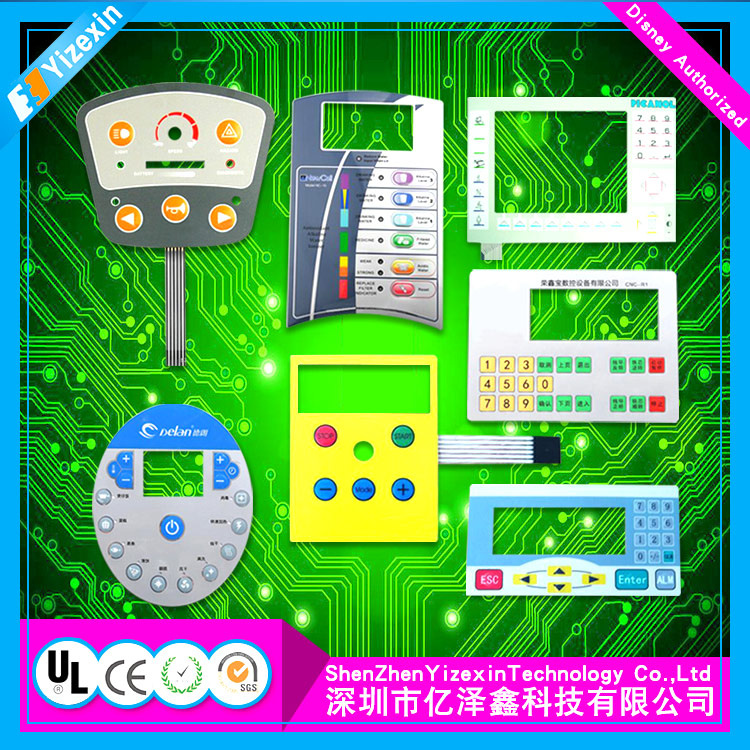

Shenzhen Yizexin High quality Membrane switch
Main Material and Technical Specifications: Name: | membrane switch |
Colortrans: | green/grey/blue/white/black or according to your preference |
Feature: | enclosed and waterproof can used at any environment |
Certificate: |
OHSAS18001:2007,ISO14001:2004,ISO/TS16949:2009,
ISO13485:2003,TUV,UL,SGS,ROHS,FCC,CCC,CE,ASTM-F963-16 |
| Custom Made: | OEM/customize |
| Material: | PC/PVC/PET/PCB/FPC/PMMA/Silicon |
Operation Temperature: | -40ºC~70ºC |
| Resistance: | <100MΩ,250VDC |
Contact resistance: | 0.5-10Ω |
| operating voltage: | ≤50VDC |
Rated current: | 25-100MA,0-30VDC |
Work current: |
≤100MA |
| Storage Temperature: | -40ºC~+80ºC |
| reliability/service life: | ≥1million times |
Operating humidity: | 40°C,<98%RH |
| Rebound time: | ≤ 6ms |
| Base Material Voltage Durable: | 2000VDC
|
Tail flexiblility: | any angle within 180 degree |
insulation ink voltage: |
100VDC
|
Back Adhesive: | 3M9449 3M467 3M468 3M200 |
Conductive Ink: | Screen printing silver ink,Carbon ink |
Features & benefits of membrane switches include:
It is a sealed entirety made of three or more different materials membrane adhere.It has the advantages of small size,light,weight,good sealing,original good appearance.
Applications:
It can applied to the instruments,numerical control machine,fridge,washing
machine,microwave ovens and other domestic appliances and industrical
control areas.
What is a "Membrane Switch"?
A membrane switch is a printed electronic circuit that uses pressure to open and close a circuit. The membrane switch circuitry is most often screen printed using conductive inks, which are typically made of silver, carbon, and/or graphite.Membrane switches are part of a range of devices considered to be user interfaces (also called operator interfaces, or man-machine interfaces) along with display-based touch screens, and mechanical switches such as push-button, toggle, rocker, and slide switches. The ultimate purpose of a membrane switch is to serve as the interface between man and machine, enabling an operator to communicate with a piece of equipment, instrument, or machinery.
How are membrane switches constructed?
Membrane switches are essentially a sandwich of thin layers that are bonded together using pressure sensitive adhesives. Depending on the application requirements, a membrane switch will consist of as few as 4, and as many as 9 layers. In contrast to mechanical switches, membrane switches offer the advantage of lower cost, they consume less design space with their low profile, are easy to clean, and they offer a sleeker, ergonomic, and aesthetically pleasing appearance.
The visible top layer of a membrane switch is the graphic overlay, with printed circuitry underneath the overlay. The circuitry can also incorporate different layers such as polyester (silver flex), polyimide (copper flex), and rigid PCB layers. Activation of a switch occurs when a printed shorting pad or metal dome makes contact with the bottom circuit layer thus, closing the circuit.
What industries use membrane switches?
Membrane switches can be found in a variety of different industries. Medical instrumentation and laboratory equipment are ideal markets for membrane switches. These switches can be designed to be sealed from moisture and contaminants and with anti-microbial coatings to resist bacterial growth and harsh chemicals. Membrane switches are also utilized in industries such as electronic test and telecommunication networking equipment. Industrial controls and fitness equipment are also industries where membrane switches are the user interface of choice.
Our factories have three companies: Shenzhen Yizexin Technology Co., Ltd., Yizexin(HK)Technology Co., Ltd, Shenzhen ankang sports equipment Co., Ltd, Our company supplies different kinds of products. Each products is: Membrane Switch and Membrane Panel, Flexible Circuit, Lenses Series, Stickers Series, crystal Glue, Roll up Piano, Roll up Drum, Hand Spinners, Hand Cube, Acrylic ornament, Acrylic key chain, etc., our factory more than 500 people, We have our own Exhibition Workshop, Dust-Free Workshop, Laboratory, 6 Color Printing Machine, Automatic Screen Printing Machine, Cutting Machine, etc., We has also our own development teams and foreign trade teams. We also passed the ISO9001, SGS certification, Our products also the CE, FCC, RoHS, CPC certification, etc. Also has our own product patent, the Disney authorization for 3 years, Foxconn Appointed Supplier. All products are exported to Japan, Europe, America, Italy, Germany, Korea, Mexico, India and other foreign markets. High quality and favorable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price. Welcome to your visit and order!
