Product Specifications
| Prod Model: |
Beetle-Jet |
| Product Name: |
DTG Machine Reasonable Prices and 3D T Shirt |
| Ink Type: |
Pigment/UV/Eco Solvent/Edible Ink |
| Max.Print Speed: |
A4/63s |
| Color: |
Cmyk+Ww |
| Max.Print Size: |
21cm X 30cm |
| Max.Resolution: |
2880dpi |
| Media Thickness: |
8cm |
| Style: |
Planographic Press |
| Structure: |
Reversible Printing Press |
| Color & Page: |
Double Faced Multi Colors |
| Print Interface: |
USB3.0 |
| System Supported: |
Windows 7/8/10/XP |
Product Description

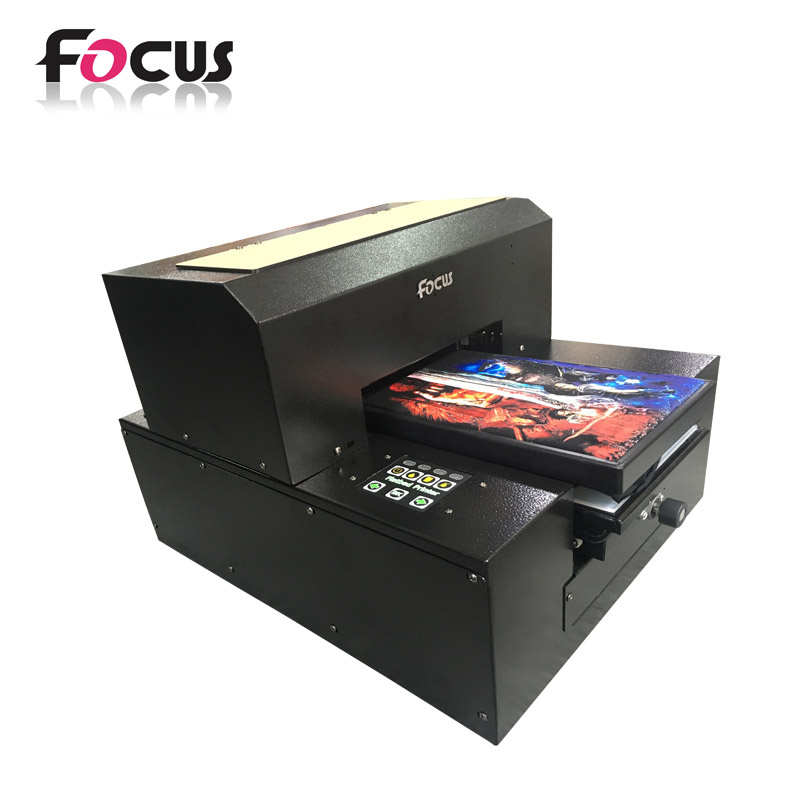

Beetle-Jet DTG machine reasonable prices and 3D T Shirt garment printing
Focus Beetle-Jet DTG machine reasonable prices and 3D T Shirt garment printing machine was manufactured as a homemade DTG printer with L800 engine, it is A4 size and 6 color model, a good choice for entry-level customer and special printing require with small size and low cost. | Focus A4+ Beetle-Jet DTG 3D T Shirt garment printing machine |
| Printing size | 210mm*300mm |
| Print head | Piezo Inkjet 1440 Nozzles |
| Print Color | 6 Color: Cyan. Magenta. Yellow. Black. Light Cyan, Light magenta
White model: CMYK LC LM / CMYK+WW |
| Printing Direction | Bi-Direction |
| Printing Speed | 1440DPI photo printing model: A4 size/63s |
| Max. height of object | 8CM |
| Max. Printing resolution | 2880DPI*1440DPI |
| Ink Tank Volume | 150ML |
| Ink | Pigment Ink / Eco solvent Ink/ Edible Ink |
| Height Adjust | Automatic/Manual Adjust |
| Printing Object Height Examine | Automatic Detecting |
| Print head Protection | Intelligent Self Protect System |
| Power | 110-220V 50-60HZ 75W |
| Printing Interface | USB2.0/LTP |
| Operation System | Windows95,98,NT,2000,XP,MAC |
| Working Environment | 10-35 C,20-80 RH |
| Max. printing weight | 25KG |
| Printer Size | 60CM*45CM*40CM |
| Shipping Size | 69CM*58CM*47CM |
| Gloss. W. Net. Weight | 40KG/30KG |
<1>. T shirt printing machine accepts printable objects height up to 6cm, weight up to 25KG.
<2>. T shirt printing machine can support directly print on the surface of textile, crystal, wooden, bamboo, metal, stone, leather, PVC, PP, PE, ceramic tile, acrylic to 25KG,so you can use
it as direct to garment printer,digital flatbed printer and direct to substrate printer.
<3>. Beetle-Jet is very simple to operate this machine. Just normal workers can operate it well after brief training.
<4>. Instant image printing.
<5>. Low cost of printing image, less procedures of production.
<6>. Stable printing technology, it is good for numbered items or tailor made such as gift field.
The third generation of Focus digital Flatbed machines has made the following improvements over its earlier counter parts :
1). Outlook of the t shirt printing machine with dust free design. digital textile printing machine , its new design reduces the environmental impact on equipment, user friendly design makes the operation more convenient.
2). Printable object height can be up to 6cm.
3). Intelligent Anti scratch print head system, ensures the life of print head last longer which reduces the cost of printing.
4). Two levels ink filter system ensures print heads will not be clogged easily.
5). Automatically examines the height of a transparent object.
6). Excellent after sales services, maintenance solution with full range of accessories.
Application field:
<1>. Sign making shop
<2>. Photo studio or film development shop
<3>. Screen printing.
<4>. Direct to garment printing on Garment, Textile and fabric, such as the T-shirt, flag, handkerchief, neckerchief...
<5>. Digital flatbed printing on Leather, shoes, clothes, crystal and other crafts & gifts industries
<6>. All kind of factories of art items with image.
Our Factory
Printing samples
Package of our printer:
Customer visiting
QUALITY IS OUR CULTURE
Our mission is making the best solution for international printing industry!
Welcome to vist our company and willing to contact us if you need any further support before or after sales:
Focus Digital Technology Company Limited.
ADD: Jianan Hongta Road, #246 Sibao Road, Sijing Town, Songjiang District, Shanghai 201615, China.
Website: www.focus-printer.com
www.focusdigi.com
Please contact us for Big surprise :) ( Only limited for first 10 enquiry people each day on Beijing time)
Focus digital technology Co., Ltd (Online register checking). Was set up in Shanghai, China. Which is the manufacturer to create and produce the best and potential DTG direct to garment printer, digital LED-UV flatbed printer, CTS computer to screen imaging system, signs &adverting products for the customers. We had focus in this digital printing field for 17 years. We supply all products by the reasonable price and real-time support lean upon our own production line, professional experience, strict parts purchase channel and altitudinal responsible action, we focus on the market to provide the latest major news and create the profitable products, our experiential support team gather all the technique and receive the newest training timely to provide the best support.
All the merchants may face these problems: Good quality but high price, Reasonable price but bad service, Good support but bad quality, inconsequential charge, cannot got the fully training, cannot got the real-time support, Response be delayed as the complex examination and application. Focus digital is a company to solve out this kind of problem for you maximal
How we do?
------- Rigorous "FOUR CHAIN" quality control; Real-time "LONG-DISTANCE-LOG-ON -DIAGNOSIS" Support; "ONE STOP" service
We refers to the rigorous " Four Chain (Material department control-Assemble line control-QC department control-Logistic department control ") quality control system to make sure all the products are intact before delivery, But no products are 100% perfect,
The real-time and effective support are the most important, customer can got the real-time effective support by our ONLINE SUPPORT and LONG-DISTANCE-DIAGNOSE SUPPORT to insure that all the problems and questions can be solved out quickly. Also we gather all the problems together to form as the solution documentations, so the customer can download from our FTP expediently.
For save customer's time and energy, we provide the "ONE STOP" service that includes Call center register, Question require, Problem handling, Online diagnosis, Spare parts shipping and return forwarding.
