| Price: | US $ 4800/Set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |

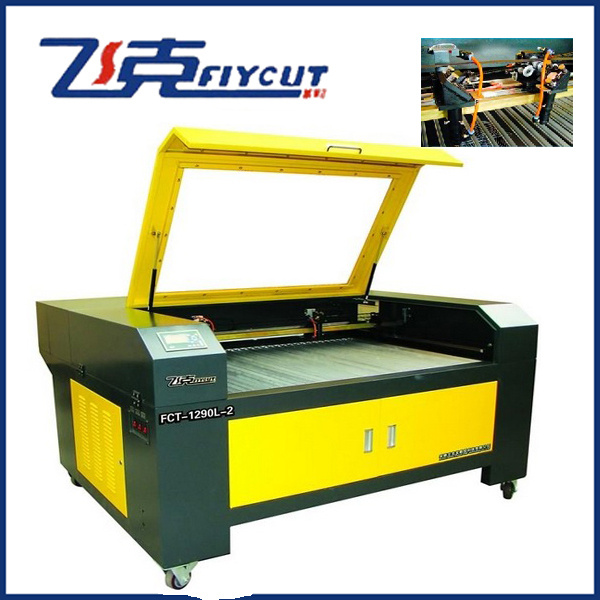

| Prod Model: | FCT-1290l-2 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engraving Machine Type: | Laser Engraving Machine |
| Control: | CNC |
| Current: | AC |
| Laser Type: | CO2 |
| Usage: | Plastic |
| Condition: | New |
| Warranty: | 1 Year |
Application:
The machine suit for engraving and cutting fabric,leather, wollens,organic glass,wooden item,bamboo item,plastic,rubber,ceramic tile,crystal,jade,etc.
Machine's main features:
1.Sopport many design softwares,such as CAD,CORELDRAW,etc., easily operate.
2.The aluminum bar table largely reduce the damage to object from reflecting light.
3.The honey comb table ensure light and soft object be cut in high accuracy.
4.Water chiller with alarming function make the machine work more safely.
5.Hot plugging USB data interface, data transferred easily and fastly.
6.Stable parallel laser make sure the cutting effectiveness the same in different area of the table.
Optional Configuration:
Servo motor and driver,red dot system,sate switch system,rotating axis,up-down table,multi laser heads,etc.
Our service:
1.The machine comes with 1 year warranty;
when it exceed warranty period,if the machine's part need to be changed,we can sell to you at our cost price
2. Our technican could provide remote guide online if you need.
3. We are manufacturers specialized in CNC engraving and cutting machine,welcome to customize or distribute our machines.
4. If you have any questions or requirement,feel free to contact us,it's our honour to serve you.
if you have any question,pls contact with me:
alice(overseas department manager)
Tel: +86 13966703473
Professionally produced engraving machine and laser machine factory
| Model | FCT-1290L-2 | FCT-1512L-2 |
| Working size | 1200*900mm | 1500*1200mm |
| Machine size | 2100*1400*1100mm | 2200*170081200mm |
| Laser tube power | 80W*2 | 80W*2 |
| Laser intensity control | Analogue or PMW | |
| Laser mirror | Imported mirror | |
| Focus lens | Imported lens | |
| Laser table | Knock-down aluminum bars or honey comb table | |
| Industry chiller | CW-3000 water chiller *2 | |
| Air compressor | Optional | |
| Exhaust fan | Big power exhaust fan | |
| Working speed | 24000mm/min | |
| Max.scan accuracy | 2500dpi | |
| Min.character | Chinese 1mm*1mm,English 0.8mm*0.8mm | |
| Positioning accuracy | ±0.01mm | |
| Support format | BMP,GIF,JPG,PCX,TGA,TIFF,PLT,CDR,DMG,DXF | |
| Motor driver | Stepper motor | |
| Cutting thickness | 0-20mm depends on different material | |
| Net weight | 600KG | 800KG |
