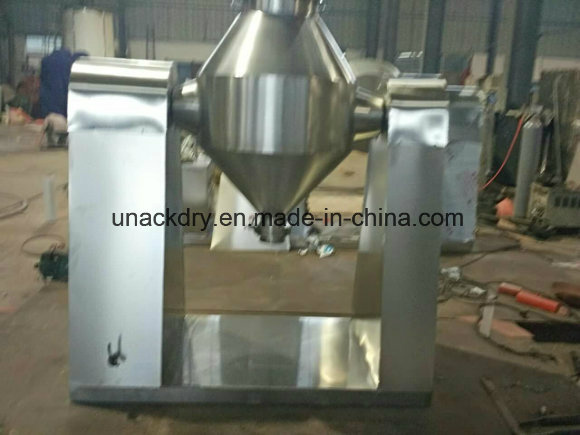

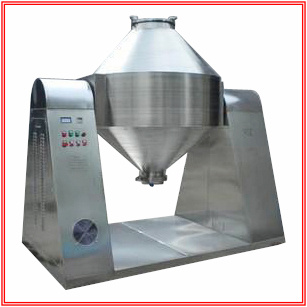

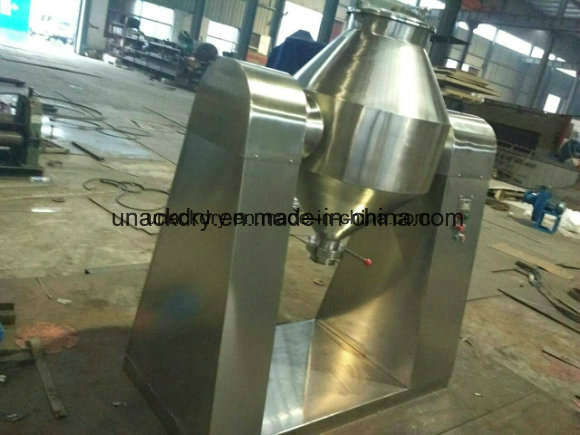

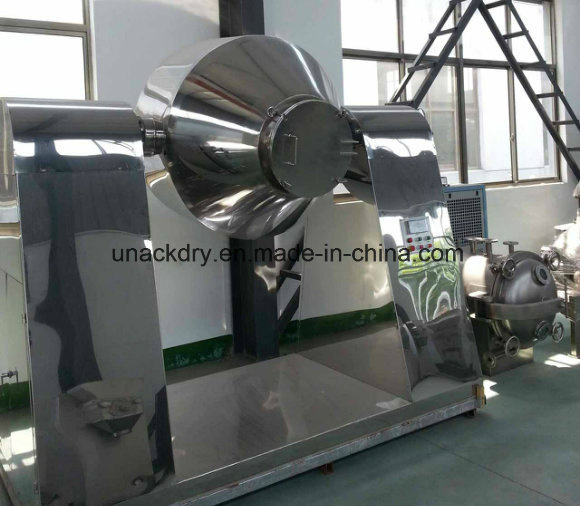

Double Cone Rotary Vacuum Drying Machine

Double Cone Rotary Vacuum Drying Machine
Price: US $ 1-19999/Piece
Trade Terms: FOB,CIF,CIP
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal

Product Specifications


Prod Model: SZG
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name: Rotary Vacuum Dryer/ Vacuum Drying Machine
Material: Stainless Steel
Tem.: Low Tenmperature
Pressure: Negative Pressure
Pump: Water Ring Vacuum Pump
Heating Source: Hot Water or Steam
Temperature: 30-140
Application: Wet Powder
Electric Voltage: 120-600V
Hz: 50-60
Type: Dryer
Voltage: 380V
Power: 1.5KW
Customized: Customized

Product Description

 Rotary vacuum dryer Description:Let heat source pass through the sealed Jacket The heat will be transmitted to raw material to be dried through inner shell,Under driving of power,the tank is rotated slowly and the raw material.



Working Principle
Let heat source(for example,low pressure steam or thermal oil)pass through the sealed Jacket The heat will be transmitted to raw material to be dried through inner shell;
Under driving of power,the tank is rotated slowly and the raw material inside it is mixed continuously.The purpose of reinforced drying can be realized;
The raw mate rial is under vacuum The drop of steam pressure makes the moisture(solvent)at the sudace of raw material become saturation and will evaporate The solvent will be discharged th rough vacuum pump and recovered in time The inne r moistu re(solvent)of raw material will infiltrate,evaporate and discharge continuously The th ree processes are carried out unceasingly and the purpose of drying can be realized within a shon time.



Material to dried
It is suitable for the raw materials that need to concentrate,mixed and dried at low temperature(for example,biochemistry)products in chemical,phamaceutical and foodstuff industries.Particularly it is suitable for the raw materials that are easy to be oxidized,volatilized and have night heat sensitivity and is toxic and not permitted to destroy its crystal in drying process.

Characteristics
When oil is used to heat,use automatic constant temperature control.It can be used for drying biology products and mine Its temperatu re of operation can be adjusted form 20-160oC.
Compared to ordinal d ryer,its heat efficiency will be 2 times higher.
The heat is indirect So the raw material can not be polluted.
It is in conformity with the requi rement of GMR It is easy in washing and maintenance.



Technical Parameter

model
name
100350500750100015002000350045005000
volume inside
the tank(L)
100350500750100015002000350045005000
Volume to fill
raw material(L)
≤50≤175≤250≤375≤500≤750≤1000≤1750≤2250≤2500
Heating area
(m2)
1.1622.633.54.615.587.511.213.114.1
revolution
( rpm)
4 - 6
power of motor
(kw)
0.751.11.523345.57.511
occupiedarea,
L×W(mm)
2160
×800
2260
×800
2350
×800
2560
×1000
2860
×1300
3060
×1300
3260
×1400
3760
×1800
3960
×2000
4400
×2500
rotating height
(mm)
1750210022502490280029402990349041004200

design pressure
inside the tank
(MPa)

-0.1-0.15
design pressure
of jacket (MPa)
≤0.3
working temp-
erature(oC)
In the tank≤85 jacket≤140
When use con-
densator,
2X-15A2X-15A2X-30A2X-30A2X-70AJZJX300-8JZJX300-4JZJX600-8JZJX600-4JZJX300-4
model and power
of vacuum pump
2KW2KW3KW3KW505KW7KW9.5KW11KW20.5KW22KW
When don,t use
condensator,
SK-0.4SK-0.8SK-0.8SK-2.7BSK-2.7BSK-3SK-6SK-6SK-9SK-10
model and power
of vacuum pump
1.5KW2.2KW2.2KW4KW4KW5.5KW11KW11KW15KW18.5KW
Weight(kg)800110012001500280033003600640075008600
