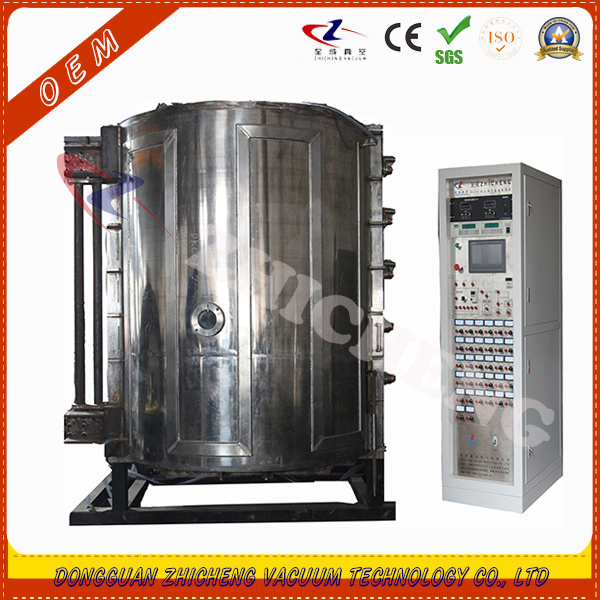

Domestic Ceramics and Crystal Lamp Plating Equipment

Product Specifications

Prod Model:	ZC-T22
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Operation System:	PLC Touching Screen
Control System:	Automatic Manual All-in-One
Coating Colour:	Gold, Rose Gold, Silver and Black
Name:	Domestic Ceramics and Crystal Lamp Plating Equipme
Place Of Origin:	Dongguan, China
Sample:	Available
Technic:	Vacuum Coating Technology
Applied Industry:	Domestic Ceramics and Crystal Lamp
Businee Type:	China Manufacturer/Factory
Brand:	Zhicheng
Type:	Coating Production Line
Coating:	Vacuum Coating
Substrate:	Steel

Product Description

Domestic Ceramics and Crystal lamp plating equipment


1.Brief Introduction
Domestic Ceramics and Crystal lamp plating equipment  is cathodic arc ion evaporators and also bias power, magnetic-control sputte-ring target. Device feature: Equipped with strong pumping system, quick air-exhaust, high loading quantity, mass production, low cost. It can produce the coating with imitating gold color, rose gold, silver, black and other colors

2.Advantages
Domestic Ceramics and Crystal lamp plating equipment  mainly integrates technology of DC magnetron sputtering, intermediate-frequency sputtering and arc ion evaporation. With the combination of linear ionization source and pulse bias coating, this equipment can make various properties of thin film of deposited particles improved. It can coat alloy film, compound film and multilayer complex film on metal products and nonmetal products. After many years research of our engineers on special cathode arc ion and non balance magnetron system, we have developed a whole set of PROPOWER series of computer automatic control system, making the plating film adhesive and dense, the consistency of repeated plating better. We solve the problems of complicated manual operation and inconsistent film colors.

3.Applied Industry
Domestic Ceramics and Crystal lamp plating equipment  is widely used in watches, mobile shell, hardware, sanitary ware, tableware, cutting tool, wear-resisting mould etc. It can coat TiN, TiCN, CrN, TiNbN TiALN, TiCrN, TiNC, and all kinds of DLC film.

4.Other Information
A. Magnetron sputtering principle is based on the theory of cathodic glow discharge, expand the cathode magnetic on the surface to the work-piece surface. It improves the ionization of sputtering atoms. It keeps the film exquisite and increase the gloss.

B.It has reliable performance, and it can work in 30A current when optimizing cathode and magnetic structure. The coating layer and substrate basement have produced atomic diffusion will help ion beam deposit.

5.Parameter of the machine

Mode	JTL-0910	JTL-1110	JTL-1311	JTL-1612
Dimension	Φ 900Χ 1000mm	Φ 1100Χ 1000mm	Φ 1300Χ 1100mm	Φ 1600Χ 1200mm
Main confirguration	3 electric-arc+2 pairs of plane rectangular cathode	6 electric-arc+2 pairs of cylindrical cathode+a pairs of plane rectangular cathode	5 electric-arc+4 pairs   of cylindrical cathode+a pairs of plane rectangular cathode	6 electric-arc+8 pairs of cylindrical cathode+a pairs of plane rectangular cathode
Film type	Metal films, Dielectric films, Compound films, Reaction films, Muti-layer function films
Power source	Electric arc power supply, DC magnetron power supply, MF magnetron power supply. Pulse bias voltage power supply. ion source power supply.
Process gas control	Quality flowmeter + electromagnetism ceramic valve
Vacuum chamber structure	Vertical single(side) door, pump system postposition, double water-cooling
Vacuum system	Molecule pump(diffusion pump)+Roots pump +Mechanical pump   (8.0*10 -4 Pa)
Pump speed	Pumping time less than 15 minutes, from atmospheric pressure to 3Χ 10 -3 Pa
Workpiece motion mode	Public rotation Frequency control: 0-20 rotation per minute
Control mode	Full automation control system PC+PLC/PC+HMI

Company Introduction:

The coating experts of your own company:Full set solution for the coating production

ZHICHENG can help you to enter the PVD coating easily by our vacuum coating machine and full range service. We will provide most suitable technology according to your requirements.
Moreover We will make the unique coating solution for each customer; combine with the full set production technics to meet your requirements, and ensure high efficiency of production.

We developed a complete after-sales system and effective service measures. Company owns a professional after-sales service team with experienced engineers.

Please feel free to contact us for further information!
