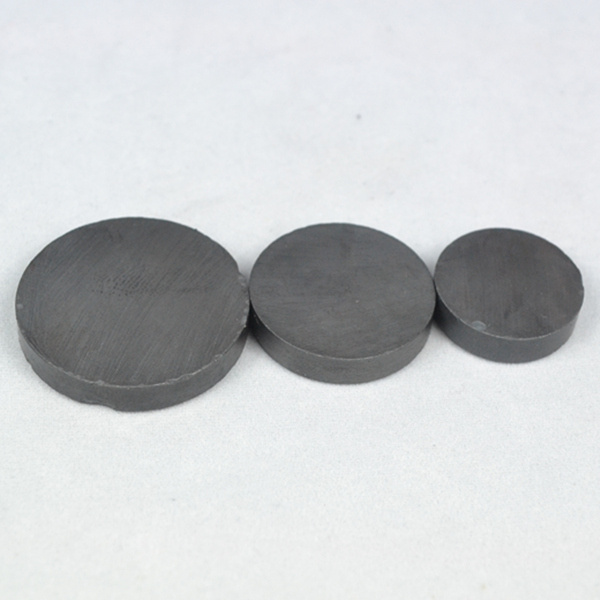

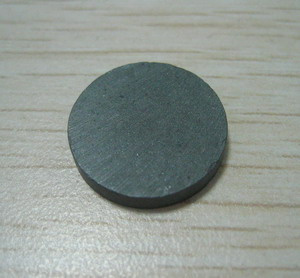

Discs Ceramic C5 Ferrite Magnets

Product Specifications

Prod Model:	MF-F541
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Composition:	Ferrite Magnet
Size:	Custom
Environment:	Eco-Friendly
Application:	Industrial Magnet
Shape:	Discs.
Coating:	No Coating

Product Description

Discs Ceramic C5 Ferrite Magnets,



1) High working temperature
2) Good corrosion resistance
3) shapes: Segments, arc,
4) cheap, good magnet performance
Products: Block ferrite magnets, hard ferrite magnets, Ceramic Magnet
1. Material: SrO, BaO, Fe2O3.
2. Grade: Y10T, Y20, Y25, Y30, Y30BH, Y35, C5, C8, C11
3. Size: At your request.
4. Shapes: Arc, Tile, Block, Bar, Ring, Cube, etc.
5. Certificates: , SGS, ISO9001: 2000, ISO/TS16949: 2002, Sony Green Partner, Factory Audit, RoHS.
6. Application: Widely used in ammeter, audio, phone, TV, dynamo, Motors, Meters, Speakers, Sensors, Medical Machine products, Magnetic Sport products, etc

Features:
1) Cheapest magnet material
2) Good anti-corrosion performance, no surface treatment needed.
3) Excellent temperature stability
4) Best choice for industrial application
5) All shapes can be customized
6) Compact crystal
7) provide isotropic and anisotrpic

BUYER GUIDE:
In order to quote you the best price quickly, please provide the following information:
1. Product size, grade, coating, etc
2. Order quantity;
3. Attached the drawings if customized
4. Any special packing or other requirements
Our advantages: High quality, best service, fast dilivery.
We offer OEM service.
Quality First, Customer Forever

About Ceramic (Hard Ferrite)

Ferrite magnets, sometimes referred to as ceramic because of their production process, are the least expensive class of permanent magnet materials.
Sintered Ferrite Magnet of the main raw material including BaFe12O19 and SrFe12O19, according to the orientation of magnetic crystal divided into isotropic and anisotropic magnets. Because of its low cost and moderate magnetic properties and become more widespread application of a magnet. Ferrite magnet is made of by ceramic method, texture is relatively hard, it is a brittle material, due to ferrite magnets have good temperature resistance and low cost has become more widespread application of permanent magnets.
Advantages:
1. The material is one of the most cost effective magnetic materials manufactured in industry. The low cost is due to the cheap raw materials. Due to their low cost, Ferrite magnets enjoy a very wide range of applications, from motors and loudspeakers to toys and crafts.

2. Rectangular ferrite magnet has an excellent resistance to demagnetisation and can be magnetised before or after assembly without danger of losing any performance.
3. It can be used in operating temperatures ranging from -40° C to + 250° C.
4. Sintered Ferrite will not corrode even in salt-water applications. It also has good chemical stability

Material	Iso/ Anisotropic	Remanence		Coercivity		Intrinsic Coercivity		Max Energy product
		Br(mT)	Br(Gs)	bHc(KA/m)	bHc(Oe)	iHc(KA/m)	iHc(Oe)	(BH)max(KJ/m 3 )	(BH)max(MGOe)
Y10T c1	Isotropic	≥ 200	≥ 2000	≥ 125	≥ 1600	≥ 210	≥ 2600	≥ 6.5	≥ 0.8
Y20	Anisotropic	≥ 360	≥ 3600	≥ 135	≥ 1700	≥ 140	≥ 1760	≥ 20.0	≥ 2.5
Y25	Anisotropic	≥ 380	≥ 3800	≥ 144	≥ 1800	≥ 150	≥ 1880	≥ 24.0	≥ 3.0
Y30 c5	Anisotropic	≥ 390	≥ 3900	≥ 184	≥ 2300	≥ 188	≥ 2350	≥ 27.6	≥ 3.4
Y30BH c8	Anisotropic	≥ 390	≥ 3900	≥ 240	≥ 3000	≥ 256	≥ 3200	≥ 27.6	≥ 3.4
Y35 c11	Anisotropic	≥ 410	≥ 4100	≥ 208	≥ 2600	≥ 212	≥ 2660	≥ 30.4	≥ 3.8
