Product Specifications
| Prod Model: |
783D |
| Classification: |
Nailcatcher Machine |
| Type: |
Garment |
| Automatic Grade: |
Semiautomatic |
| Over-Lock Stitch: |
None |
| Nailcatcher Machine Stitch: |
None |
| Buttonholing Machine Type: |
None |
Product Description

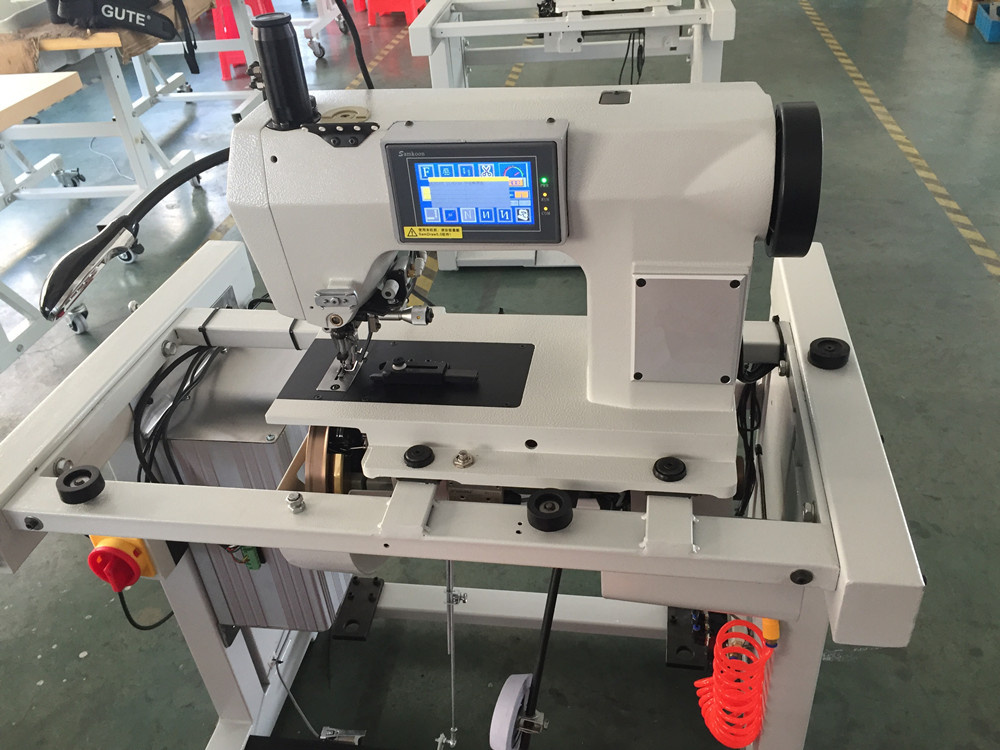

FIT-783D/785DM
Direct-Drive Computerized Hand Stitch Machine
| Sewing speed | 500r.p.m |
| Length thread | 90cm |
| Thread size | German standard10-120 |
| Needle | 780c 16#,18#,20#,23# |
| Power | 220v50hz/380v50hz |
| Air pressure | 5 mpa |
| Stitch length | 0.5-10mm |
| Stitch form | 1stitch,1thread(real hand stitch) |
| Appearance size | 128*96*86cm |
| Presser lifting height | 8-10mm |
| Lifting way | Pneumatic/by knee |
| Thread specification | Common thread |
| Back stitch | Set free |
Application:
Equipped with computerized system: adjustment of sewing speed/stitch space(the space between two stitches)and stitch length, convertible stitches in both sides, business attire, knitting products, tanning leather, hating ,bag, making tune stitch
Presser lifted pneumatic ally start-end back tack
Presser lifted pneumatic all or by right knee and start-end back tack, equipped with computerized system such as changing the length of pin-point and stitch length, operating half stitch button, auto-adjust able positive and negative pin-point. setting stitches and so on.
Use computer-controlled servo motor
Use computer-controlled servo motor to control feeding system which reduces many spare parts, does not occur even in high-speed of weighty materials.
Skipped stitched are reduced
Skipped stitches and insufficient thread tightening due to a change of thread tension are reduced, regardiness of types of thread. The range of sewing capability has been enlarged.
Less noise
With through review of the mechanisms causing noise, quieter sewing even at higher sewing speed than the conventional model has been realized. The machine is mde with a sound design gentle to ears.
Einfache Bedienbarkeit
Equipped with liquid crystal touch-pad panied more powerful functions, simple frame and stable performance.
Beautiful design, wide application
This machine is designed with fashionable appearance and word advanced mechanism, and easy operation, it can stitch all kinds of fabric form light and medium heavy weight s an efficient sewing equipmet in knitting and garment factories.
Feature
Computer digital control over stitch length
Computer digital control over fixed-length stitch(stitch number)
Computer digital control over back stitch length/stitch number
High -definition liquid crystal color display, decent and fashionable
Visual licon display, simple and visual
Optimal high integration electronic circuit, with reliable work
Mark cam positioning, easy for adjustment
Sewing speed with foot control
Knee/pneumatic lifting and presser foot device, easy for operation
Needle shift device, invulnerable for needle oreakage
Hand/automatic thread cutter, safe and reliable
Thread take-off mechanism unnecessary for threading, fast and time-saving
A wide-range sewing thread size, reducing the thread cost
Adjustable stitch tension as required
Flicker-free LED cold light lamp,reducing visual fatigue.
Shipping package
TAIZHOU FIT GARMENT EQUIPMENT Co., Ltd. With the philosophy of Finding. Innovation Technology, we make a huge investment in develop new products and improve out machines quality in 2003, we employed 3 Japanese technicians, it increased our research -and -development capabilities. Now
FIT is a well-known brand in China. And well-accepted by customers. We have passed ISO9001; 2000, TUE, CE, and we have established the giobal market net coveing over many countries, such as Europe, South America, Africa Middle East and etc.
FIT specialized in manufacturing all the kind of sewing machines, including basic models, lile lockstitch/overlock/interloc and also some special machines&high technology machine, such as button/bar/pattern.
FIT warmly welcome all the friends home and abroad to visit us and create brilliant future. We believe our quality and service will attract all the friends.
