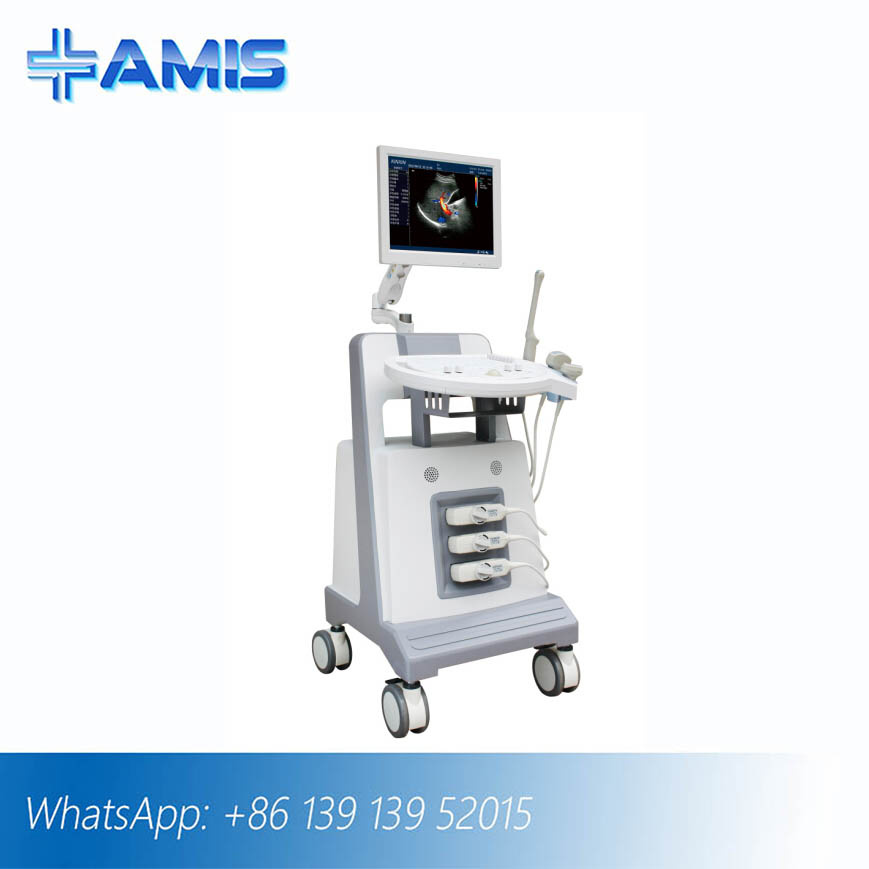

Digital Ultrasound Diagnostic Instrument Color Doppler (AM-DCU2)
| Price: |
US $ 6800-7200/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
T/T,Western Union,Money Gram |
Product Specifications
| Prod Model: |
AM-DCU2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
15'' |
| Classification: |
Imaging Diagnostic Equipment |
| Type: |
Ultrasound Scanner |
| Certification: |
ISO13485 |
| Group: |
All |
Product Description
1.System Application
DCU2 full digital color Doppler ultrasound scanner is available for the diagnosis of abdomen (including GYN and OB), cardiology, vessel and small parts, with the following scanning mode: 2D, CFM, PDI, PW and M to provide the best resolution and sensitivity.
Support convex probe, linear probe and transvaginal probe, etc.
2.General Specification
2.1 Dimension
Main unit size: 660mm(H) x 500mm(W) x 1200-1400mm(H) (height of liquid crystal holder is adjustable)
N.W.: 35 Kg(without probe)2.2Power Supply
Dual power-supply system: AC110/230V -15%~+10%(self-adaptation supply voltage ) 60/50Hz±1Hz2.3Display
15" high definition & flicker free color medical LCD monitor3.System Description
3.1Probe specification
- 3.5MHz multi-frequency convex probe
- 7.5MHz multi-frequency linear probe
- 6.5MHz multi-frequency transvaginal probe
3.2Operating mode
B,B/B,4B mode
M,B/M mode
CFM
PDI
PW
THI3.3Probe socket: 3
3.4 Media & peripheral device
USB flash card
Video printer: Sony UP-897MD
TV Output:PAL/NTSC
Color laser printer (defined model:HP Color LaserJet CP1515n,
HP Color LaserJet CP1525n)
If you want to connect with other model Color laser printer, then you can use
our 1pc CD and 1pc reticle (Standard configuration).
3.5Storage
Image storage, cine loop storage, cine loop ≥300 frames3.6Puncture Guide Line
Adjustable angle and memory storage3.7Languages
Menu operation: Chinese / English / Russia / Portuguese
6.Scanning parameters
6.1B Mode
6.2M Mode
6.3CFM color Doppler mode
6.4PDI Power Doppler Mode
6.5PW Spectrum Doppler Mode
6.6Image diplay
256 grades gray scale 2D image diplay
gray scale histogram plot display
Image reservation:up/down, right/left
Depth scope:32~252 mm (35 grades) each probe has its own depth scope
and adjustable grades
Focus: continuous dynamic focus, dynamic aperture
Dynamic: ≥100dB (visual & adjustable)
M mode speed: 8 classes adjustable
Display TGC curve
Black & white related
Video output: NTSC or PAL
7. Measurement / Calculation
7.1General measurement
B Mode measurement: distance, area (distance measurement method, ellipse distance method, trace method), circumstance (distance measurement method, ellipse distance method, trace method), volume (two - axial method), angle , Histogram , sectional view, stenosis rate( length stenosis rate, area stenosis rate ) and depth.
M mode measurement: depth, slope, heart rate, circle
D mode measurement: velocity, heart rate, flow velocity, time acceleration, Pulse/ Resistance Index, Max differential pressure, PG mean,ratio, stroke volume, flow rate. 7.2 Gynecology measurement and analysis
7.3 Obstetric measurement and analysis
7.4 Urology measurement and analysis: Prostate volume, Residual Urine Volume
7.5 Cardiology measurement and analysis
