| Price: | US $ 3259-3769/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Money Gram |
| Prod Model: | Vocano-Jet Pro |
|---|---|
| Product Name: | Vocano-Jet PRO A3 UV Printing Machine |
| Voltage: | 110V/220V |
| Print Head: | 1390/1400 |
| Color Model: | 6 Color A3 UV Printing Machine |
| Color: | Cmyk+Ww |
| Max. Printing Size: | Available on Dark Media |
| Rip Software: | Focus Rip 8.2.6/ Custom Rip |
| Machine Body: | Thicken Aluminium Profile |
| Ink: | UV Ink, Eco Solvent Ink, DTG Ink |
| White Ink: | Available on Dark Media |
| Plate: | Relief Printing |
| Structure: | Platen Press |
| Color & Page: | Double Faced Multi Colors |
| Printing Interface: | USB2.0 |
| System Supported: | Win7/Win8/Win10 |
| Printing Speed: | 64s/A4 |

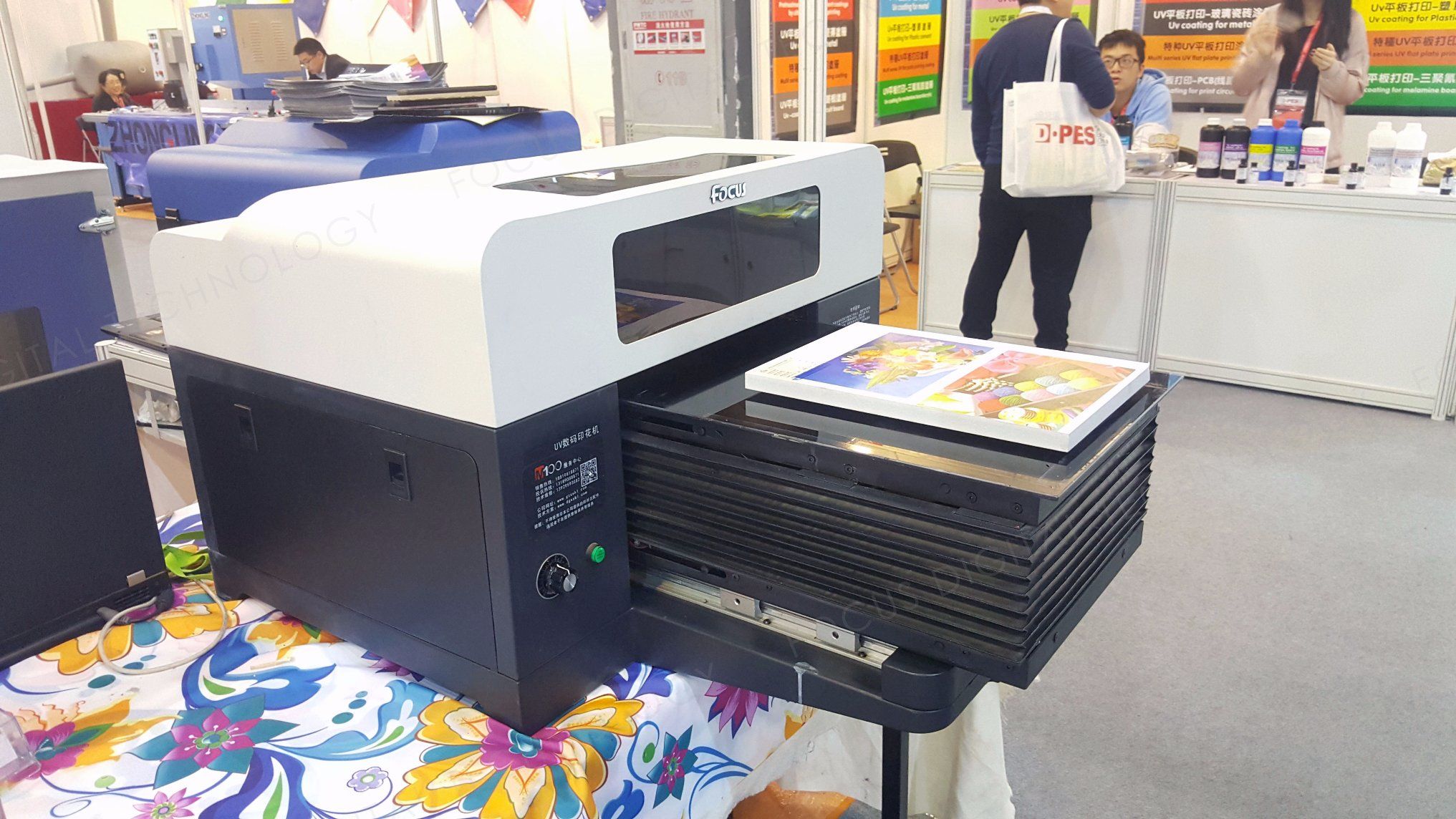

A3 Vocano-Jet Pro digital inkjet phone case card pen A3 UV printing machine.
Vocano-Jet Pro A3 size uv flatbed printing machine iphone skin printer that made by focus digital, it can print on the galss, metal, plastic, acrylic,
ceramic...etc. with vivid color and fast speed, it is really a good choice for entrel level customer or kiosk using.
it was made from R1390/1400 engine, can get max. printing speed by A4/63s, 6 color model, so can print on dak materials with CMYK+WW to
get a good white ink density. also non-chips ink system can allow you refill the ink without buy original cartridges.
A3 size uv flatbed printing machine iphone skin printer. Please check the details as following:
Speicification
| Vocano-Jet Pro A3 size uv flatbed printing machine iphone skin printer | |
| Printing size | 330mm*500mm |
| Printhead | Piezo Inkjet 1440 Nozzles technology |
| Print Color | 6Color: C,M,Y.K.LC.LM / White ink model: C,M,Y,K+W,W |
| Printing Direction | Bi-Direction / Unidirection |
| Printing Speed | 1440DPI model: A4 size/63s |
| Control pannel | Touch pannel / LCD |
| Max. height of object | 12CM |
| Max. Printing resolution | 2880DPI*1440DPI |
| Ink Tank Volume | 150ML |
| Ink | UV curing ink / Textile ink / soft uv ink / Edible ink |
| Height Adjust | Automatic/Manual Adjust |
| Printing Object Height Examine | Automatic Detecting |
| Printhead Protection | Intelligent Self Protect System |
| Power | 110-220V 50-60HZ 75W |
| Printing Interface | USB2.0/LTP |
| Operation System | Windows95,98,NT,2000,XP,MAC |
| Working Environment | 10-35 C,20-80 RH |
| Max.printing weight | 25KG |
| Printer Size | 75*65*50cm |
| Shipping Size | 82*82*72cm |
| Printer N.Weight/G.Weight | 80KG/95KG |
Video Demo:
Vocano-Jet Pro general printing video of this A3 size uv flatbed printing machine iphone skin printer:
https://www.youtube.com/watch?v=4KCCAwfR_ak
1. Newest fantastic ergonomic design with streamlining style for this A3 size uv flatbed printing machine iphone skin printer.

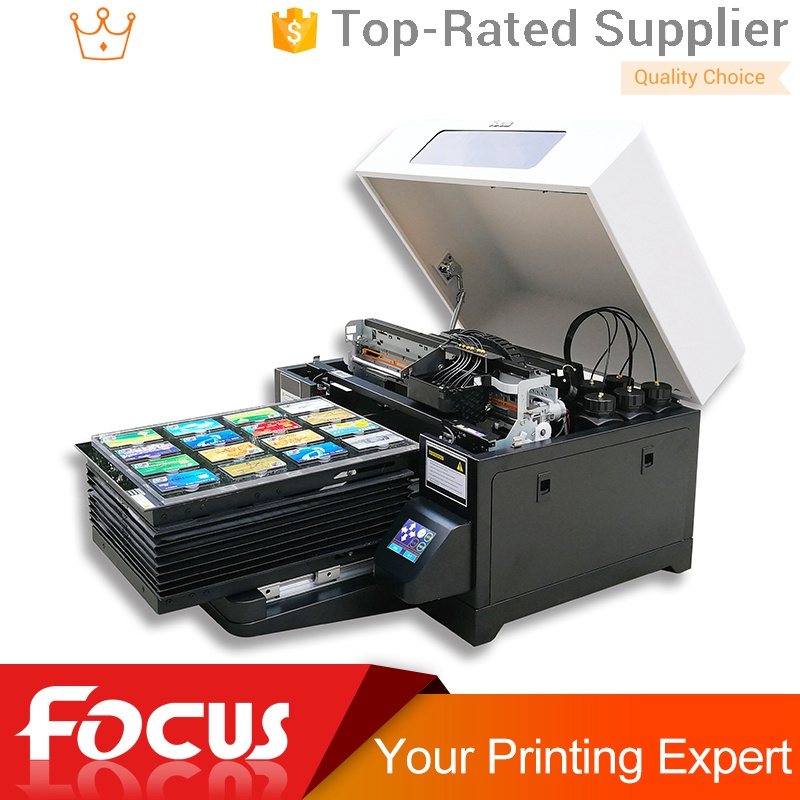

2. A3 size uv flatbed printing machine iphone skin printer has Unique Clamshell design for the top cover to make the printing and maintain
job more convinence and effective.
3. High density touch screen pannel can control the flatbed X, Y ,Z axis motion, online/offline easier.
4. A3 size uv flatbed printing machine iphone skin printer equip with Dual ball rail drive the flatbed motion with high precision.
5.Added white ink circulation system to avoid white ink settling by the high quality Peristaltic pump design.
6. The high quality degassing valve added ahead the ink damper can remove the air bubbles from the ink to avoid printing lack of ink and pass line,
White ink circulation directly outlet to the sub ink tank and ink damper can reduce white ink settling during ink damper and ink tube also,
it can prevent printing ink clog and lack ink printing to improve the printing quality and save lots of ink for head cleaning.
7. A3 size uv flatbed printing machine iphone skin printer support lots kind of printing method as one pass printing, halftone printing, white ink printing first...
8.Powerful FocusRIP 8.7.0 is the artist for raster process the image before printing, it can support variable data printing, high quality victor
processing, custom setting ink channel, 1bit/2bit/3bit/ 1.5-15PL ink dot control printing to get a good white ink density and vivid color result.
Application field:
<1>. Sign making shop
<2>. Photo studio or film development shop
<3>. Screen printing.
<4>. Garment, Textile and fabric, such as the T-shirt, flag, handkerchief, neckerchief...
<5>. Leather, shoes, clothes, crystal and other crafts & gifts industries
<6>. All kind of factories of art items with image.
A3 size uv flatbed printing machine iphone skin printer is a compliment to screen printing production and heat-transfer industries as it
can do some jobs which are very expensive or not possible with the traditional printing.
1.We provide 13month warranty and lifelong technical support since the shipping date.
2.We have completely english instruction video and manual for you.
3.We provide 2 days free online training.
4. Engineer fly to your site for final repair if needed.
Packages
Please visit here for more information of Vocano-Jet Pro A3 size uv flatbed printing machine iphone skin printer:www.focusgroup.en.alibaba.com
