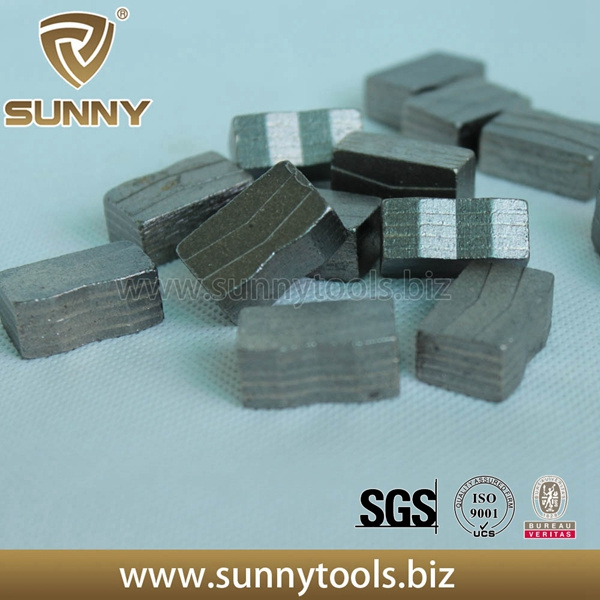

Diamond Segment for Granite Natural Stone Indian Red (ST-DS-586)

Name: Diamond Segment for Granite Natural Stone Indian Red (ST-DS-586)
Brand: china-crystals.com
SKU: 774993365
Availability: InStock
Rating: 4.4 (101 reviews)

Price:	US $ 0.3-2.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	SEGMENT(SY-DS-586)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Steel Core Thickness(mm):	2.2 - 10.0
Item:	Diamond Segment
Cutting For:	Granite, Marble, Sandstone, Limestone.
Material:	Diamond
Support:	OEM & ODM
Main Market:	America, England, Mexico, Brazil, India.
Use For:	Wet Cutting
Export Area:	Global
Welding Method:	High-Frequency
Company Website:	HTTP://Www.Sunnytools.Biz/
Manufacturing Arts:	Sinter
Usage:	Abrasive and Carving
Graininess:	Success Formula for Marble Cutting
Thickness:	Depend on Diameter
Shape:	Diamond Segment
Kind:	Diamond Segment for Cutting Marble
Brand:	Sunny
Saw Blade External Diameter:	300mm--3500mm
Specification:	300mm--3500mm Diamond Segment

Product Description

Δ Product features:
1. Cutting granite in high speed without chipping.
2. Long cutting life and stable performance.
3. Segment is very sharp, high efficiency.
4. Through the validation tested scientific formula.
5. Advanced production process for sintering.
6. Using high quality raw materials, imported cobalt powder and nickel powder, and high-quality diamond single crystals
7. Strict product quality inspection processes.

Δ Products relate key words:
Segmented cutting blade, grain cutting segment, diamond segment for marble cutting, cutting diamond segment, quarry cutting segments, cutting segments for marble, cutting granite segment, cutting segment for granite, marble cutting diamond segments, cutting basalt diamond saw blade segment, stone cutting diamond segment, diamond segment cutting tool, segments for granite block cutting, cutting blade segment.
[2013-08-03-1]

Small diameter (300 – 800 mm) diamond circular saw blade segments for cutting
Diameter	Inch	Core Thickness	Segment Size	Segment Number	Silent/non silent	Weld Technology
mm		mm	mm	pcs
φ300	12"	2.2/2.0	40x3.0/2.8x8(10)(12)(15)	21	Silent/non silent	Laser/High Frequency
φ350	14"	2.2/2.4	40x3.0/3.2x8(10)(12)(15)(20)	24	Silent/non silent	Laser/High Frequency
φ400	16"	2.6/2.8	40x3.4/3.6/3.8x8(10)(12)(15)(20)	28	Silent/non silent	Laser/High Frequency
φ450	18"	2.8/3.0	40x4.0/4.2x8(10)(12)(15)(20)	32	Silent/non silent	Laser/High Frequency
φ500	20"	2.8/3.0	40x4.0/4.2x8(10)(12)(15)(20)	36	Silent/non silent	Laser/High Frequency
φ600	24"	3.6	40x4.6x8(10)(12)(15)(20)	42	Silent/non silent	Laser/High Frequency
φ700	28"	4	40x5.2x8(10)(12)(15)(20)	42	Silent/non silent	Laser/High Frequency
φ800	32"	4.5	40x6.0x8(10)(12)(15)(20)	46/57	Silent/non silent	Laser/High Frequency
Big diameter (900 – 3500 mm) diamond circular saw blade segments for cutting
Diameter	Inch	Core Thickness	Segment Size	Segment Number	Silent/non silent	Weld Technology
mm		mm	mm	pcs
φ900	36"	5	24x6.6/6.0x10(12) (15)(20)	64	Non	High Frequency
φ1000	40"	5.5	24x7.0/6.4x10(12) (15)(20)	70	Non	High Frequency
φ1200	48"	6	24x8.0/7.4x10(12) (15)(20)	80	Non	High Frequency
φ1300	50"	6.5	24x8.4/7.8x10(12) (15)(20)	88	Non	High Frequency
φ1600	64"	7.2	24x9.0/8.4x10(12) (15)(20)	108	Non	High Frequency
φ1800	72"	8	24x9.8/9.2x10(12) (15)(20)	120	Non	High Frequency
φ2000	80"	8	24x10.5/9.5x10(12)(15)(20)	128	Non	High Frequency
φ2200	88"	9	24x11.5/10.5x(15)(20)	132	Non	High Frequency
φ2500	110"	9	24x12.5/11.5x(15)(20)	140	Non	High Frequency
φ3000	120"	10	24x13.5/12.5x(15)(20)	160	Non	High Frequency
φ3500	140"	10	24x14.5/13.5x15 (20)	180	Non	High Frequency

QUANZHOU SUNNY SUPERHARD TOOLS Co., Ltd is a professional and Dynamic Diamond Tools manufacturer, established in 1993, Located in Quanzhou, Fujian province, China, factory covering 15000 square meters. Our technical department is composed of experienced professors and engineers. We devote ourselves to researching and manufacturing cutting and processing Diamond tools for nature stone and building materials. Our tools are exported to more than 60 countries, including America, Brazil, Italy, Russia, Ukraine, India, Egypt, South Africa etc.

Main Products:

Cutting Tools (Saw blade, Segment, Wire saw etc)

Grinding&Polishing Tools (Calibration Rollers, Fickerts, Frankfurt, Cup wheel, Profilling wheel, Polishing pad, brush etc)

Drilling Tools (Finger Bit, Core drill etc)

The Philosophy of Sunny is "Superior product and service derived from standard and efficWe have a high efficiency team, each department strictly comply with company regulations.

From receiving your enquiry, put order in production and Dispatch to after-sales service, Ient management. "

In order to provide customer most suitable tools, we keep researching and analysing nature stone and engineering material. We cooperate with stone factory to test tools, and keep close contact with our customers by visit or communication to get knowledge of market demand.

We Response All Your Request efficiently To Save Your Time And Provide Your Utmost Convenience.

The deep understanding for customer's demand and strict quality control help us developing quickly, we wish to get your collaboration to achieve our objectives together!

Our aim is to provide our clients stable and consistant quality with competitive price.

Advantages enable clients benefits from our tools.

1. Experienced bond system

2. Advanced equipment and high grade raw material

3. Strictly production procedures control and quality inspection.

4. Customer's active feedback and support help us developing fast.
