Product Specifications
| Prod Model: |
DW960 |
| Laser Power: |
60W/80W/100W/130W/150W for Your Reference |
| Machine Application: |
Non Metal, Such as Wood, Acrylic, MDF, Leather etc |
| Machine Warranty: |
18 Months |
| Cutting Thickness: |
0-30mm |
| Graphic Format Supported: |
Ai, BMP, Dst, Dwg, Dxf |
| Control Configuration: |
Redcam |
| Guide Rail: |
Taiwin Hiwin Square Rail |
| Table: |
Honey Nest or Blade Table |
| Machine Package: |
Veneer Case |
| Certification: |
Ce, FDA |
Product Description

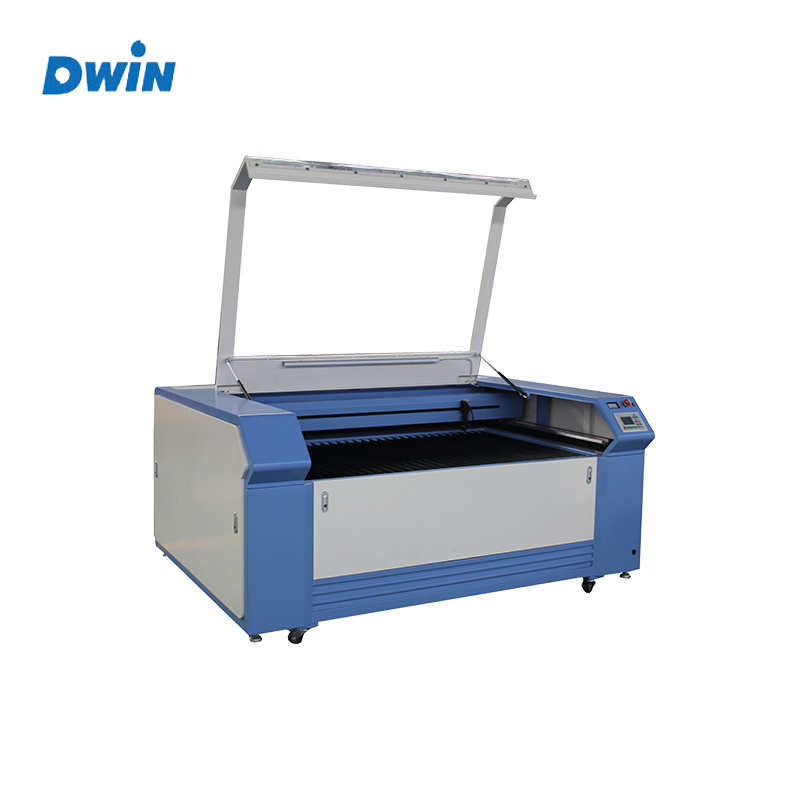

Desktop CO2 Granite Stone Wood Laser Cutting Engraving Machines for Sale
Product Overview:
Machine Feature
- Rapid cutting function for curved lines:any curved line can be cut successively and rapidly;running path of laser heads is like beautiful arc lines produced by the greatest racing cars.
- Design software of CAD,CORELDRAW,PHOTOSHOP are all supported for friendly human-computer interface and demand of the industries on-the-spot.
- Multi-file function:this serise machine can store 256 working files for users to choose needed files on the engraving machine under condition of off-line so that mass production of 256 different products can be realized easily.
- Signales do not have change and anti-disturbance ability is strong during long distance transportation when whole light segrating system coorpetating with high speed differential input and output circuit design which has 12 working state for output and working state for input to adapt to processing on-the spot.
- Cutting surface is smooth and precise during large area laser cutting for cutting and engraving demand of various customers and industries.
- Stable light path,industrial chiller to make sure the same output laser power from every site of working platform,high speed and efficiency,stable processing quality.
- This kind of machine is applied in craft and gifts,packaging and printing,stone,wood furniture,toys,electron,model,paper products,building decoration,etc.
Applicable materials:
Laser cutting machine is for Non-metal materials such as double color board, acrylic glass, bamboo and wood, rubber, marble, granite and tiles, leather etc
Applicable industry:
Co2 laser engraving machine is for billboards, artistic gifts, crystal ornaments, paper-cut, bamboo and wooden product, garment and leather, embroidery, decoration and upholster industry etc
Machine Parameter
| 1 | Model | DW960 laser engraving machine used |
| 2 | Working area | 90cm*60cm / 35in*24in (L*W) |
| 3 | Laser power | 40W/60W/80W |
4 | Laser type | CO2 sealed laser tube,water-cooled |
| 5 | Engraving speed | 0-60000mm/min |
| 6 | Cutting speed | 0-10000mm/min |
| 7 | Power supply | 220V±10% /50HZ , 110V±10%//60HZ |
| 8 | Min. shaping character | Letter 1.0 x 1.0mm |
| 9 | Graphic format supported | BMP, PLT, DST, DXF, AI,CDR |
| 10 | Software supported | CorelDraw, PhotoShop, AutoCAD |
| 11 | Laser Output Control | 1-100% software setting |
| 12 | Highest Scanning Precision | 2500DPI |
| 13 | Resolution ratio | < 0.01mm |
| 14 | Location precision | <0.01mm |
| 15 | Working temperature | 5°C-40°C |
| 16 | Operating humidity | 5%-95%(without condensed water) |
| 17 | Equipment Dimension | 1420mm*1100mm*1070mm/57in*43in*42in (L*W*H) |
| 18 | Net Weight | 300kg |
| 19 | Optional parts | Up-down worktable, Red light pointer, Auto focus, Rotary device |
Jinan Dwin Technology Co., Ltd. is a high-tech enterprise that is engaged in the research, manufacture and sale of laser machines, laser engraving and cutting machine, laser marking machine, CNC routers and relevant advertisement products. Dwin has gained CE, FDA and ISO certifications. Our company has successfully produced DW series of products which enjoy a good reputation. Excellent quality and fast service make our products spread over Europe, America, the Middle East and Southeast Asia.
Dwin mainly produces laser engraving machines, laser cutting machines, laser marking machines, Advertisement CNC routers, marble CNC routers and CNC woodworking machines.
Dwin machines are widely used in garment cutting, craftwork, rubber plate, package printing, leather cutting, sign marking, wood furniture, construction, decoration, stone engraving and mould making. Dwin CNC machines have greatly improved the efficiency of relevant industries and the quality of relevant products.
Dwin constantly pursues the philosophy of "technical innovation, cooperation and all win", together with you for a brilliant future. We are sincerely looking forward to continuous instruction and support from our clients.
