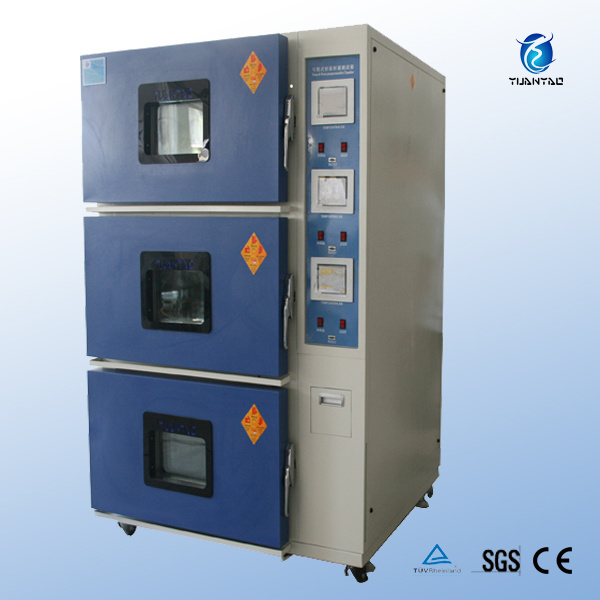

Customization Three Layers Programmable Temperature & Humidity Chamber

Product Specifications

Prod Model:	YTHG-072-(+10)-2P
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Inner Chamber Size(Wxhxd Mm):	400*400*450
External Chamber Size(Wxhxd Mm):	1060*1760*780
Temp. Range:	+10 Degrees to 100 Degrees
Humi. Range:	30%-90%Rh
Inspection:	in House
Volume:	72L
Temp. Humi. Fluctuation:	+/-0.2degree, +/-0.5%Rh
Heat Up Time:	30mins
Cooling Down Time:	40mins
Power:	AC 1 Phase 220V, 3 Phase 380V
Type:	Universal Testing Machine
Weight:	100-500Kg
Power Source:	AC220V
Maxcapacity:	N/a
Control:	Controller
Oil Cylinder Position:	N/a

Product Description

Customization Three Layers Programmable Temperature & Humidity Chamber

Customization Three Layers Programmable Temperature & Humidity Chamber is used to test the materials in heat&cold resistance, dry and moisture-resistance. It is applied in electronic, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, medical care and so on.


Features

1) The testing machine is mainly used in testing the adaptability of electronics, electrical appliances, food, automobile, rubber and plastic, metal and other products, parts and materials in the high and low temperature alternating hot and humid environment when storage, transport and using;
2) It is an reliable test equipment for all kinds of electronic, electrical, electronics, plastics raw materials and devices to do testing such as cold, heat, moisture, resistance to dry and the quality control;
3) Especially suitable for optical fiber, LCD, crystal, inductor, PCB, batteries, computers, mobile phones, rubber, plastics and other product.


Please see below table to know the detail specifiaction.

Model				YTHS-072-(+10)-2P	YTHS-162-(+10)-2P
Internal Dim.W×H×D(mm)				400×400×450	600×450×600
External Dim.W×H×D(mm)				1060×1760×780	1260×1910×830
Temperature Range				+10ºC~+100ºC
Humidity Range				30%HR  ~90%HR
Ferformance		Temp.&Humi,Constancy		±0.3ºC;±1.0%RH
		Temp.&Humi,Constancy		±1.5ºC;±3.0%RH
		Indication Resolution		0.1ºC;0.1%RH
		Heat-up Time( min.)		30
		Pull-down Time( min.)		40
Material		Exterior		Stainless steel piate+Powder Coated
		Interior		SUS#304 stainless steel piate
		Insulation		PU & Fiberglass wool
Systems		Cirulation		Siroco fan
		Heating		SUS#304 stainless steel high-speed heater
		Humidifying		Surface evaporating system
		Cooling		Airtight compressor+vaporator fins+air-cooling condenser
		ehumidifying		ADP Critical dewpoint cooling/dehumidifying method
		Controller		Digital electronic indicators+S.S.R.With PID automatic calculation capabilty
Other Components				Vacuum glass inspection windown,50mm cable port, control status indicator lights, chamber lamp, 2 pcs, adjustable loading shelves
Sevey Devices				Overheating prevention circuit-breaker,compressor overload protectin,control system overload protection,humidifying system overheading drying out prevention,breakdown indicator light
Power Source[K.W.]				AC 1Ψ 220V, 3 phase 380V 60/50Hz

Except Three Layer Temperature Humidity Chamber, Dongguan Yuanyao Electronics Technology Co., Ltd also can supply following products:

Walk-in/drive -in temperature humidity test room, thermal shock test chamber(air type and liquid type), high temperature aging oven, rain/water resistance test chamber, dust resistance test chamber, universal materials test machine, salt spray test chamber, etc.

Any questions/help, please feel free to contact me, thanks!
