Crystal Transparent Photovoltaic Glass for Solar Panel

Name: Crystal Transparent Photovoltaic Glass for Solar Panel
Brand: china-crystals.com
SKU: 708743492
Availability: InStock
Rating: 5 (66 reviews)

Price:	US $ 3.9-4.3/Square Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	300/Square Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	3.2mm
Markets:	Southeast Asia,Africa,Mid East,Eastern Asia
Brand:	Huamei
Maximum Size:	1200*2200mm
Thickness:	3.2mm,4.0mm
Solar Transmittance:	Over 93.5%
Iron Content:	Less Than 0.012%
Application:	Solar Panel
Shape:	Flat
Appearance:	Flat Tempered
Standard:	GB15763.2-2005
Steel Degree:	Super-Tempered Glass
Fragment State:	Ⅲ
Technics:	Physically Tempered
Flatness:	High Class
Thickness Of Flat Tempered Glass:	3.2mm
Usage:	Solar Panel

Product Description

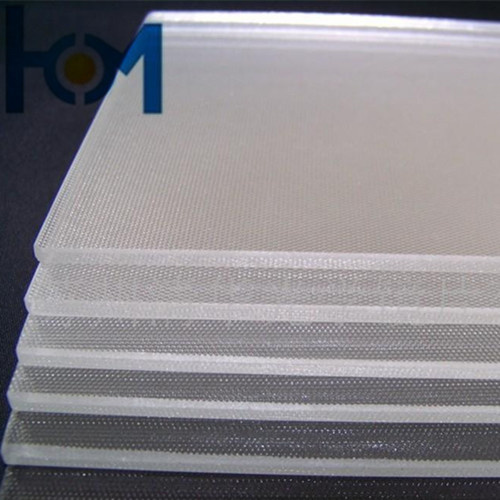

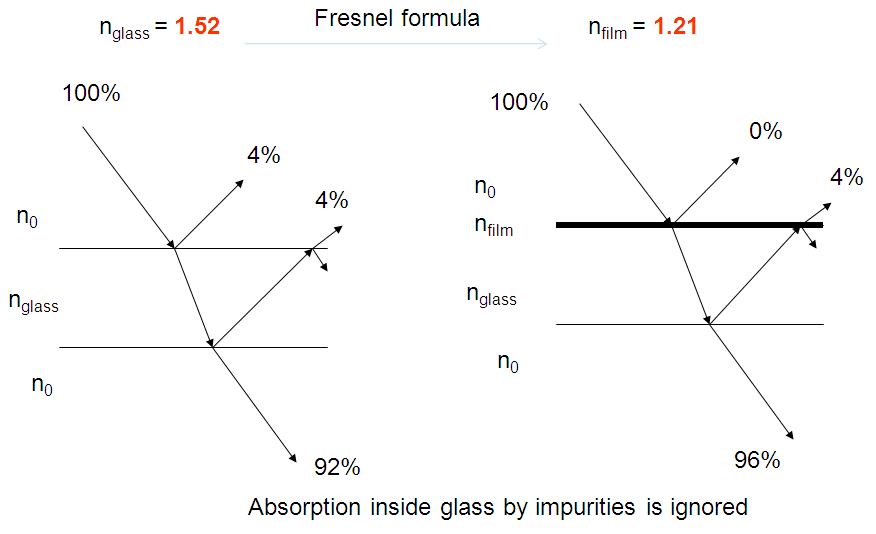

Crystal Transparent Photovoltaic Glass for Solar Panel, combined with nanometer anti-reflective coating technology,increase solar transmittance by way of decreasing light reflectance and improve the solar cell phtotelectric conversion efficiency.Meanwhile,it reduces the reflected glare of the glass and the pollution caused by the reflectance to the environment. The hydrophobic behavior of the AR coating could in some degree protect the dust and dirt from shading the light and improve the cleaning performance of the glass. With the outstanding characteristics of the high solar lights transmittance, the low reflectance, the low iron, the high mechanical strenght and the high flatness, it is one of the indispensable important parts of solar cell and has been widely used to photovoltaic power generation all over the world.

Products	Crystal Transparent Photovoltaic Glass for Solar Panel
Thickness	3.2mm,4.0mm
Size	Can be customized,maximum size:1200*2200mm
Solar transmittance	3.2mm>93.5%,with AR coating
Applications	For solar cell module
Payment terms	T/T
Delivery	Within 15 days after receiving the deposit
MOQ	500 sqm
Port	Shanghai

Features of our Crystal Transparent Photovoltaic Glass for Solar Panel:
1.     High solar lights transmittance
2.     The low reflectance: visible light reflectance is less than 7.30%
3.     Low iron:glass has only 0.012% of iron content;
4.     High intensity,the strength is 3-5 times of ordinary annealed glass
5.     Wind pressure resistance: the wind pressure resistance is 1.5-3 times of ordinary annealed glass;
6.     Heat shock resistance: the heat shock resistance is 3 times of ordinary annealed glass;
7.     Safety:if it is broken, it usually breaks into relatively small pieces, which are less likely to cause serious injury.

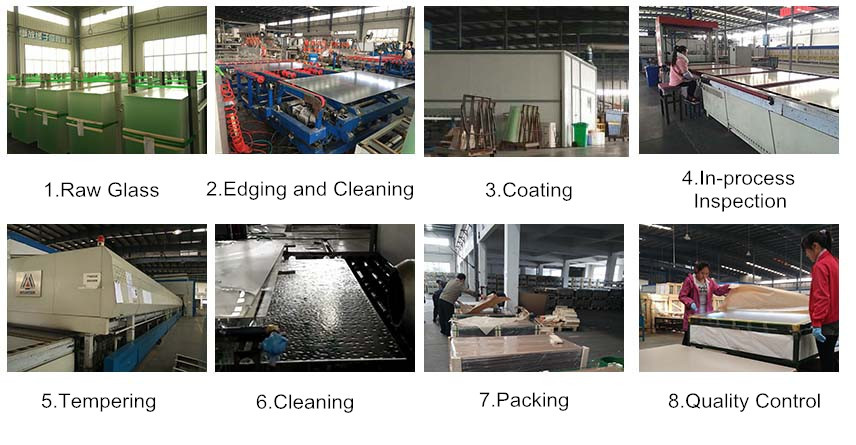

Production process:

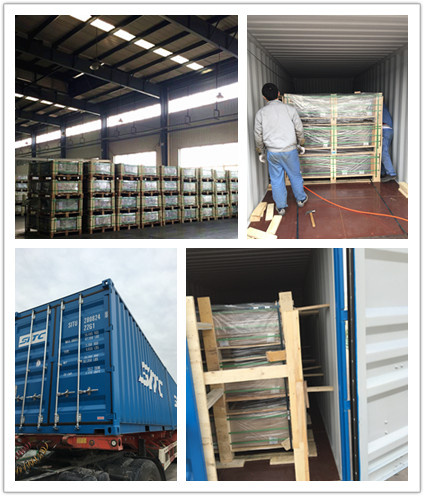

Packing:

Our service:

1.Reply your inquiry in 24 working hours.

2.Customized design is avaliable ,OEM is welcome .

3.Delivery the goods to our customer all over the world with speed and precision.

4.Offer customer the products with good quality and competitive price.

Huamei Group is one of the earliest and most professional manufacture enterprise of glass for solar cell module.

It has 4 subsidiaries:

Beijing Dazheng Huamei Science and Technology Co., Ltd(2003).

Shanghai Jingzheng New Materials Science and Technology Co., Ltd(2005).

Henan Huamei New Materials Technology Co., Ltd(2008).

Changzhou Huamei Photovoltaic Materials Co., Ltd(2009).

Changzhou Huamei Photovoltaic Materials Co., Ltd Zhangpu Branch(2014)

Huamei Group supply 20000000sqm soalr glass for the market every year.

Huamei has a perfect system of R&D (3000 glass for solar cell module R&D Center), the technology level in the field of glass for solar cell module is in the forefront in China. Huamei apply 14 national patents one after another, 6 of the patents has been obtained letter of patents. The annual production can reach to 8 million. In the solar PV industry, we establish a long-ter strategic cooperative partnership with many well-known domestic and foreigh PV enterprises, for example, Trina solar, JA Solar, and GCL.

Adhering to the enterprise spirit of "efficient, precise, pragmatic, progressive", Huamei will provide excellent product quality and excellent after-sales service. And Huamei will create a better future for the development of renewable energy together with other well-known domestic and foreign PV enterprises in the area of green energy.
